WING DECK INSTALLATION

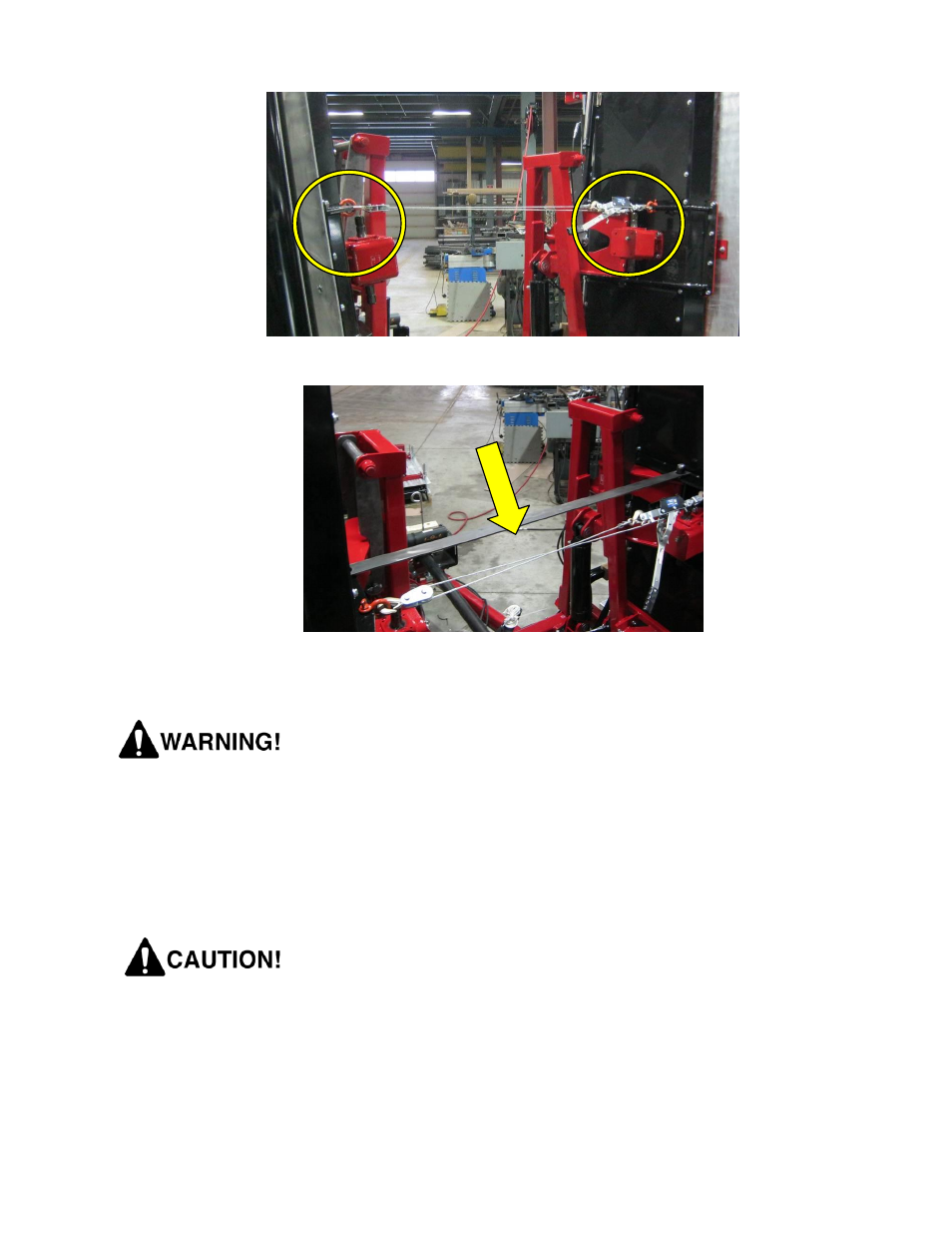

2. With the TDR Spreader Fixture (526498) in place, attach a ratchet equipped
strap between both wing decks using the points shown
.
3. Tighten the device until enough tension is relieved from the shipping brace
bar. Remove the wire securing the flat bar to the wing, and the flat bar itself.
Be sure to stay clear of the each wing deck as you loosen the
ratchet strap. The top of each deck will quickly swing outwards
from the machine once tension is released from the strap.
4. Connect the mower to a hydraulic supply. Retract the hydraulic cylinders and
release the deck locks. Lower all decks until they are fully resting on the
ground. Remove each pin and shipping link on each side of the deck swivel.
Never retract the wing cylinders into the lift and turn position
when the decks are not attached to the wings. You will damage
the wing and lock components, the force the cylinders supply is
too great without the counterweight of the decks.
5. Remove the wooden shipping blocks from the four stand-off arms.
Shipping
Brace Bar
