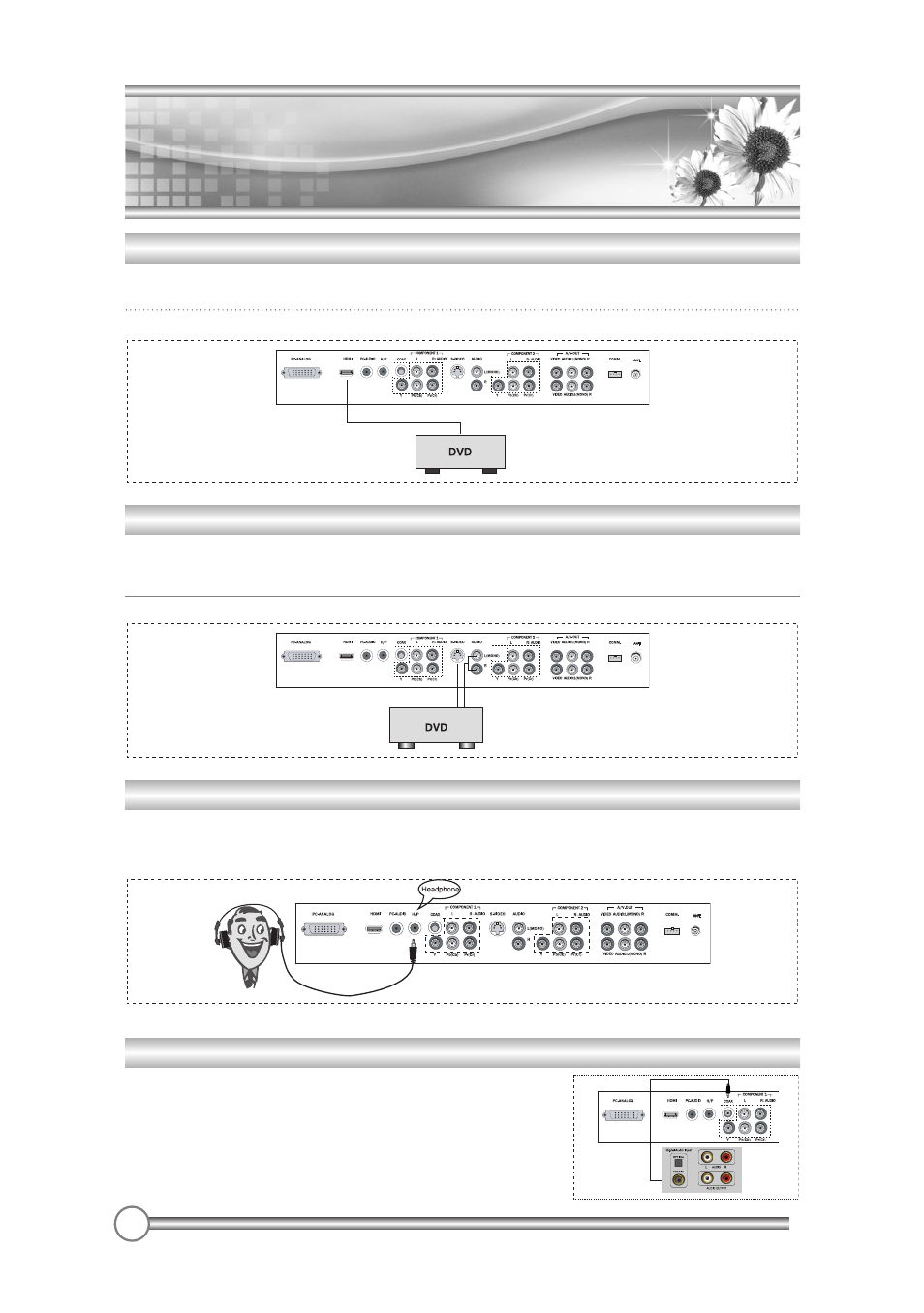

38

External
Equipment Connection

External
Equipment Connection

Headphone jack

Insert the headphone plug to the headphone jack on the TV.
You can listen to the sound through the headphone; no sound from the speaker on the TV.
To adjust the headphone volume, use the Headphone menu in the Sound menu.

S-VIDEO IN

If the optional equipment you are connecting has an S-VIDEO jack, you can use an S-VIDEO
cable for improved picture quality(compared to an A/V cable). Because S-VIDEO carries only the
video signal, you also need to connect COMPONENT Audio cable for sound.

The VCR playback picture appears on the screen.

Connecting to HDMI (High Definition Multimedia Interface)

1 Connect an HDMI cable between the “HDMI IN” jack on the TV and the HDMI OUT jack on

the set-top box. Please check that the HDMI source is powered on.

2 Press the TV/AV button to select HDMI mode.

Coaxial OUT

You can use the TV’s DIGITAL AUDIO (Coaxial) OUT jack to
connect a digital audio device.
Use an coaxial audio cable to connect the device’s COAXIAL IN
jack to the TV’s DIGITAL AUDIO(COAXIAL) OUT jack.
