Controls Controls
1. PC ANALOG IN (D-SUB)
2. HDMI (High Definition Multimedia Interface) IN
Connect to the HDMI jack for device with HDMI output.
3. PC AUDIO IN
Connect the audio cable from the PC to the PC AUDIO IN of the set.
4. H/P (Headphone out)
Connect a headphone to this socket.
5. Coaxial OUT
Connect the coaxial audio cable from the digital audio device to the Coaxial OUT of the set.
6. COMPONENT1 IN
Connect the COMPONENT1 audio/video output sockets of the DTV set top box to the
COMPONENT audio/video Input sockets of the set.
7. S-VIDEO IN
Connect the output of an S -VIDEO VCR to the S-VIDEO input.
Connect the S -VIDEO Audio cable for sound.
8. COMPONENT2 IN
Connect the COMPONENT2 audio/video output sockets of the DTV set top box to the
COMPONENT audio/video Input sockets of the set.
9. A/V-IN
Connect the Audio/Video outputs of external equipment to these inputs.
10. A/V-OUT
Connect the Audio/Video inputs of external equipment to these outputs.
11. COMM.
Communicaton port.
12. ANT.

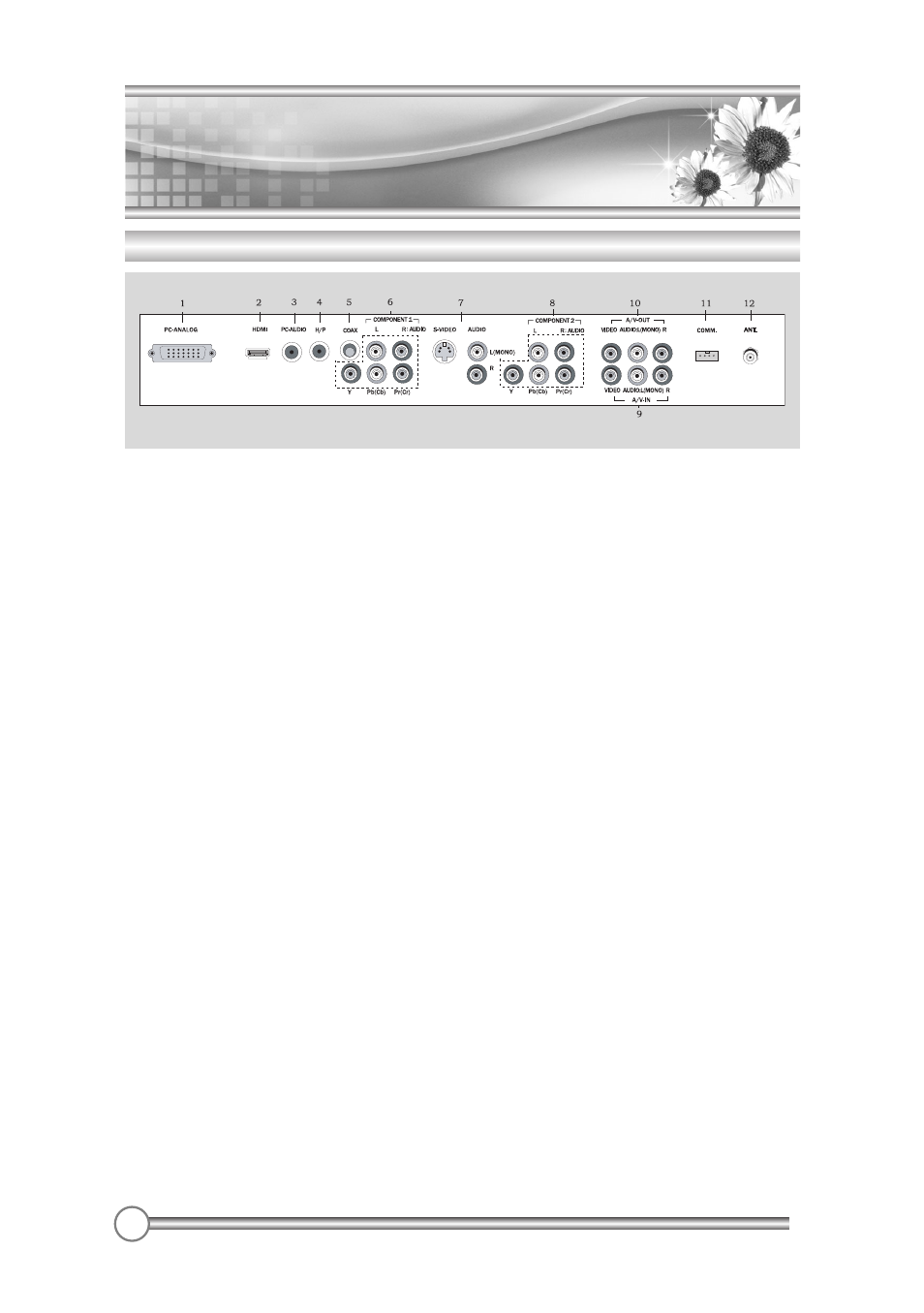

Rear Panel
