OLP

Three Phase UPS Systems

6.0

Example 1:

If two contacts for BACK-UP are required. Switch on SWR2-6 & SWR2-8, then
both CNR19 & CNR15 will close when the unit goes to back-up.

Example 2:

If one contact for OVL & FAULT is required. Switch on SWR2-2 & SWR2-3,
then the CNR15 will close when either OVL or FAULT condition happens. Of
course CNR17 will close when OVL happens and CNR13 will close when FAULT

happens.

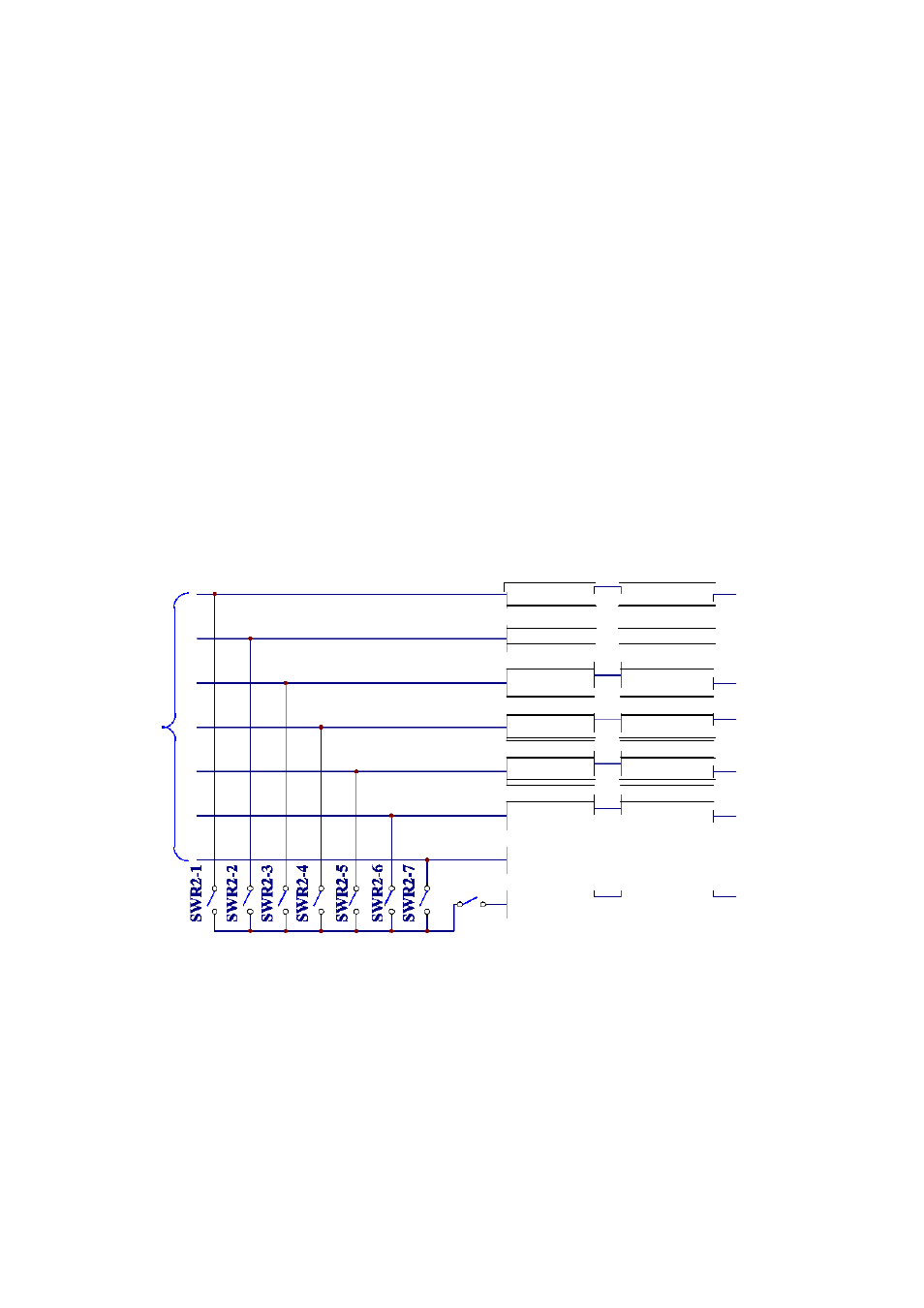

RELAY

CNR12

CNR17

CNR13

CNR16

CNR14

CNR19

CNR20

CNR15

INVON

SWR2-DIP SWITCH ON 3R PCB

OVL

FAULT

BYPASS

BACK-U

BATL

COM

INTERNAL

CIRCUIT

SWR2-8

6-3
