OnLine Power Protector 3 - Manual (Page 51)

OnLine Power
6-12
6.18.5
GMS- Remote Dial UP Monitor 2000: p/n 9100-1468-02
Remote Dial Up: Data, Voice, Fax, Pager, PC, E-mail, Event Log, Stats.
For details of all fuctions and operation refer to User's Manual, 6002-1770.
6.18.5.1 Description
Monitor 2000 requires a phone line for remote operation. It comes with an interface PCB, that
provides monitor inputs with isolated signals from the unit. The option comes wired and fully
functional. For local PC communication, you must connect your computer serial port to the 2000
RS232 data communication port.

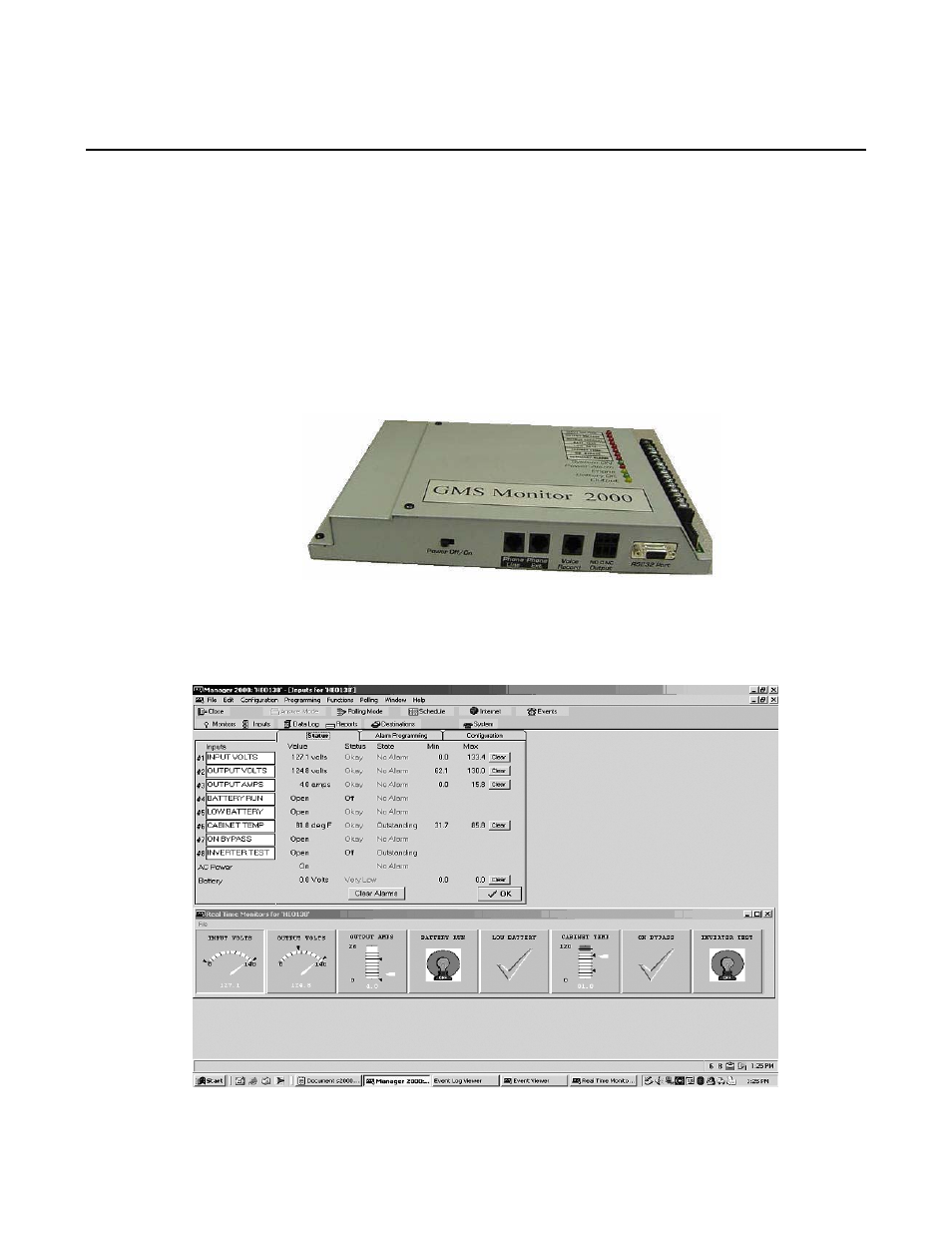

ILLUSTRATION 6-9: MONITOR 2000 FRONT VIEW
The Manager 2000 Windows setup program makes installation quick and easy. Picture below is an
actual Manager 2000 screen.
ILLUSTRATION 6-10: MANAGER 2000 SCREEN
