Page 1
ME38-ODV-2 Homefire
Part No. XG0123
Installation
Installing the Log Set
Installing the Logs:
The ME38-ODV-2 is supplied with six ceramic fibre logs. Unpack the
logs and handle them very carefully.
1. Remove the door cover and the glass door.
2. Place the Back log onto the back log rest as shown below in
figure 24a. The log has lip on the bottom which fits into the slot
on the log rest.

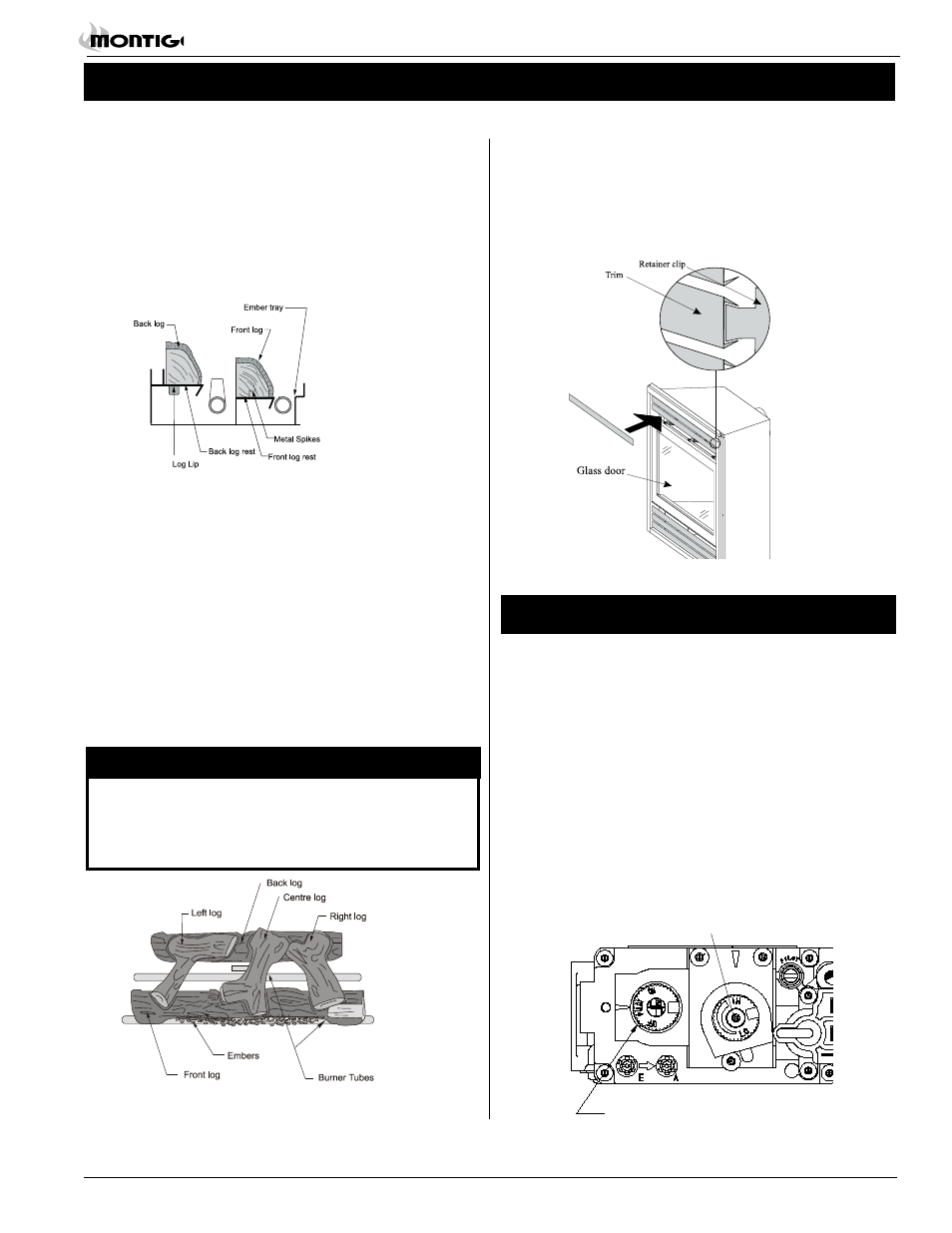

Figure 24a. Positioning for the front and back logs.
Log 'D'
Log 'E'
Log 'A'
3. Place the Front log onto the front log rest as shown in figure 24a.
Center the log from side to side, and push it against the back of
the log rest. Carefully push the log onto the metal spikes on the
log rest.
4. Place the top logs in position as shown in figure 24b.
5. Start the fireplace. If the flame appears satisfactory, replace the
glass door and door cover.
NOTES :
 If logs are not placed properly, excessive sooting will result.
 The surface of the logs will crack due to the heat from the
flames. This is a normal occurance.
Log 'C' Log 'B'
Figure 24b. Proper log placement . (No embers on ME38-ODV2)
Figure 25. Installing the horizontal trim pieces.
Installing the Trim
The fireplace is shipped with 6 horizontal trim pieces (3 upper and 3
lower), which must be field-installed.
Install the trim by placing the top edge of the trim over to the retainer
clips on either side of the fireplace. Push the bottom edge firmly
inwards and the trim will snap on.
(See figure 25)
Operation
Lighting Instructions
It is recommended that the burner is inspected each time beforeusing
this appliance. See page 14.
Burner Adjustment
The ME38-ODV-2 fireplace is equipped with an adjustable burner,
allowing you to raise or lower the flames. Operating the control knob
as described below will adjust both the main burner and the ember
burner.
 To raise the flame height, turn the black knob (located behind the
lower trim) counterclockwise.
 To lower the flame height, turn clockwise.
Gas Control Knob
(Shown in "Pilot" postion.)
'Hi-Lo' Adjustment Knob
Figure 26. 'Hi-Lo' Adjustment on the ME38-ODV-2's gas valve.
