Installation
Page 3
XT0014 - 092214
6. Plug in the Fan Harness Power cord to DRB001 "FAN PLUG"
7. Plug the 2-pin molex connectors on the other end of the harness
to the connectors from both fans. Note: the left or right fan can be
plugged into either plug.

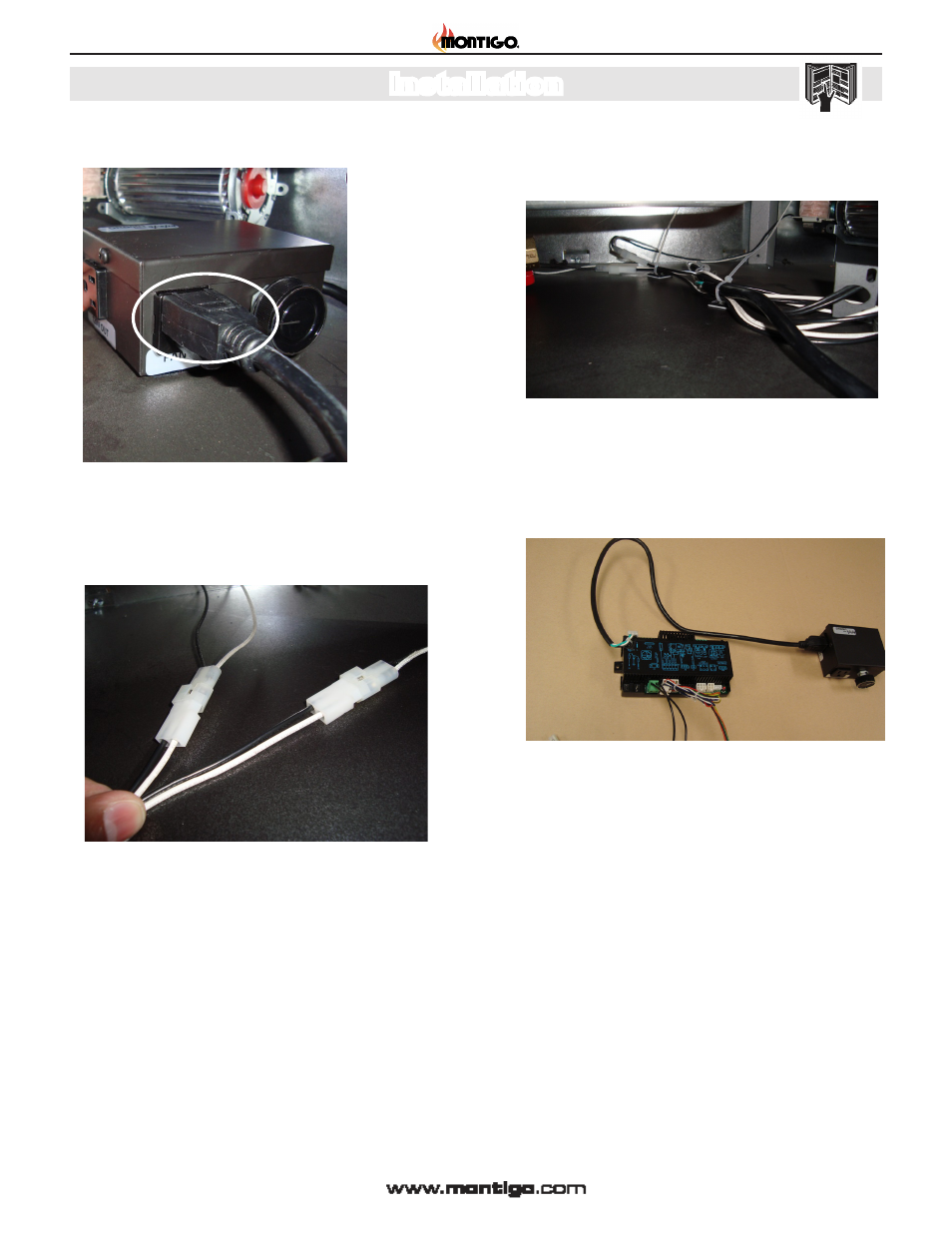

Figure 8
Figure 9
8. Using the supplied cable ties and self-adhesive cable tie mounts,
secure the fan harness to the bottom of the firebox. Make sure to
keep the wires away from fan blades and door buckles.
Figure 10
Figure 11 Fireplace power cord Proflame 2 System
9. Plug in the power cord from the fireplace to the Dual Receptacle
box "120 Volt Out" Plug (labeled). See "Figure 12 Fireplace power
cord Proflame 2 System" on page 3.
