4. Operation
4-1

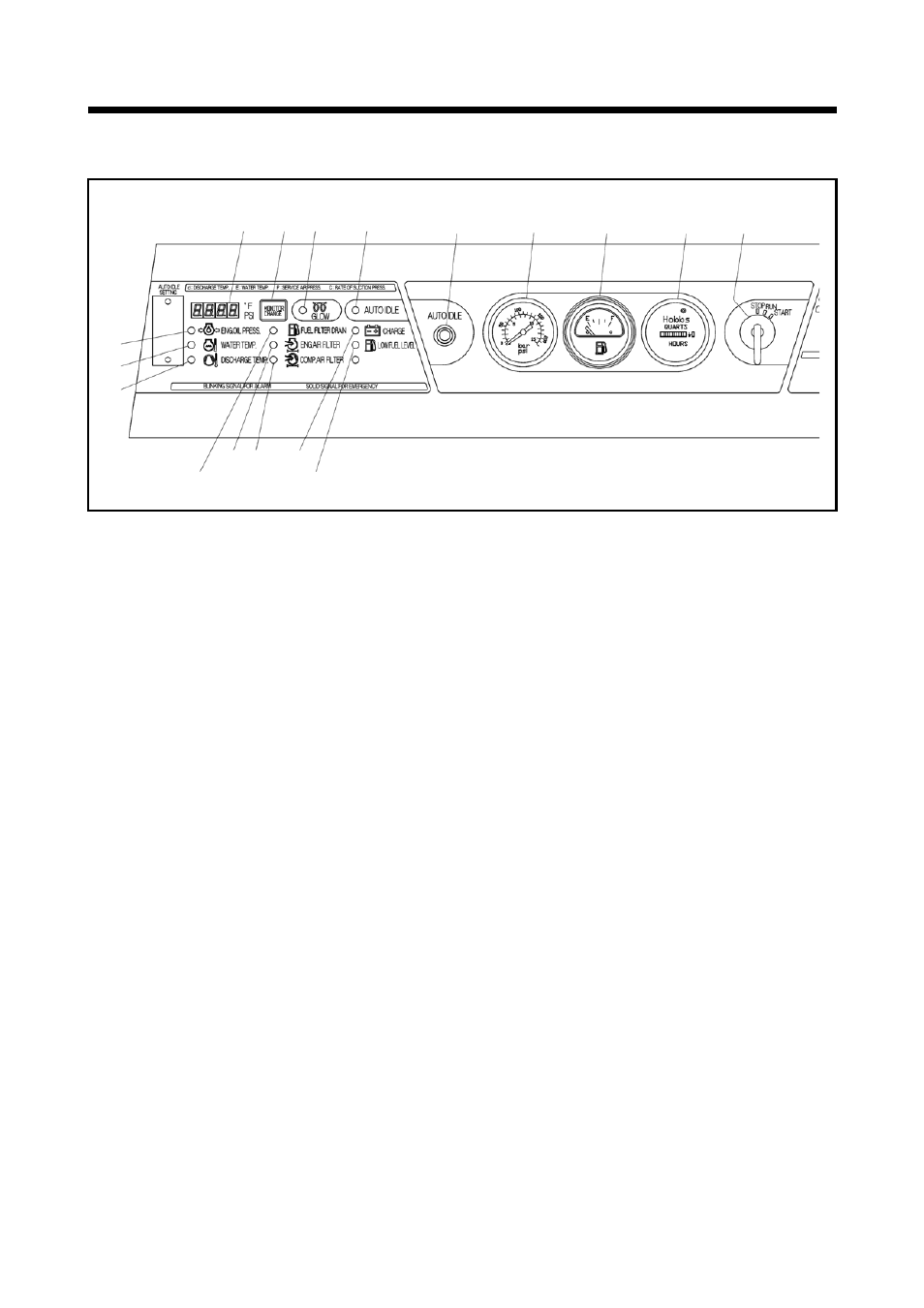

4.1 Instrument panel
1. Digital ｍonitor indicator (temperature/pressure)
2. Selector switch fordigital monitor indication
3. Auto idle switch
4. Discharge air pressure
5. Fuel level gauge
6. Hour meter
7. Starter switch
＜ Indicator lamp＞
8. Glow
9.Auto idle
＜ Warning lamp＞
10. Charge
11.
Compressor air filter clogging
12. Engine air filter clogging
＜ Emergency stop lamp＞
13. Low fuel level
14. Fuel filter drain
15. Discharge air temperature
16. Water temperature
17. Engine oil pressure
1 2 8 9 3 4 5 6 7
12 11 10
14 13
17
16
15
A070178
