Installing the software, Installing the usb-4302, Connecting the board for i/o operations – Measurement Computing USB-4302 User Manual

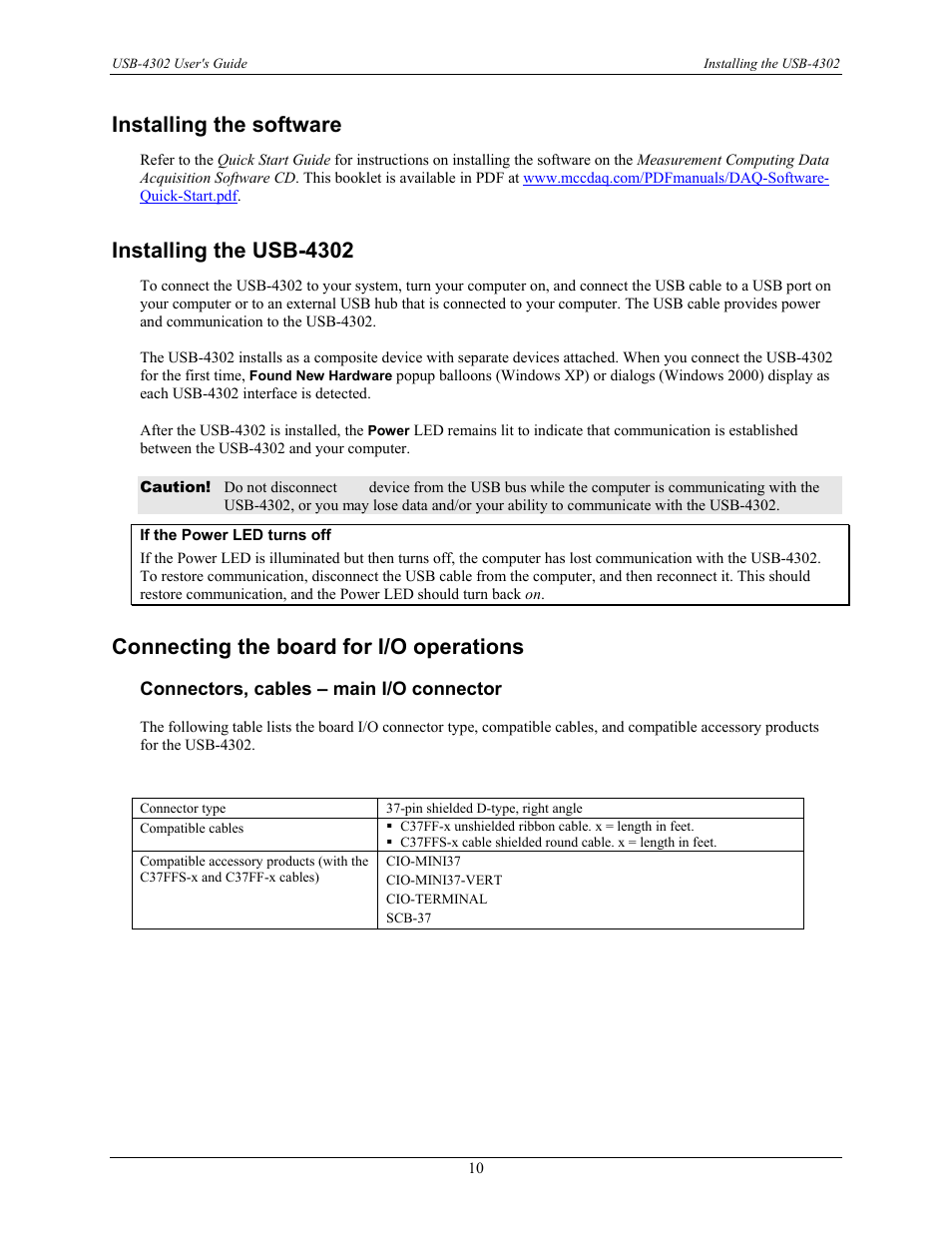

Page 10: Connectors, cables – main i/o connector
