Exercise: Acquiring, displaying, and writing analog data
10

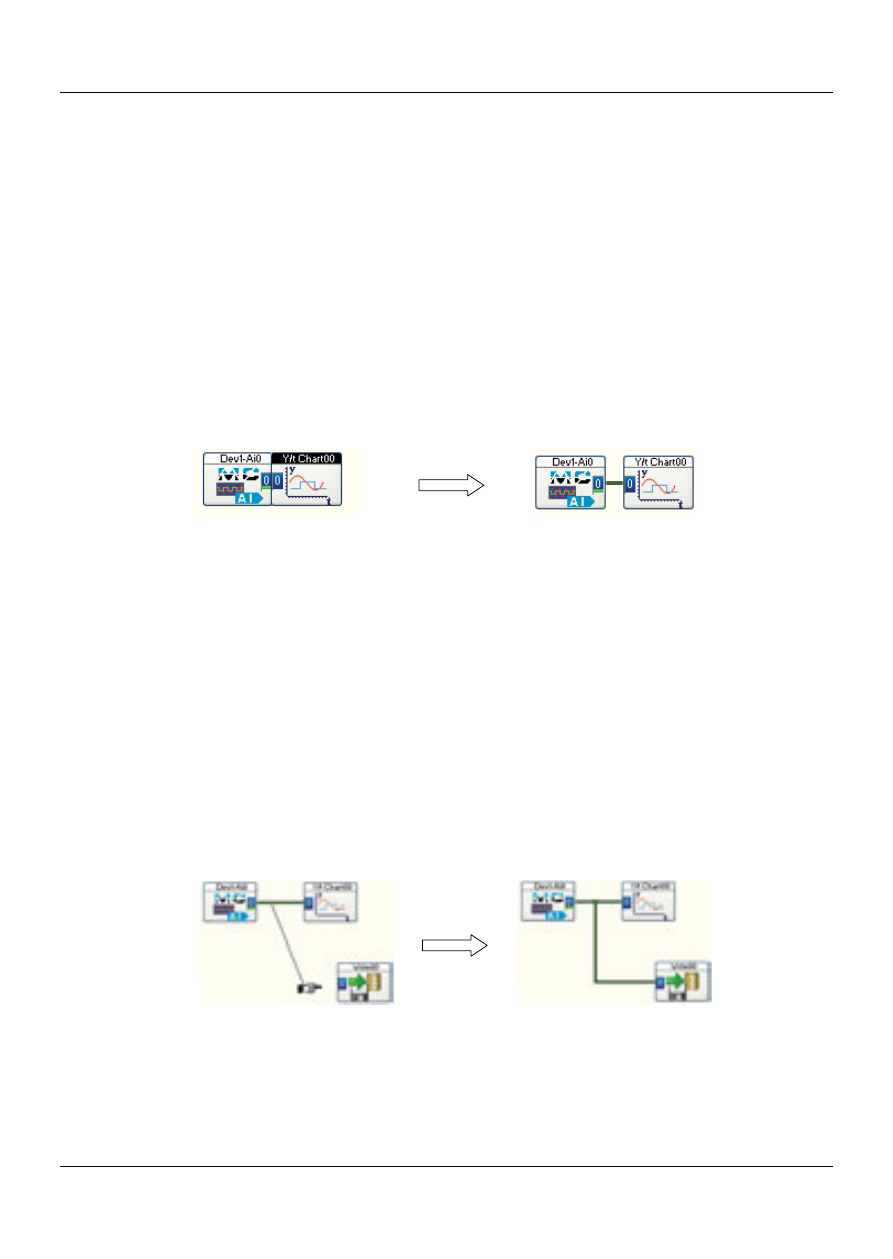

Add a Y/t Chart module
You can use a display module such as a Y/t Chart module to display the
signals acquired by the MCC device. To add a Y/t Chart module, complete
the following steps:
1. Expand the Module browser to view the modules in the Display folder.
2. Drag and drop the Y/t Chart module into the worksheet.
3. Drag the Y/t Chart module so that its input touches the output of the
Analog Input module, and then release the mouse button.
A connection is made between the output of the Analog Input module
and the input of the Y/t Chart module.
Add a Write Data module
Connect a Write Data module to the Analog Input module to write the
analog data to a file. To add a Write Data module, complete the following
steps:
1. Expand the Module browser to view the modules in the Files folder.
2. Drag and drop a Write Data module onto the worksheet.
3. Click on the connection line between the Analog Input module and the
Y/t Chart module, and drag a new connection to the input of the Write
Data module. This connects the output of the Analog Input module to
the Write Data module.
