82

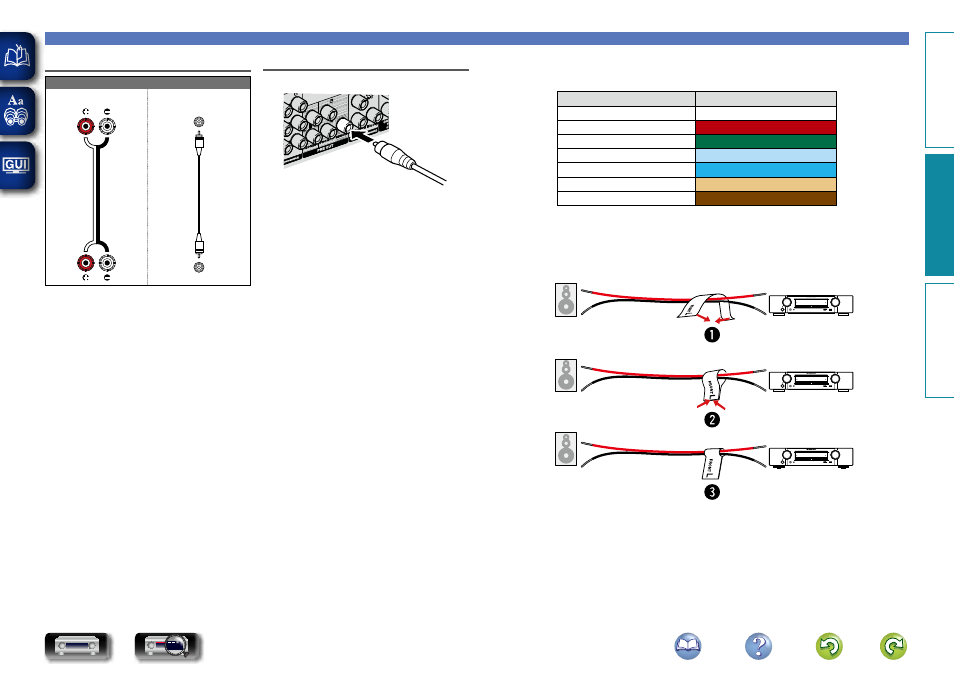

Speaker connection
n About the speaker cable label (supplied) for channel identification
The channel display section for speaker terminals on the rear panel is color-coded for each channel to
be identifiable.
Speaker terminals
Color
FRONT L
White
FRONT R
Red
CENTER
Green
SURROUND L
Light blue
SURROUND R
Blue
SURROUND BACK L
Beige
SURROUND BACK R
Brown
Attach the speaker cable label for each channel to its speaker cable as shown in the diagram.
Then, make connection so that the color of the speaker terminal matches that of the speaker cable
label.
GHow to attach the speaker cable labelH
Speaker
This unit
Cables used for connections
Audio cable (sold separately)
Speaker cable
Subwoofer cable
Connecting the subwoofer
Use a subwoofer cable to connect the subwoofer.
Basic instructions
Advanced instructions
Information
Advanced instructions
