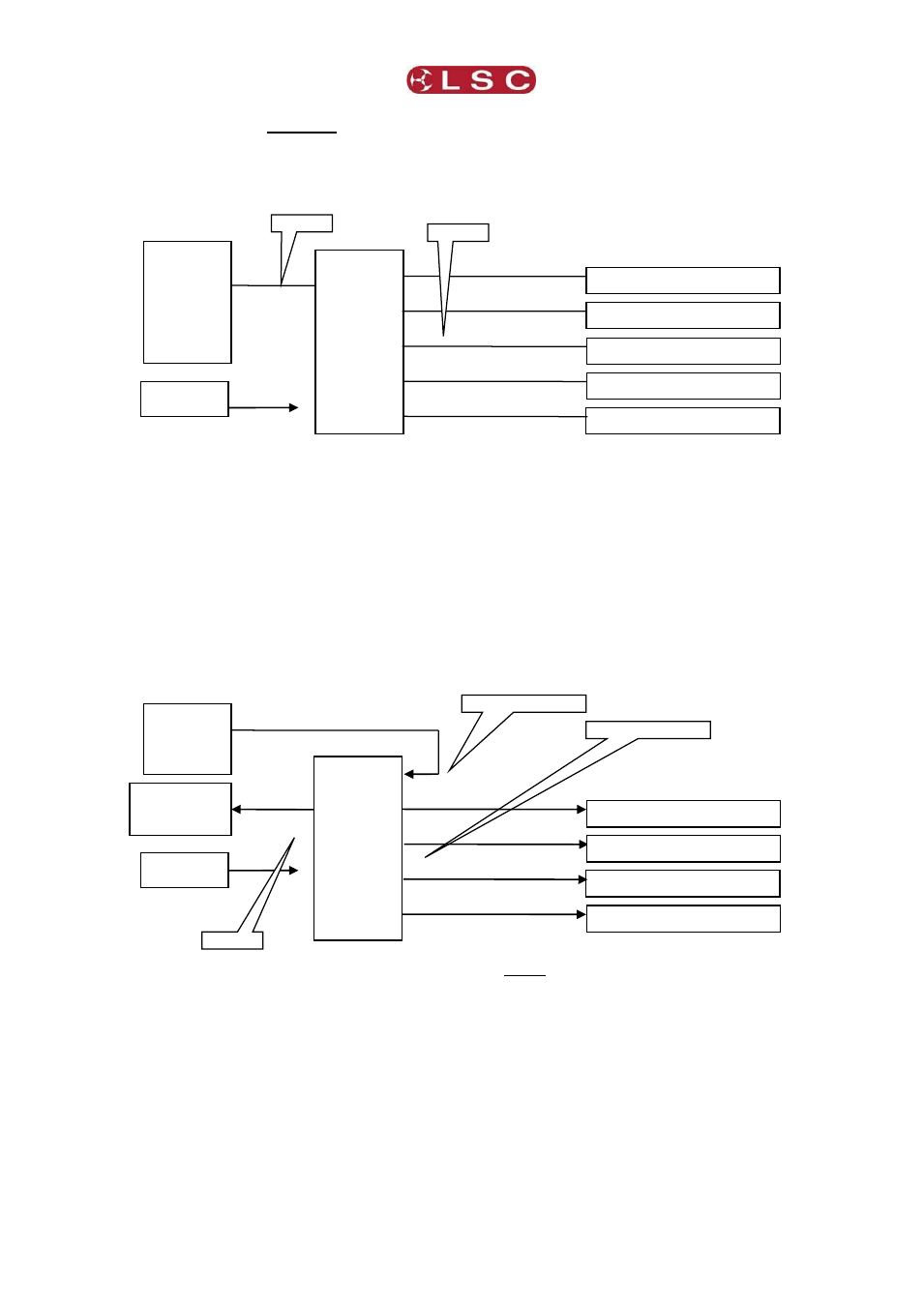

4.1.2 Typical Nexus 5 applications
 ArtNet or sACN to DMX converter. 5 DMX outputs each individually configurable to
provide a DMX output of its specified ArtNet or sACN universe.
 DMX Splitter. One DMX port is configured as an Input and assigned to an ArtNet or
sACN universe. The remaining 4 DMX ports are configured as outputs of the same ArtNet
or sACN universe. The LAN output also provides an ArtNet or sACN output of the DMX
input.
Lighting
Controller
with LAN
output on
multiple
ArtNet or
sACN
Universes
Ethernet
Nexus 5
DMX Devices on Universe 0.0
DMX
NexLan
Computer
DMX Devices on Universe 0.1
DMX Devices on Universe 1.1
DMX Devices on Universe 1.2
DMX Devices on Universe 0.0
Lighting
Controller
with DMX
Output
Nexus 5
4 DMX Outputs
DMX Devices
DMX Devices
DMX Devices
DMX Devices
DMX Input
To any ArtNet
or sACN
Devices
Ethernet
NexLan
Computer
