Delta Electronics SS1-UM-1.05 - Manual (Page 16)

16
••••
SunScan Tutorial Document code: SS1-UM-1.05

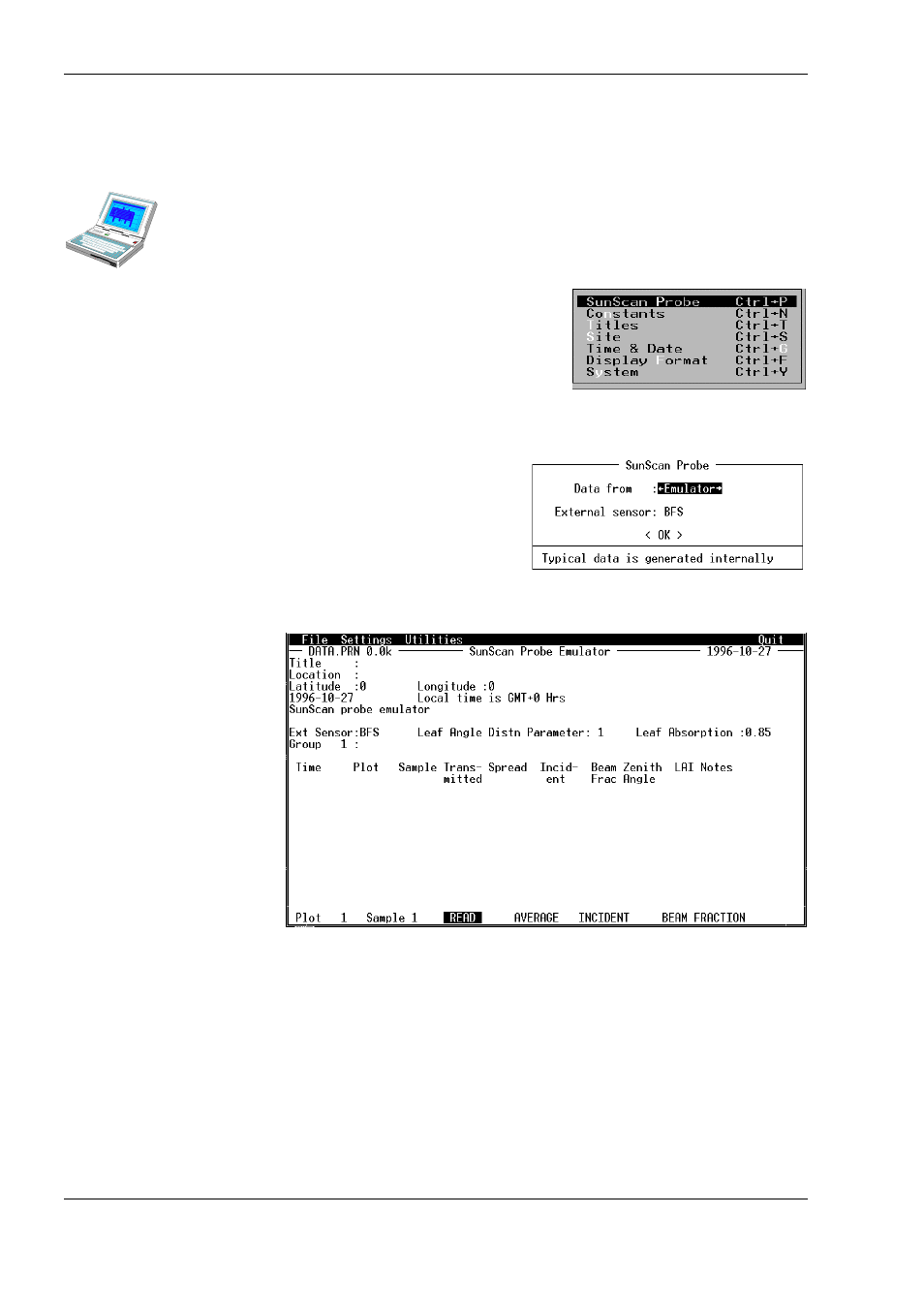

Using a PC instead of the Workabout
Starting the PC software
Skip this section if you are using the Psion. Refer to the section in Getting Started
for details on starting the PC version of the SunData software. This should bring
you to the PC title screen. You will then set the probe into its emulator mode for the
first part of the tutorial, as follows:
♦
Press Alt+S to drop down the Settings menu
as shown.
♦
Move to the SunScan Probe option using the
↑↑↑↑↓↓↓↓
arrow keys, and accept it by pressing
Enter or
↵ ↵↵ ↵
The SunScan Probe dialog box will appear.
♦
Use the Tab or
↑↑↑↑↓↓↓↓
keys to highlight the Data from field.
♦
Use the
← ← ← ←→ → → →
keys to toggle between the options in the field
♦
Select the Emulator option
♦
Move to the External Sensor field,
select the BFS option (it will be
emulated too)
♦
Move to the field and press
Enter or
↵ ↵↵ ↵
The menu line at the bottom of the screen will now show only the CONTINUE option.
♦
Press Enter or
↵ ↵↵ ↵
to get the following screen:
In the Setting up instructions that follow, you must interpret the Psion Workabout
instructions appropriately for your PC's environment. Don't forget the general rules:
a) Select an option by moving the highlighted cursor to it. Use the arrow keys or the
Tab key to move between options. Half-tone highlights indicate that options are
not available at that moment.
b) Accept the selected option by pressing
↵ ↵↵ ↵
or Return or Enter
c) Escape from, or cancel, a selection by pressing Esc
Menus at the top of the screen can be selected by pressing Alt and the highlighted
letter key (or moving the cursor to it with the arrow keys), otherwise the options at
the bottom of the screen are selected.
