10 www.dimplex.com
Fireplace Installation
Take the cables out from the 4.
junction box, loosen the two
wire twist nuts and remove
the cord set (Figure 2).
Route the power supply wire
5.
through the knockout on
supplied alternative junction
box cover and secure with
a wire clamp (not supplied)
(Figure 3).
Connect the black wire (live)
6.
from the unit to the black wire
from power supply (Figure 3).
Connect the white wire
7.
(neutral) from the unit to the
white wire from power supply
(Figure 3).
Connect the green wire
8.
(ground) from the unit to the
green wire from power supply
(Figure 3).
Place all connectors inside
9.
the unit and secure the
junction box cover to unit.
Ensure that the cable clamp
grips only the jacket of
service cable.
Final Steps

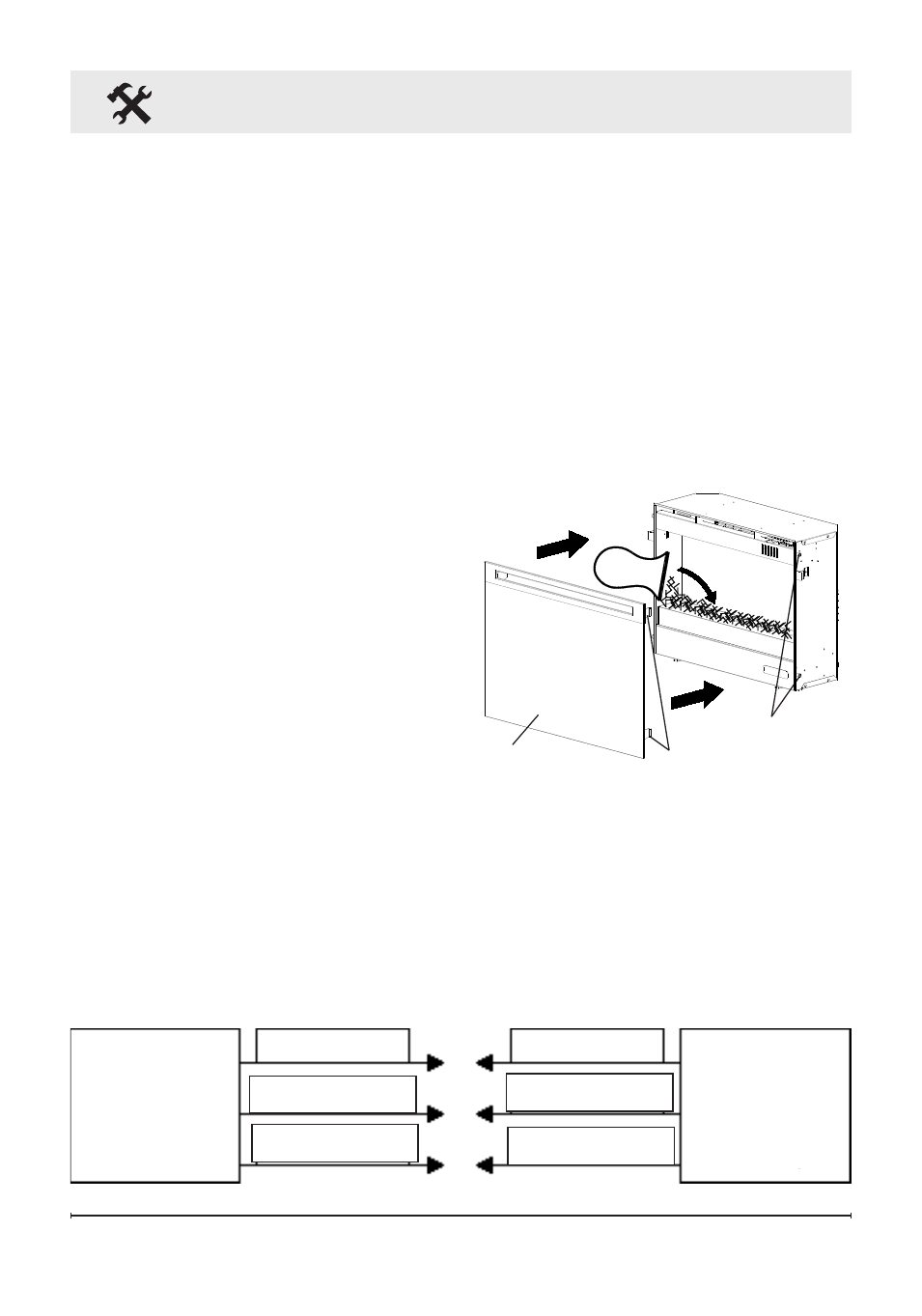

Carefully pour and evenly
distribute the supplied glass rock
media on the front tray of the
firebox (Figure 4). Once complete,
hang the front glass assembly on
the mounts of the firebox.
Fireplace
Junction
box
White wire (n)
black wire (L)
Green wire (G) Green wire (G)
black wire (L)
White wire (n)
120 v Power
supply
(breaker Panel)
Figure 4
Front glass
Mounts
hooks
