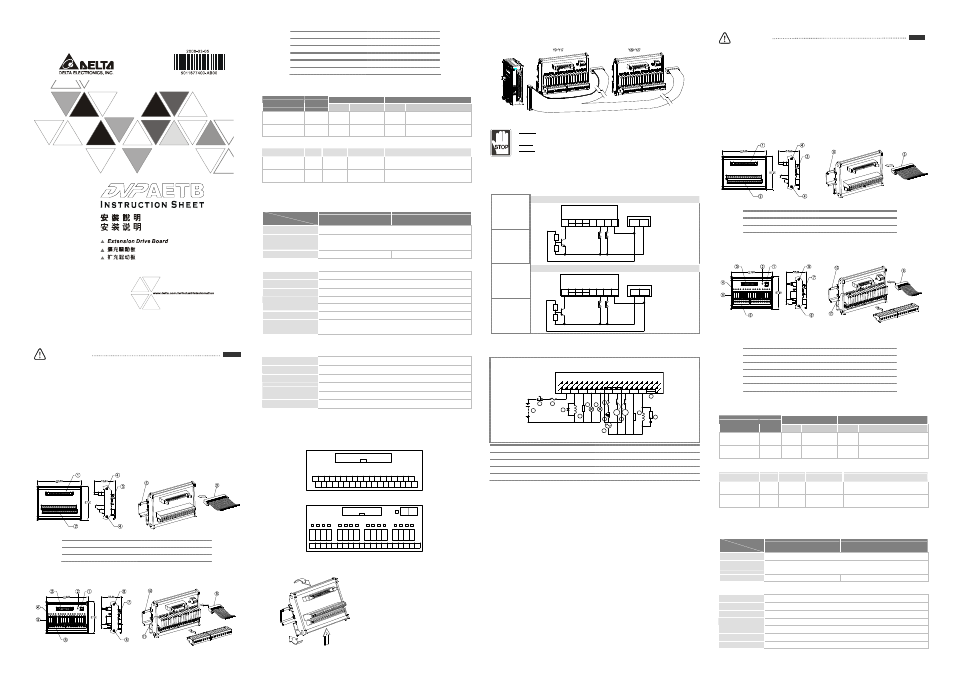

Warning

Please read this instruction sheet carefully before use.

DVPAETB series is an OPEN-TYPE device and therefore should be installed in an enclosure free of airborne dust,

humidity, electric shock and vibration. The enclosure should prevent non-maintenance staff from operating the

device (e.g. key or specific tools are required to open the enclosure) in case danger and damage on the device may

occur.

DO NOT connect input AC power supply to any of the I/O terminals; otherwise serious damage may occur.. Check

all the wiring again before switching on the power, and DO NOT touch any terminal when the power is switched

on.

Introduction

DVPAETB-ID32A/OR16A extension drive board is designed for connecting to DVP32SM11N and

DVP32SN11TN, the I/O module with multiple points.

Product Profile & Outline

DVPAETB-ID32A

Unit: mm

1. 40-pin header connector

4. Bottom fastening lock

2. 36-pin input terminal

5. 40-pin IDC connection cable*1

3. DIN rail clip

6. DIN rail

*1: You can select Delta’s standard accessory DVPACAB7A10 (IDC 40P-40P 1m)

DVPAETB-OR16A

Unit: mm

ENGLISH

1. 2-PIN power input terminal

7. DIN rail clip

2. Power indicator

8. Bottom fastening lock

3. 20-pin header connector

9. 20-pin IDC connection cable*2

4. Output indicator

10. DIN rail

5. Output relay

11. Output point action indicator

6. 9-pin+11-pin output terminal

*2: You can select Delta standard accessory DVPACAB7B10 (IDC 40P-20Px2 1m)

Model Explanation

Input Unit

Output Unit

Model Name

Power

Points

Type

Points

Type

DVPAETB-ID32A

N/A

32

DC Type

Sink/Source

0

N/A

DVPAETB-OR16A

24V DC

0

N/A

16

Relay 250V AC/30V DC

2A/1 point, 5A/COM.

Connection Cable

Model Name

Length

Pins

Connector

Applicable PLC (accessory)

DVPACAB7A10

1m

40P-40P

IDC connector on

both sides

DVP32SM11N (DVPAETB-ID32A)

DVPACAB7B10

1m

40P-20Px2

IDC connector on

both sides

DVP32SN11TN (DVPAETB-OR16A)

Specifications

Electrical Specifications

Model

Item

DVPAETB-ID32A

DVPAETB-OR16A

Insulation resistance

> 5MΩ (all I/O point-to-ground: 500V DC)

Operation/storage

environment

Operation: 0 ~ 55°C (temperature), 50 ~ 95% (humidity), pollution degree 2

Storage: -25 ~ 70°C (temperature), 5 ~ 95% (humidity)

Weight (g)

166g

216g

Input Point

Type

DC (There is no actual input device. Please refer to spec. of DVP32SM11N.)

Input format

DC (SINK or SOURCE)

Input voltage/current

24V DC 5mA

Off → On more than 16V DC

Action level

On → Off less than 14.4V DC

Response time

Approx. 10ms

Circuit isolation/operation

instruction

By internal photocoupler / LED indicators

Output Point

Type

Relay-R

Current specification

2A/1point (5A/COM)

Voltage specification

< 250V AC, 30V DC

75VA (inductive)

Maximum load

90W (resistive)

Response time

Approx. 10ms

Installation & Wiring

Terminals of Digital I/O Extension Unit

ID32A

X0 X2 X4 X6 X10 X12 X14 X16 X20 X22 X24 X26 X30 X32 X34 X36

X1 X3 X5 X7 X11 X13 X15 X17 X21 X23 X25 X27 X31 X33 X35 X37

S/S S/S

S/S S/S

OR16A

Y1 Y2 Y3 C1 Y4 Y5 Y6 Y7 C2 Y10 Y11 Y12 Y13 C3 Y14 Y15

C0 Y0

Y14 Y15

+24V

GND

Y1 Y2 Y3

Y4 Y5 Y6 Y7

Y10 Y11 Y12 Y13

Y14 Y15

Y0

Y14 Y15

Installation

How to install DIN rail:

Fix one side first.

Next, insert the drive board into the DIN rail and

check if the board is tightly knitted to the rail.

To uninstall the board, push up the board and pull it

out. Follow the steps as indicated in the figure.

Configuration of output points in the connection of DVP32SN11TN and DVPAETB-OR16A:

Environment Notice:

DO NOT install the board in the environment with dust, smoke, metallic debris, corrosive or

flammable gas

DO NO install the board in the premise of high temperature, humidity, direct shock and vibration

DO NOT place the I/O signal wires and power supply wires in the same wiring duct or use cables

of multiple cores.

Wiring of I/O Points

Wiring of input points:

There are two types of DC inputs, SINK and SOURCE.

Wiring Loop

DC

(DC Signal IN)

SINK Mode

S/S

X37

X36

X35

X0

+24V GND

POWER SUPPLY

SINK Mode

DVPAETB-ID32A

Wiring Loop

DC

(DC Signal IN)

SOURCE Mode

S/S

X37

X36

X35

X0

+24V GND

POWER SUPPLY

SOURCE Mode

DVPAETB-ID32A

Wiring of output points:

Relay output circuit wiring

MC2

MC1

9

10

C0

Y0

Y4

Y2

C2

Y3

Y5

Y1

5

2

3

7

8

1

6

7

2

5

4

MC2

MC1

Y6

Y7

8

DVPAETB-OR16A

1. Other output points

6. Varistor*3

2. Fuse

7. Inductive load

3. Reverse current protection diode*1

8. Incandescent light (resistive load)

4. Manual exclusive output*2

9. DC power supply

5. Emergency stop: Uses external switch

10. AC power supply

*1: There is no intermal protection circuit inside the output relay of DVPAETB-OR16A. Therefore, when

activating a DC inductive load, please parallelly connect it to a reverse current protection diode to extend

the life of the contact. The reverse current protection diode shall comply with the following specifications:

a. Able to endure maximum 5 ~ 10 times the amount of the load voltage.

b. Its forward current has to be bigger than the load current.

*2: The manual exclusive output uses external circuit and forms an interlock, together with the program

inside the PLC, to ensure safety protection in case of any unexpected errors.

*3: There is no internal protection circuit inside the output relay of DVPAETB-OR16A. Therefore, when

activating an AC inductive load, please parallelly connect it to a varistor (0.1uF + “100ohm to 120ohm”) to

reduce the interference in the AC load and extend the life of the contact.

Note:

Please select proper safety wires. If the wires are not sufficient in long-time operation, overheating and

sparking may occur.

注意事項

請在使用之前,詳細閱讀本使用說明書。

本機為開放型 (OPEN TYPE) 機殼,因此使用者使用本機時,必須將之安裝於具防塵、防潮及免於電擊/衝
擊意外之外殼配線箱內。另必須具備保護措施(如:特殊之工具或鑰匙才可打開)防止非維護人員操作或
意外衝擊本體,造成危險及損壞。

交流輸入電源不可連接於直流類型之輸入/出信號端,否則可能造成嚴重的損壞,因此請在上電之前再次確
認電源配線。請勿在上電時觸摸任何端子。

產品簡介

DVPAETB-ID32A/OR16A

擴充驅動板,主要用於與高密度 I/O 模組 DVP32SM11N 及 DVP32SN11TN 連接使用。

產品外觀及各部介紹

DVPAETB-ID32A

單位:mm

1. 40PIN

牛角座

4.

底座固定鎖

2. 36PIN

輸入端子

5. 40PIN IDC

連接線*1

3. DIN

軌固定槽

6. DIN

*1:

可使用台達標準配件 DVPACAB7A10 (IDC 40P-40P 1m)

DVPAETB-OR16A

單位:mm

繁體中文

1. 2PIN

電源輸入端子

7. DIN

軌固定槽

2.

電源指示燈

8.

底座固定鎖

3. 20PIN

牛角座

9. 20PIN IDC

連接線*2

4.

輸出指示燈

10. DIN

5.

輸出繼電器

11.

輸出點動作指示燈

6. 9PIN+11PIN

輸出端子座

*2:

可使用台達標準配件 DVPACAB7B10 (IDC 40P-20Px2 1m)

配件型號

輸入單元

輸出單元

配件名稱

電源

點數

形式

點數

形式

DVPAETB-ID32A

N/A

32

DC Type

Sink/Source

0

DVPAETB-OR16A

24V DC

0

16

繼電器 Relay 250V AC/30V DC
2A/1

點,5A/COM。

連接線型號

線材名稱

線長

PIN

線材接頭種類

適用機種(配件)

DVPACAB7A10

1m

40P-40P

二側 IDC 接頭

DVP32SM11N (DVPAETB-ID32A)

DVPACAB7B10

1m

40P-20Px2

二側 IDC 接頭

DVP32SN11TN (DVPAETB-OR16A)

規格

電氣規格

機 種

項 目

DVPAETB-ID32A

DVPAETB-OR16A

絕緣阻抗

5 MΩ

以上(所有輸出/入點對地之間 500V DC)

操作/儲存環境

操作:0 ~ 55°C(溫度), 50 ~ 95%(濕度), 污染等級 2
儲存:-25 ~ 70°C(溫度),5 ~ 95%(濕度)

重量(約)(g)

166g

216g

輸入點規格

輸入點形式

直流(無實際輸入元件,以下輸入規格參考於 DVP32SM11N。)

輸入形式

直流(SINK 或 SOURCE)

輸入電壓電流

24V DC 5mA

Off → On 16V DC

以上

動作位準

On → Off 14.4V DC

以下

反應時間

約 10ms

電路隔離/操作指示

內部之光耦合器/內部之 LED 顯示燈
