Appendix 5: Connecting a PTZ Camera
Appendix 5: Connecting a PTZ Camera
PTZ Cameras (not included with this system) can be connected to the PTZ Control Block on the
back panel of the System. The PTZ Controls are enabled through the Menu system on the DVR.
Additional PTZ Cameras are av

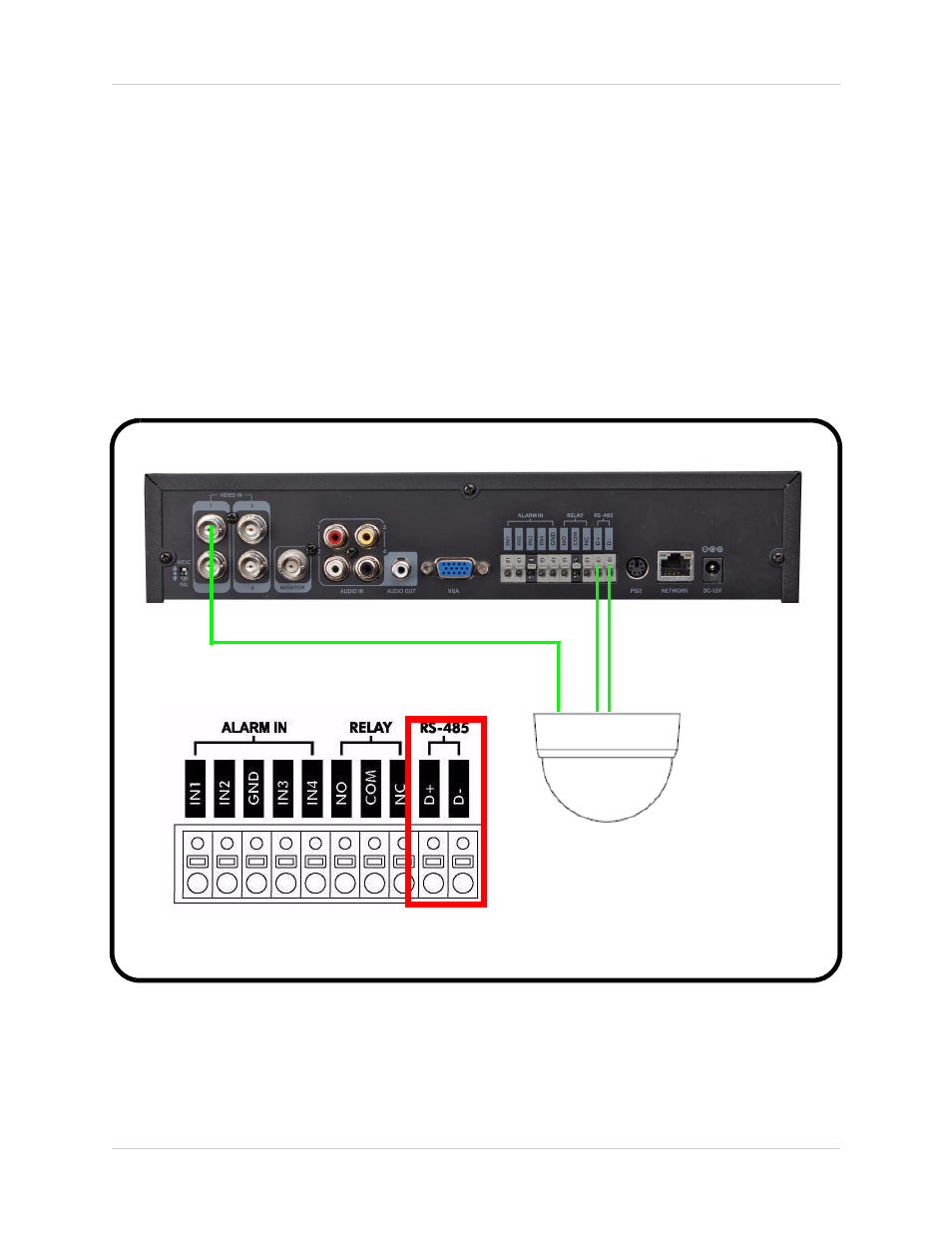

Installing a PTZ (RS-445 Type) PTZ Camera:
1. Connect the Transmit Cable to the D+ port on the PTZ Control Block on the DVR.
2. Connect the Receive Cable to the D- port on the PTZ Control Block on the DVR.
3. Connect the Camera to BNC Channel 1 (DIN Channel 1 must be empty).
4. Configure PTZ Menu options. The PTZ Camera Settings will depend on the Type of Camera - refer to the specific
Camera Manual for your brand and model of PTZ Camera.
PTZ CAMERA
(Not Included)
DVR
