DELTA ELECTRONICS, INC.

1

Nov., 2006

Rev. 0C

www.deltaww.com

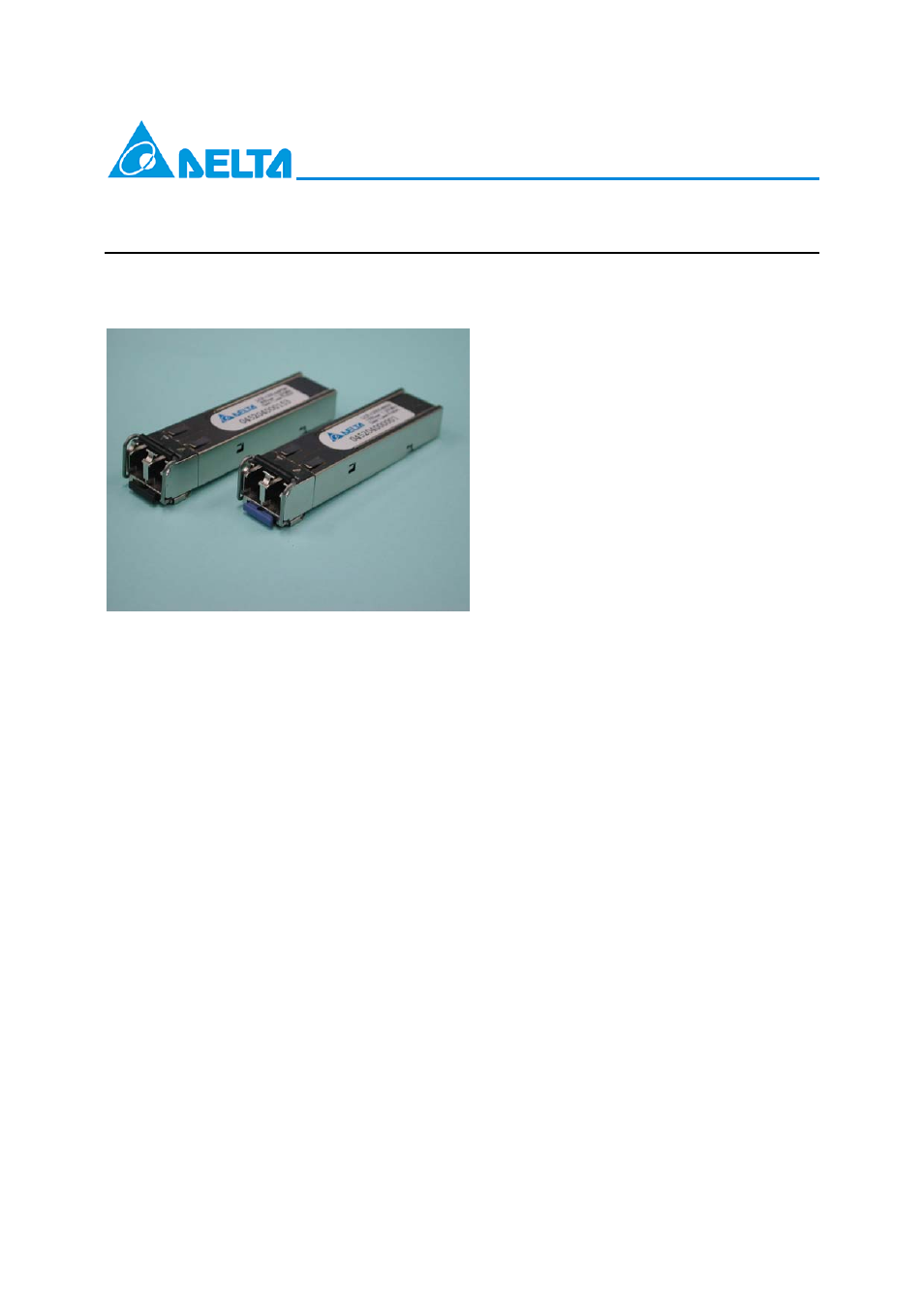

RoHS Compliant Small Form Factor Pluggable Transceiver for Gigabit
Ethernet and Fiber Channel

FEATURES

z

Compliant with SFP Transceiver MSA

specification

z

Compliant with Specifications for IEEE

802.3z/Gigabit Ethernet

z

LCP-1250Bxxx compliant with the 1.0625GBd

Fiber Channel 100-SM-LC-L FC-PI Rev.13

z

LCP-1250Axxx compliant with the 1.0625GBd

Fiber Channel FC-PI 100-M5-SN-I Rev.13

z

Compliant with Industry Standard RFT

Electrical Connector and Cage

z

Single + 3.3V Power Supply and TTL Logic

Interface

z

EEPROM with Serial ID Functionality

z

Laser Class 1 Product which comply with the

requirements of IEC 60825-1 and IEC 60825-2

z

Duplex LC Connector interface

Description

The LCP-1250xxxx series are hot pluggable

3.3V Small-Form-Factor transceiver module
designed expressly for high-speed
communication applications that require rates of
up to 1.25Gbit/sec. It is compliant with the Gigabit
Ethernet standards, as well as the SFP
Multisource Agreement (MSA).

The LCP-1250xxxx transceivers provide with

the LC receptacle that is compatible with the
industry standard LC connector. The transceiver
is also compatible with industry standard RFT
connector and cage.

The post-amplifier of the LCP-1250xxxx also

includes a LOS (Loss Of Signal) circuit that
provides a TTL logic-high output when an
unusable optical signal level is detected.

The LCP-1250xxxx transceiver is a Class 1

eye safety product. The optical power levels,
under normal operation, are at eye safe level.

Applications

z

Gigabit Ethernet

z

Fibre channel

z

Switch to Switch interface

z

Switched backplane applications

z

File server interface

Performance

z

LCP-1250A4FSxx Data Link up to 550m in

50/125

μm Multi Mode Fiber

z

LCP-1250B4QSxx Data Link up to 10km in

9/125

μm Single Mode Fiber
