Reparaturanleitung PS-4600 / PS-5000

22

Repair manual PS-350 / PS-420

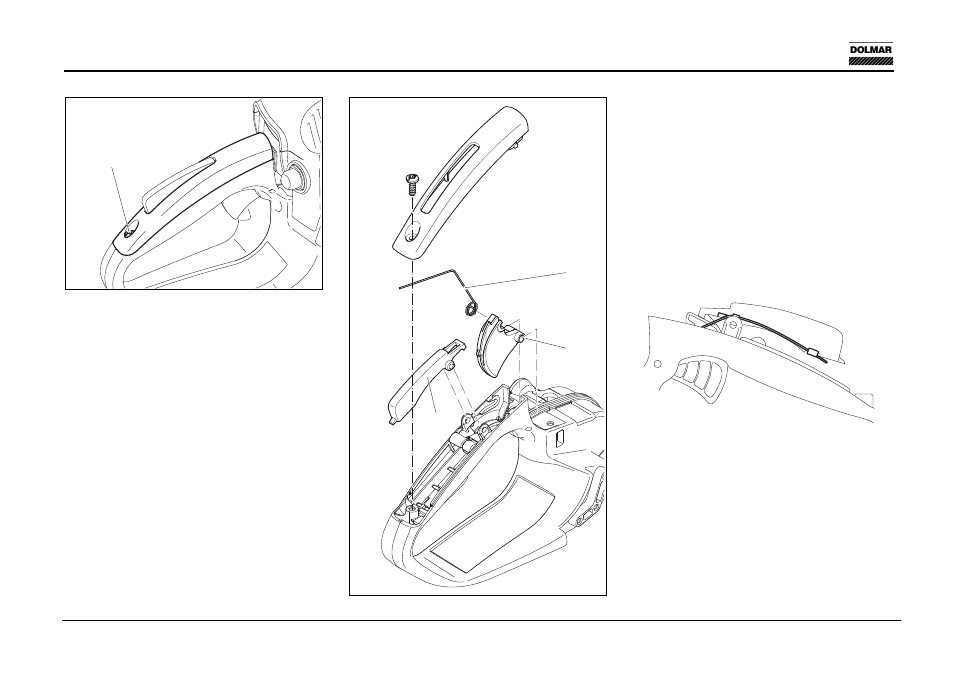

The throttle lever has a slot 2 at the hinge.

In assembly, first place the throttle lever
spring 3 on the throttle lever, then push the
lever onto the hinge iwth the slot. The throttle
lever must be turned by 180° to do this.

The throttle lever block 4 can easily be
pushed through the diagonals on the seat.
The spring is engaged in the throttle lever as
shown below.

1

2

4

3




































10 TANK

Grip mechanism

Unscrew screw 1 and pull off the top grip half
near the screw seat.

Note: When removing the throttle the following
must be done:

• Remove intake manifold and carburetor

• Remove hood and carburetor base

See chapters 07 and 08.
