Reparaturanleitung PS-4600 / PS-5000

11

Repair manual PS-350 / PS-420

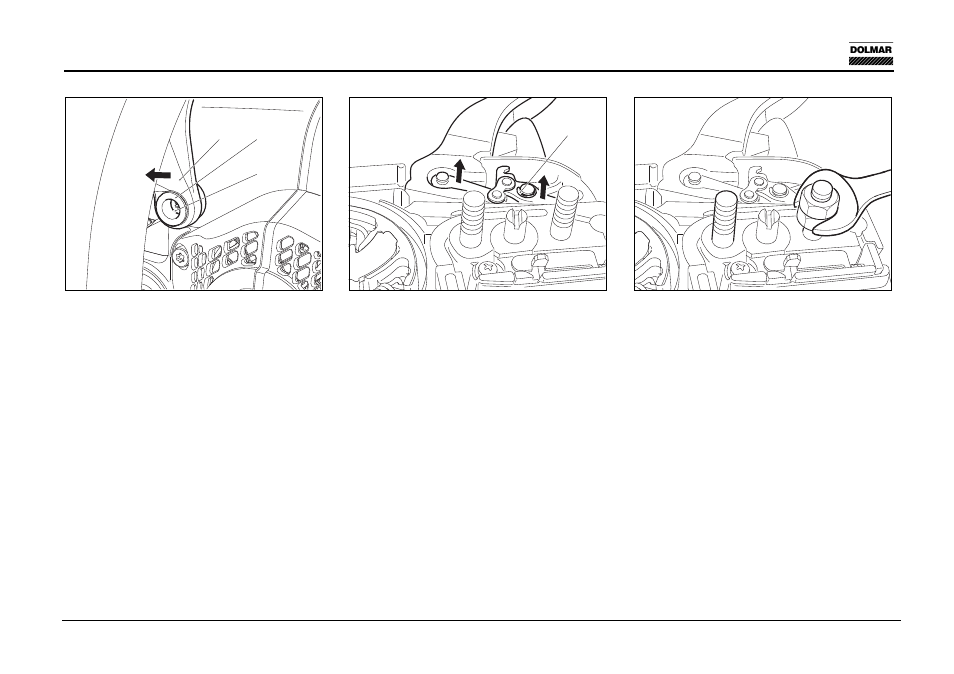

Remove the handguard and
disengagement mechanism

Unscrew bolt 4 and pull out the sleeve 5.

Push handguard arm 6 from its position over
the hood towards the muffler.

Replacing the guide bar bolt

Screw two nuts onto the bar bolt and
counterlock them.

Unscrew the bar bolt.
Assembly: Apply Loctite 243 (980.009.000) to
the guide bar bolts and turn them all the way
in.

4

5

6

7




































03 CHAIN BRAKE / GUIDE BAR BOLT

Remove the circlip 7.

Pull the disengagement mechanism up in
parallel with the axes.

Pull off the handguard with gentle back-and-
forth motion.

When reassembling always use a new
circlip 7
(927.304.000)!

Assemble the handguard and disengagement
mechanism, brake band and brake band
spring in reverse order.
