Reparaturanleitung PS-4600 / PS-5000

10

Repair manual PS-350 / PS-420

Secure the chain saw from slipping (vise).

Using the disassembly hook (Chap. 00, Pos.
12), disengage the brake band spring 3.

1

2

3




































03 CHAIN BRAKE / GUIDE BAR BOLT

Removing the brake band

CAUTION: Wear protective gloves to
prevent cuts!

Remove the sprocket guard, bar, and chain.

Remove the clutch drum, see Chapter 02.

Push the hand guard forward to engage the
chain brake. This tensions the brake band
spring.

Remove the cover plate, see Chapter 01.

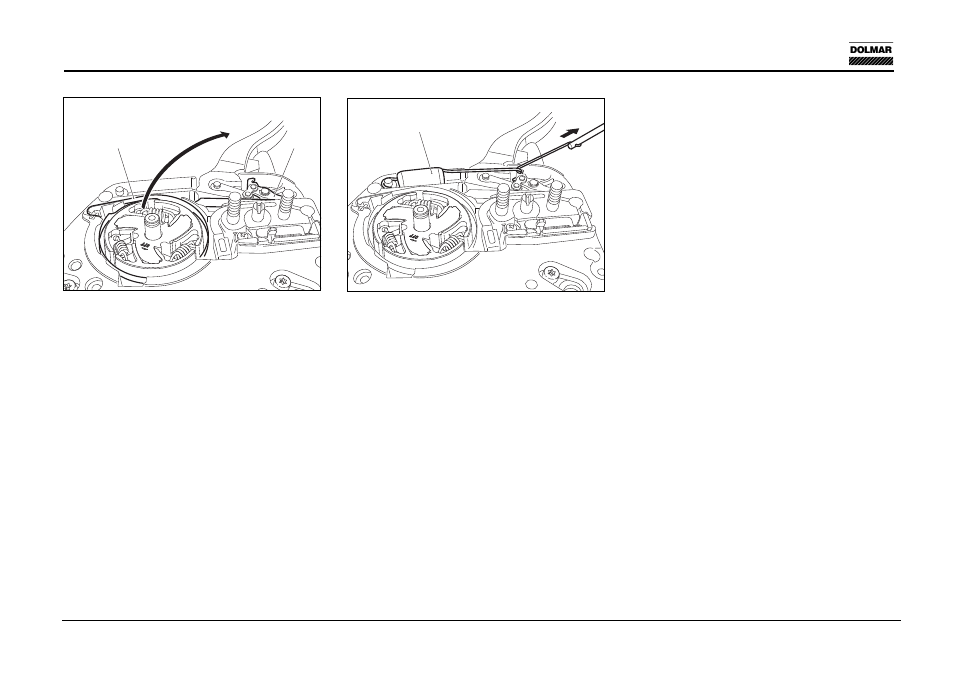

Fold the brake band 1 upward and turn it out
of the disengagement mechanism 2.
