Reparaturanleitung PS-4600 / PS-5000

19

Repair manual PS-350 / PS-420

Removing the carburetor bottom

Remove throttle linkage 4.

Remove cover (see chapter 07).

Pull short.circuit wire 5 from the ignition
armature.

Unscrew screw 6 and remove along with the
contact spring 7.

Unscrew screw 8.

Detach pulse line 9.

The carburetor base can now be removed
along with the combination switch.

Note: When assembling, make sure that the
short-circuit switch is pulled through the
rubber grommet as far towards the carburetor
as possible, in order to prevent the wire from
touching the cylinder.

Note: Do not twist the fuel line during
assembly.

Note: If replacing the foam 10 in the
carburetor base, make sure the position is
correct. The opening should be towards the
suction channel, as shown in the illustration.

5

9

8

10

6

7

4

1

2

3

4




































08 CARBURETOR

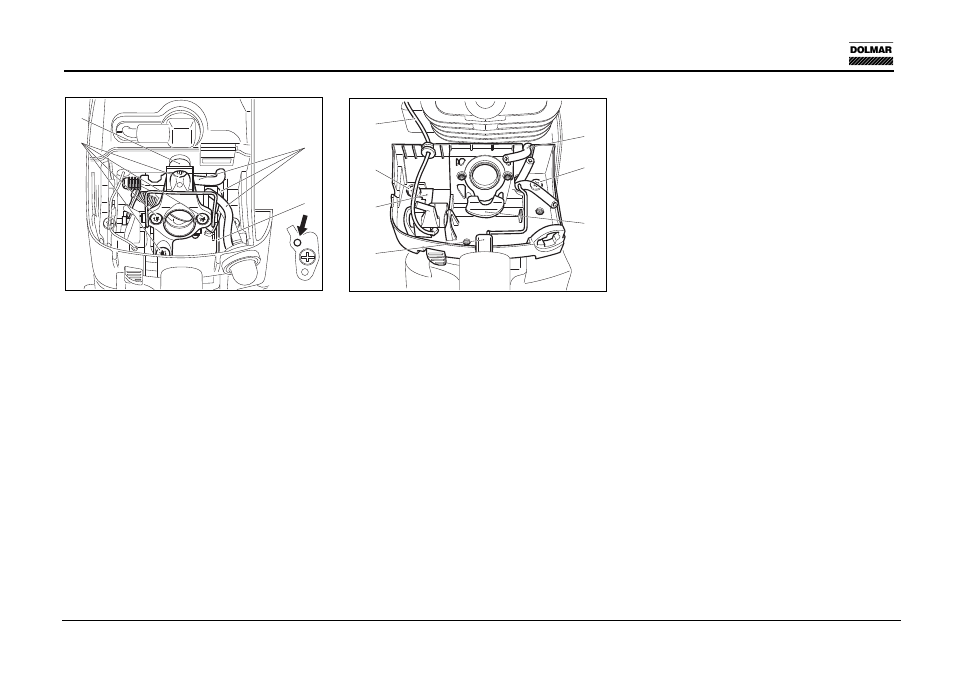

Removing the intake manifold and
carburetor

CAUTION: Completely empty the fuel tank
before disassembling the carburetor!

Remove cover and air filter.

Move combination switch to safety position.

Unscrew 4 screws 1.

Remove intake manifold 2.

Pull fuel lines and pulse line 3 from the
carburetor.

CAUTION: There is fuel in the line. Catch
escaping fuel with a cloth.

Disengage throttle link 4.

Note: When reassembling, engage the
linkage in the marked hole (arrow).
