Reparaturanleitung PS-4600 / PS-5000

20

Repair manual PS-350 / PS-420

General check

• Screen 7 for contamination

• Pulse hole for contamination

Check control parts

(control lever/inlet needle):
Check the tip of the inlet needle for wear.

Check control lever for correct installation, see
illustration to the left.

If the control lever is too low:

• Lack of fuel

• Poor acceleration

• No maximum power

If the control lever is too high:

• Carburetor flooding

• Starting problems

• Poor idling

Poor transition

Check the pump diaphragm:

If pump diaphragm is dented, torn, or creased,

• If valve flaps are bent,

replace the diaphragm and gasket

Check control diaphragm:

• If control diaphragm is bent or torn, or there

is obvious wear at the button 8.

• If it does not return to its original position

when pulled out of it,

replace the diaphragm and gasket.

6

5

7

4

8

3

2

1




































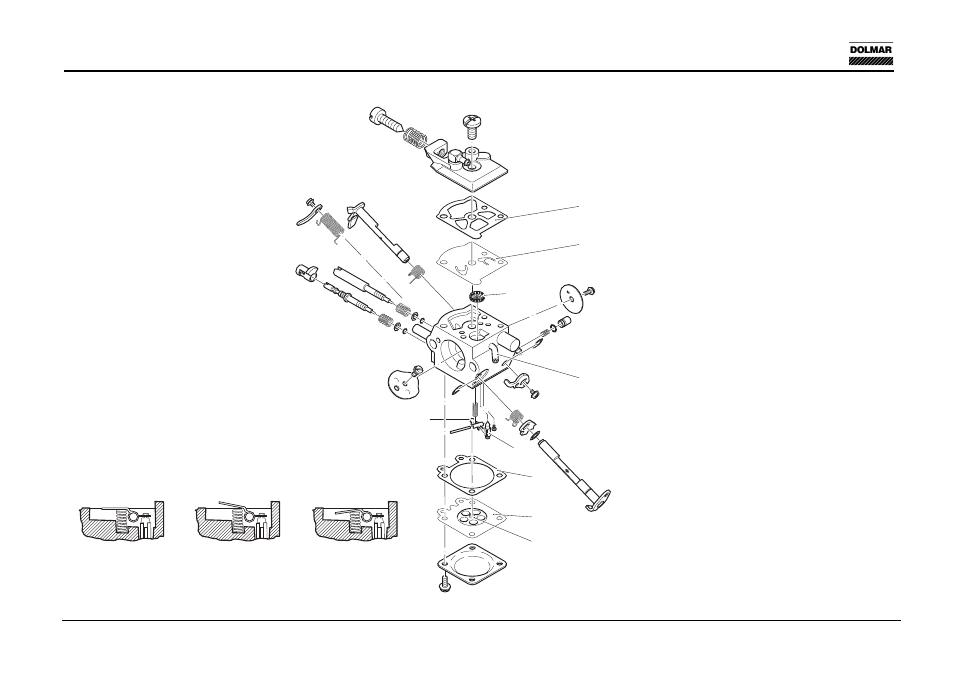

08 CARBURETOR

Control lever

Control lever

Correctly

installed

Control lever

Too high

Control lever

Too low

Basic Setting

(without Limiter Caps)

L= 1 1/2

H= 3

NOTE: Adjust the carburetor only
using a tachometer.

Pressure test

Connect the pressure gauge (chapter
00 item 8 oder 13) to the carburetor
fuel connection 1.

Set up a pressure of max. 0.5 bar.
If the pressure falls, check the
following parts:

Correct assembly of Control assy

(Control lever, Inlet needle, Lever
spring, lever axle)

Check seat of inlet needle for

dirt/foreign parts, clean if necessary

Replace control assy

• Replace gasket 6 and diaphragm 5
of the pump side
