Reparaturanleitung PS-4600 / PS-5000

13

Repair manual PS-350 / PS-420

Press the disc onto the clutch. It must be flat
and be engaged.

Installing the clutch

Install the clutch with the arrow marking point
up.
CAUTION

: Before installing the clutch,

disassemble the starter in order to prevent
damage to the starting ratchets



































04 CLUTCH

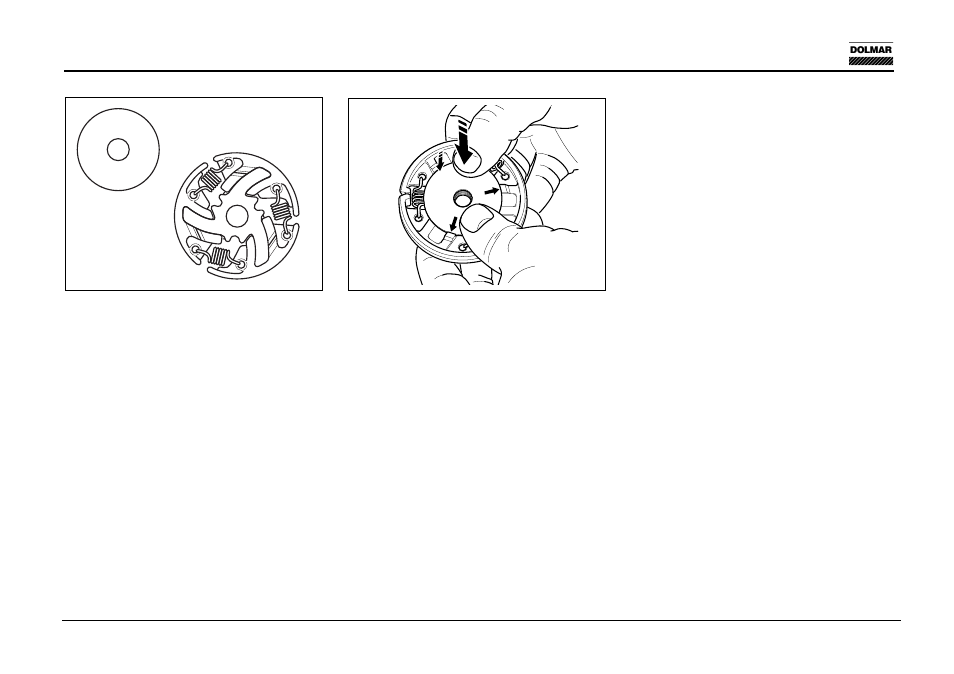

Inserting the flyweights

Hook the springs as shown in the illustration.

The press the flyweights onto the guide. To do
this, first push on two flyweights half-way, then
put on the third flyweight by setting it on its
edge.

Press the flyweights all the way onto the
guide.

CAUTION: Note the position of the springs.
Do not replace springs individually! If a
spring breaks or is fatigued, all three
springs must be replaced. The springs
must not touch the cover.

The illustration shows the inside of the clutch.
