Reparaturanleitung PS-4600 / PS-5000

21

Repair manual PS-350 / PS-420

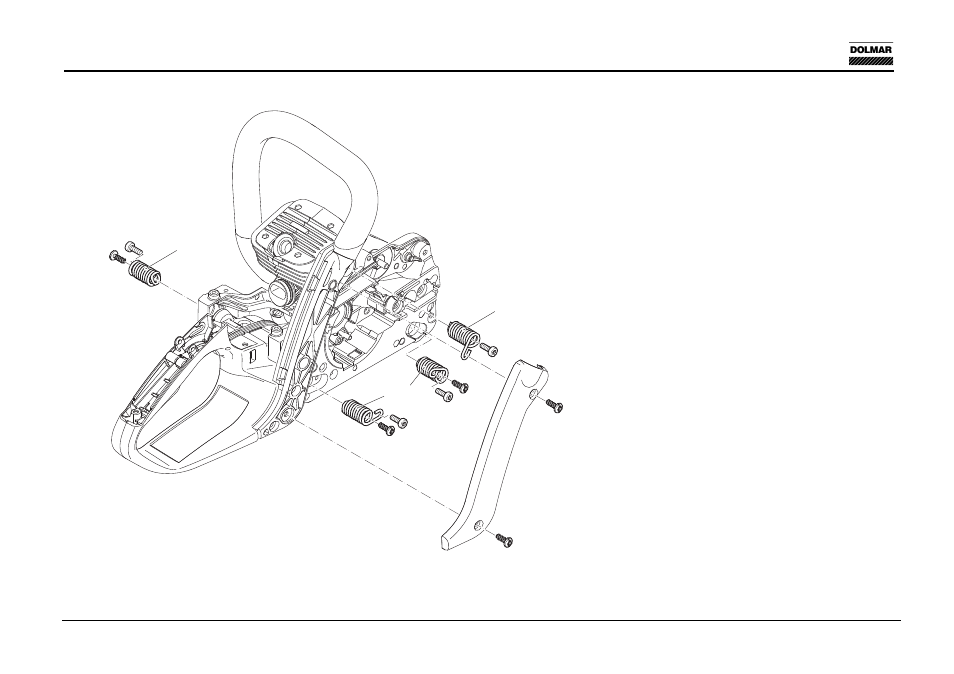

Disassembly

Springs 1 and 2

Remove the sprocket guard and chain brake
cover, see chap. 01.

Loosen screws with Torx screwdriver (chap.
00 pos. 1) and remove.cushion spring.

Spring 3

Remove starter housing (see chap. 06) and
hood (see chap. 07).

Loosen and remove screws with Torx
screwdriver (chap. 00 pos. 1).

Pull out cushion spring.

Spring 4

Remove the side brace cover.

Loosen and remove screw with Torx
screwdriver (chap. 00 pos. 1)

Remove cushion spring. Remove spring
retainer.

Note: During assembly, insert spring retainer
between the cushion spring and the cylinder.

1

2

4

3




































09 VIBRATION DAMPER
