Maintenance
the opposite end from the support
bracket (Figure 10).
Upper Light Bulb Requirements
Quantity of two (2) clear
chandelier or candelabra bulbs
with an e-12 (small) socket base,
15 Watt rating.
Do not exceed 15 Watts per
bulb.
To access the upper light bulb
area:
①
Carefully remove the front
glass assembly. be aware that
some of the glass media may fall
out of the tray (Figure 9).
②
Upper bulbs are located in the
upper left and upper right corners
of fireplace (Figure 9).
③
Remove the upper light cover
for each bulb (two (2) Philips
screws each).
④
Unscrew bulb(s) counter
clockwise.
⑤
Insert new bulb(s).
⑥
re-install upper light bracket.
⑦
Replace glass assembly.

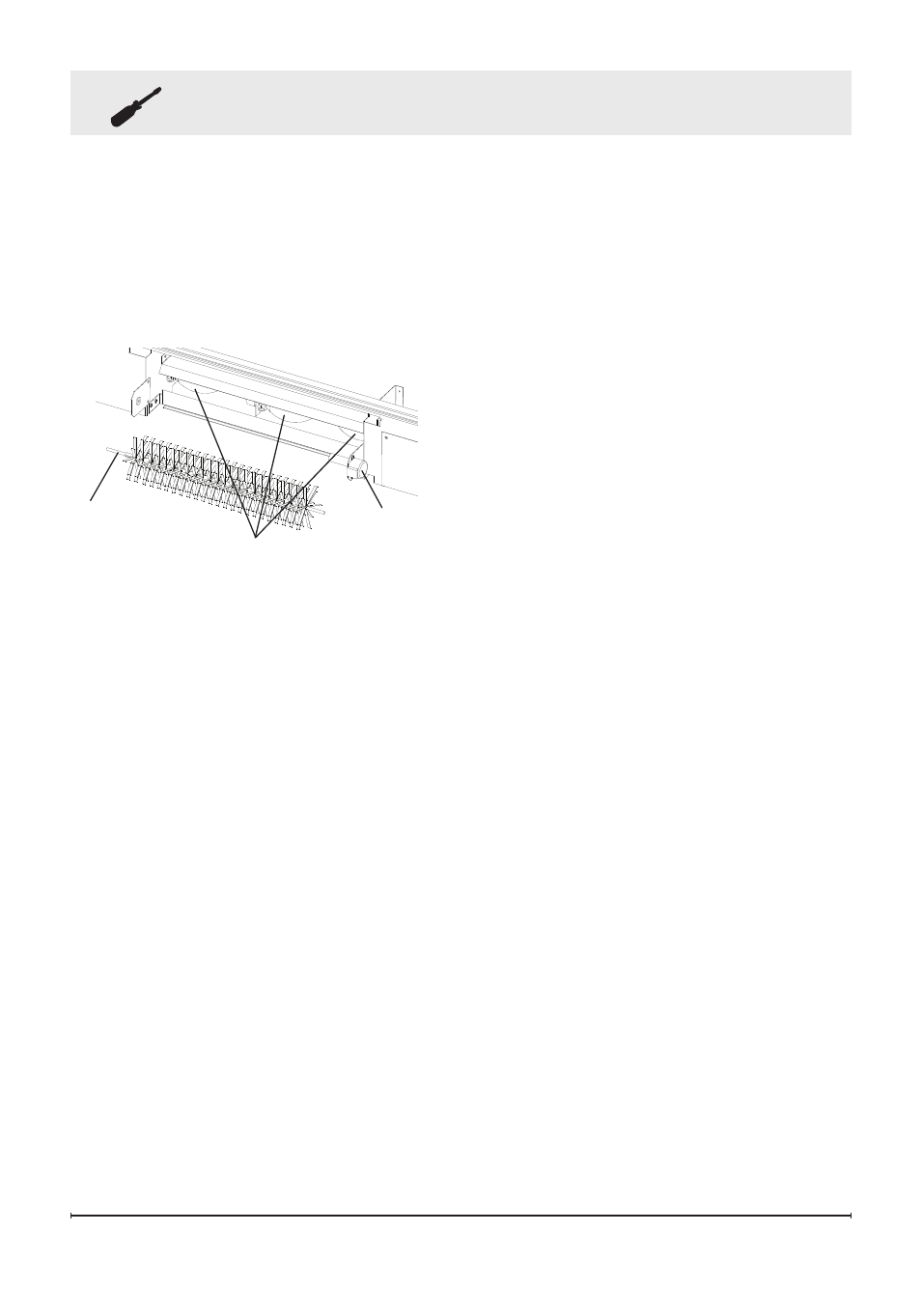

Figure 10
Exploded view to show detail
Flicker Rod Flicker
Motor
bulbs (3)
⑤
remove flicker rod from motor
(see Figure 10).
⑥
Unscrew bulb(s) counter
clockwise.
⑦
Insert new bulb(s).
⑧
push flicker rod back onto
motor shaft and replace opposite
end of flicker rod back into
support bracket.
⑨
Replace media tray back into
firebox.
⑩
Gently pour and evenly
spread the glass media.
⑪
Replace glass assembly.
