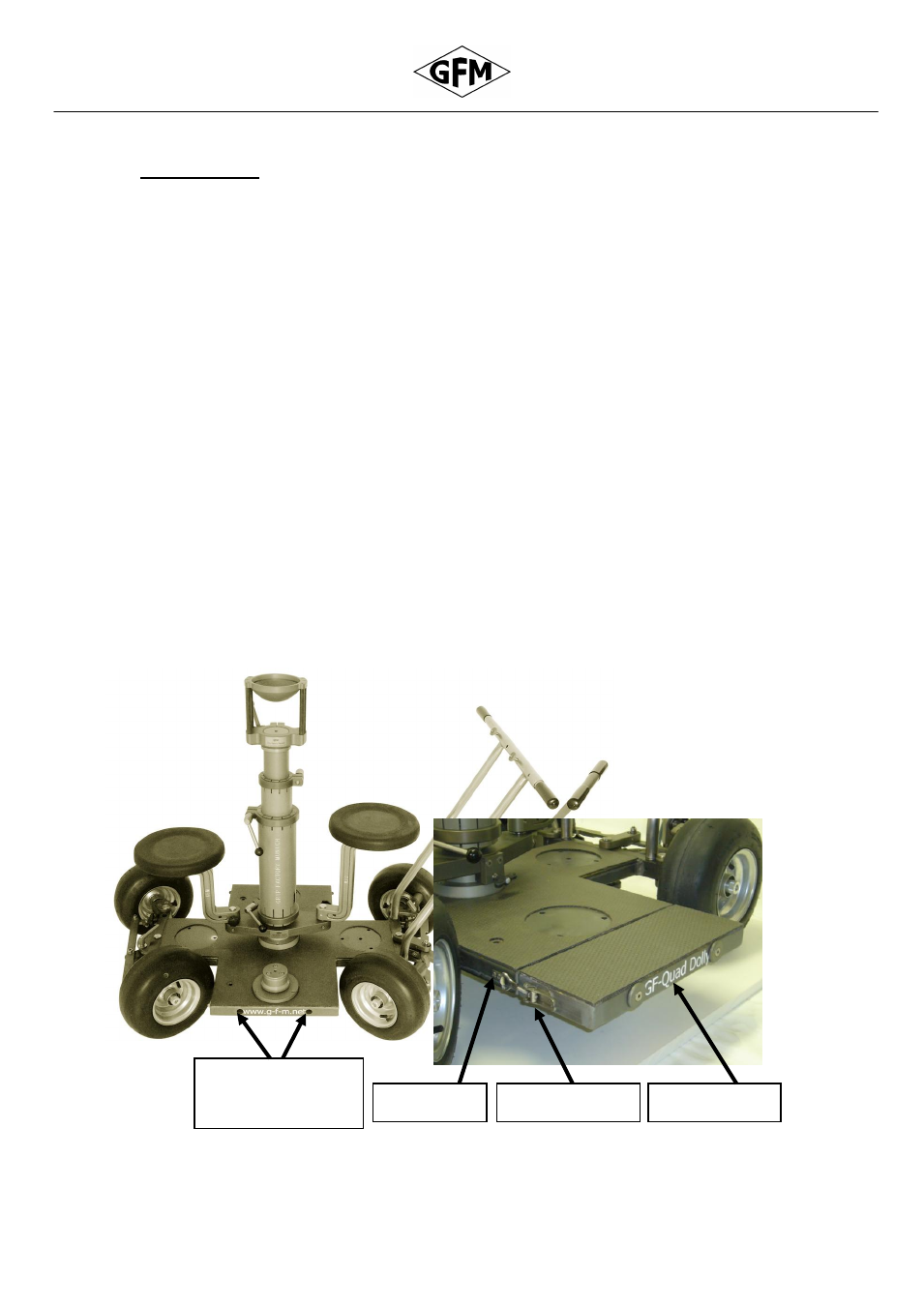

Connection holes for
additional side
platforms
Latch hook Locking latch Side platform
6.5 Side platforms
Additional side platforms can be used to extend the size of the GF-Quad Dolly.
Please proceed as follows:
Insert the 2 side platform shafts into the 2 connection holes for
additional side platforms found on each side of the main dolly platform.
Attention: The rubber coated side of the platform should be pointing
upwards as per the main platform.
Secure the side platform to the dolly by engaging the locking latch with
the locking hook and tighten securely.
Attention: By adding the 2 side platforms, the width of the dolly is
increased. During use, the operators should be careful
that they don‟t accidently trip over them.
Avoid loading weights or allowing people to stand on the
outside rim of the platforms. Without the respective
weight to counterbalance this, the dolly may tip over.
To avoid collisions, remove the platforms in narrow
passages with a minimum width of 1,05m.
Mounting the side platforms
