Pub. 42004-359B
Model 12584-001 I/O Control Module Page: 6 of 7
\\s_eng\gtcproddocs\standard ioms - current release\42004 instr. manuals\42004-359b.doc
10/08
TB8 Terminal Block Assignments
Terminal Labeled Function Type
TB8-1 I N -25 Input 25 Activates input #25
TB8-3 I N -26 Input 26 Activates input #26
TB8-5 I N -27 Input 27 Activates input #27
TB8-7 I N -28 Input 28 Activates input #28
TB8-9 I N -29 Input 29 Activates input #29
TB8-11 I N -30 Input 30 Activates input #30
TB8-13 I N -31 Input 31 Activates input #31
TB8-15 I N -32 Input 32 Activates input #32
TB8-2, 4,
6, 8, 10,
12, 14, 16 GND Ground Ground reference
TB4- Power Connections
The I/O Control Module requires a dc power supply. The dc power supply voltage must be between 12
and 24 V dc. TB4 is used for power connections. Please refer to the TB4 terminal block assignment
chart and Figure 5 below.

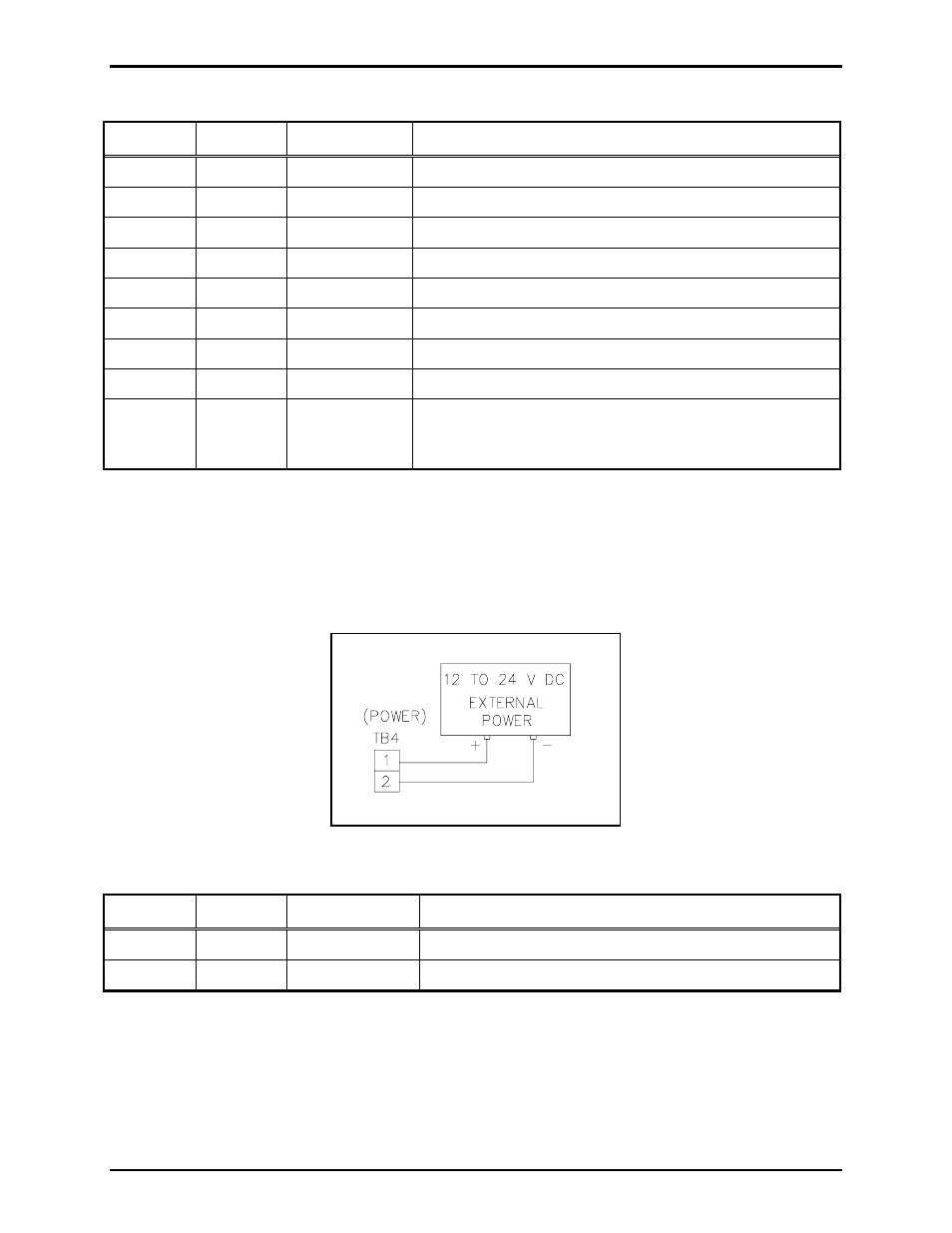

Figure 5. Power connections at TB4
Terminal Labeled Description Function
TB4-1 + Power (+) 12 to 24 V dc power supply positive terminal
TB4-2 - Power (-) 12 to 24 V dc power supply negative terminal
