Opep-33-a4k3r – Delta Electronics GE-PON ONU Transceiver OPEP-33-A4K3R User Manual
Page 6
OPEP-33-A4K3R
DELTA ELECTRONICS, INC.
6 Revision:
S1
03/12/2007
www.deltaww.com

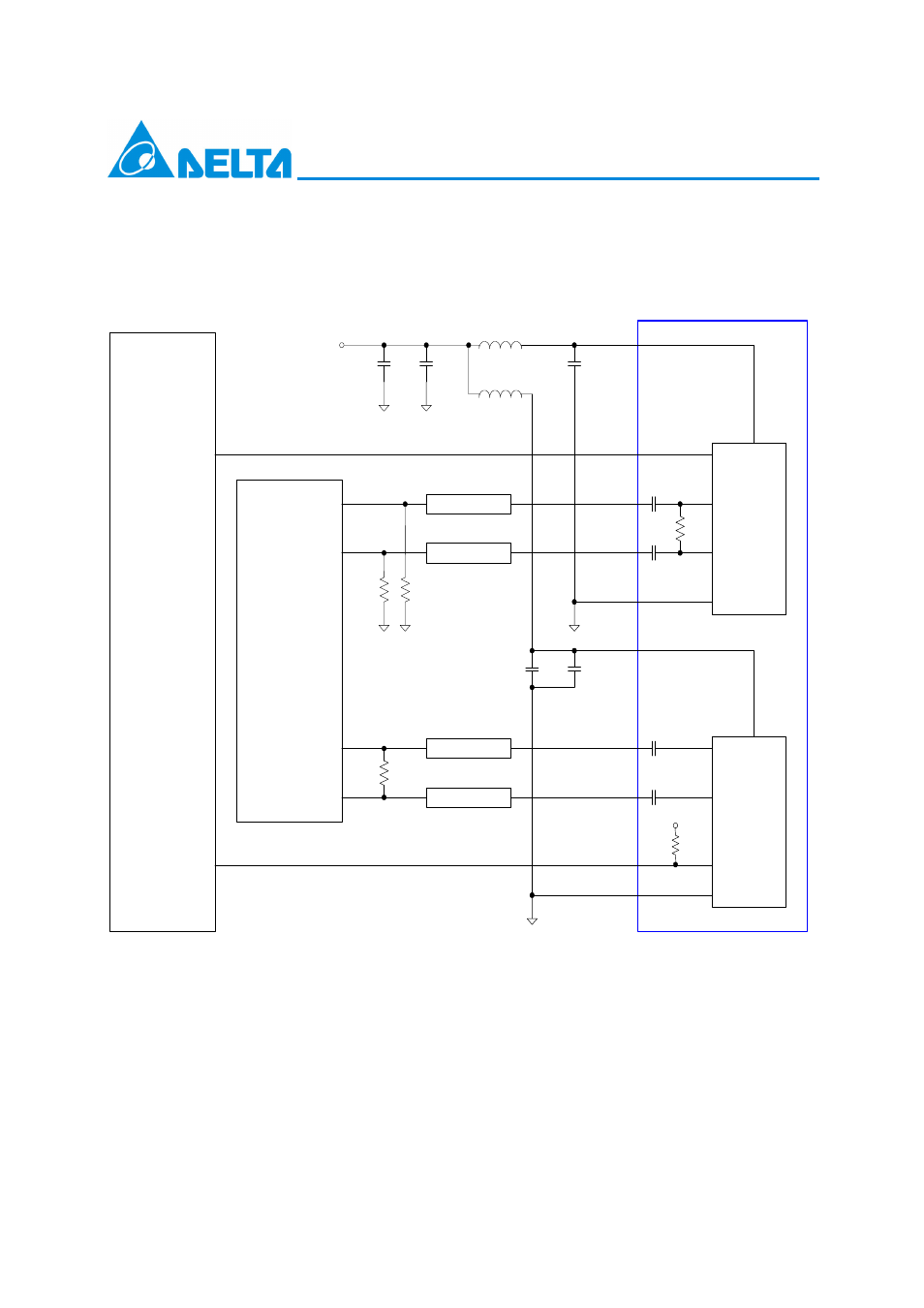

8. Recommended Interface Circuit
Transmitter
100ohm
100nF
100nF
9. TD(p)
10. TD(n)
8. BiasCNT
6. VccT
7. VeeT
Receiver
100nF
100nF
1. VeeR
5. RD(p)
4. RD(n)
3. SD
2. VccR
100nF
10uF
100nF
10uF
100nF
1uH
1uH
3.3V
Protocol IC
SerDes IC
100ohm
BiasCNT
SD
DELTA GEPON ONU Module
Z0=50ohm
Z0=50ohm
Z0=50ohm
Z0=50ohm
150ohm
150ohm
RES
VccR
* RES is the internal 4.7K to 10K Ohms pull-up resistor.
