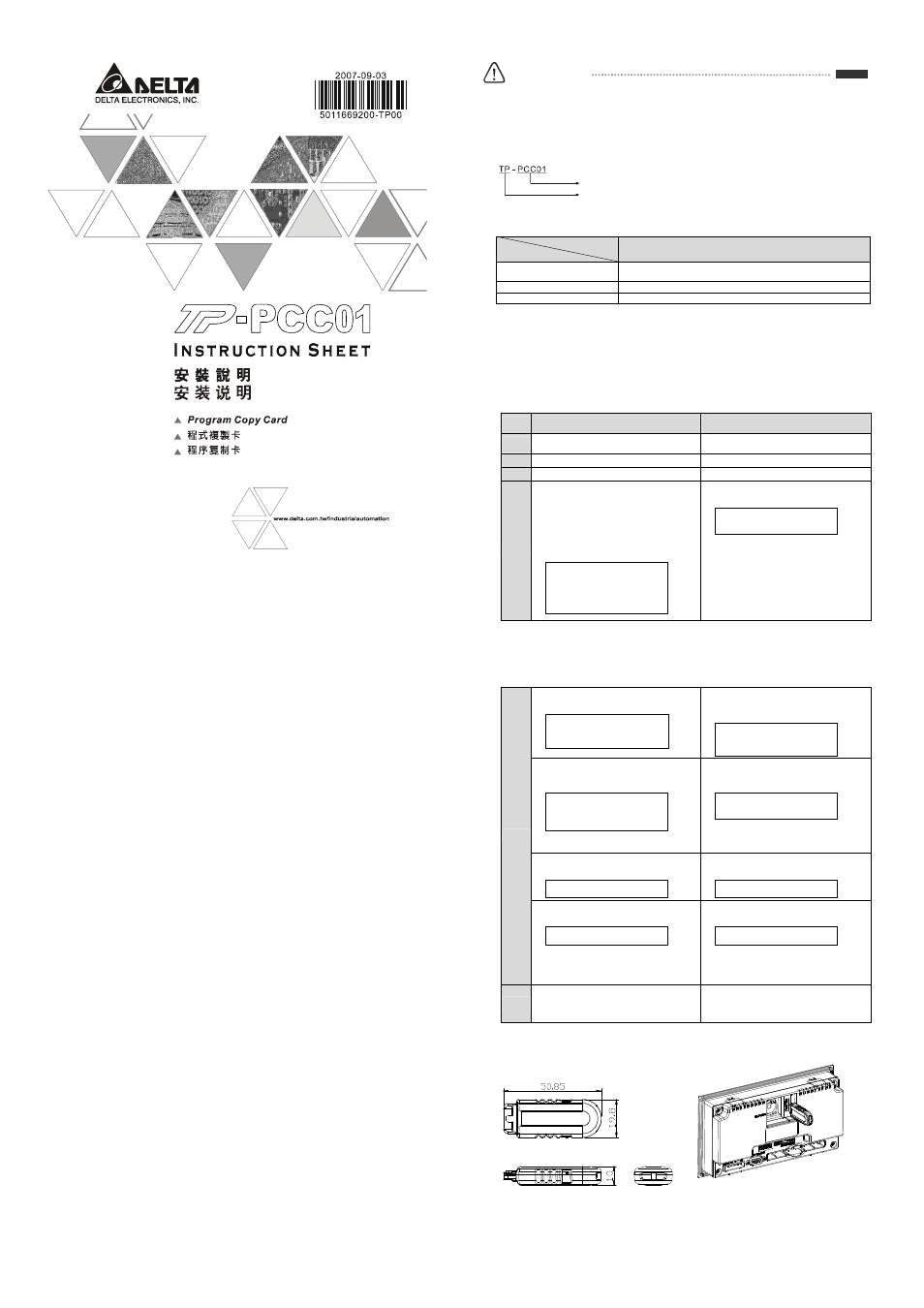

Warning

TP-PCC01 doesn’t support plug and play function. Please turn off power before plugging.

The voltage for TP-PCC01 is supplied from TP extension slot. Please ensure that plug direction is correct when connecting

TP-PCC01 to TP extension slot in case danger and damage on the device may occur.

Introduction

Electrical Specifications

Model Name

Item

TP-PCC01

Data Reserved Life / Times for
Writing In

20 years / one hundred thousand times

Operation Temperature

0ºC ~ 55ºC

Weight / Dimensions

6g / 50.85Ч19.8Ч10 mm

Program Copy Card Functions

Compatible firmware version: TP05G/TP08G (V1.00 and above)

Using program copy card functions can copy the whole system parameters and application programs set in
one TP05G/TP08G to another TP05G/TP08G rapidly. It can save much time and manpower. The operation is
described in the following sections.

TP-PCC01 : Program Copy Card

TP

: Terminal Panel (TP05G/TP08G Series)

Step

TP

TP-PCC01

(Copy TP program to TP-PCC01)

TP-PCC01

TP

(Copy program in TP-PCC01 to TP)

1

Turn the switch on the TP-PCC01 to
TP

TP-PCC01

Turn the switch on the TP-PCC01 to
TP-PCC01

TP

2

Insert the TP-PCC01 into the extension slot of TP

Insert the TP-PCC01 into the extension slot of TP

3

Apply power to TP

Apply power to TP

4

If the model type of TP does not match the
model type of the program set in TP-PCC01:

(TP05G program and TP08G program can’t be
compatible with each other. It means that
TP05G program can’t be opened and edited by
TP08G, and TP08G program can’t be opened
and edited by TP05G either.)

TP will display:

TP series and TP-PCC01 is different
Press Enter to Confirm
TP series

TP-PCC01

Press Esc to Exit

Press CLR to Erase TP-PCC01

If there is no program in TP-PCC01.

TP will display:

The TP-PCC01 is Empty
TP-PCC01

TP series

is illegal

Model Name Explanation

Program Copy Card

Series

ENGLISH

Remove the program

TP will display:

TP-PCC01 will be Erased!

Press Enter to Confirm

Press ESC to Exit

If the model type of TP does not match the
model type of the program set in TP-PCC01.

TP will display:

TP series and TP-PCC01 is different

Please Remove the TP-PCC01

and Reboot

If the model type of TP and the model type of
the program set in TP-PCC01 is matched.

TP will display:

Press Enter to Confirm
TP series

TP-PCC01

Press Esc to Exit

Press CLR to Erase TP-PCC01

Press key to confirm the “writing in”
operation.

If the model type of TP and the model type of
the program set in TP-PCC01 is matched.

TP will display:

Press Enter to Confirm
TP-PCC01

TP series

Press Esc to Exit

Press key to confirm the “writing in”
operation.

When executing “writing in” operation,

TP will display:

TP series

TP-PCC01

Please wait!

When executing “writing in” operation,

TP will display:

TP-PCC01

TP series

Please wait!

5

“Writing in” operation is completed.

TP will display:

Please Remove the TP-PCC01 and
Reboot

Please turn the power of TP off and remove
TP-PCC01 from TP. At this time, all TP programs
and system parameters have been copied to
TP-PCC01.

“Writing in” operation is completed.

TP will display:

Please Remove the TP-PCC01 and
Reboot

Please turn the power of TP off and remove
TP-PCC01 from TP. At this time, all programs and
system parameters stored in TP-PCC01 have
been copied to TP.

6

Turn the power of TP off and then remove
TP-PCC01 when the message “Please Remove
the TP-PCC01 and Reboot” displays on the
screen of TP.

Turn the power of TP off and then remove
TP-PCC01 when the message “Please Remove
the TP-PCC01 and Reboot” displays on the
screen of TP.

Dimension and Installation

(Units: mm)

Note:
To avoid damage to TP-PCC01, when installing
TP-PCC01 into TP, please pay particular attention
to the installation direction of TP-PCC01 and ensure
that the side which there is a switch on it should be
up and toward the user.
