Chapter 2 Installation Instructions
16

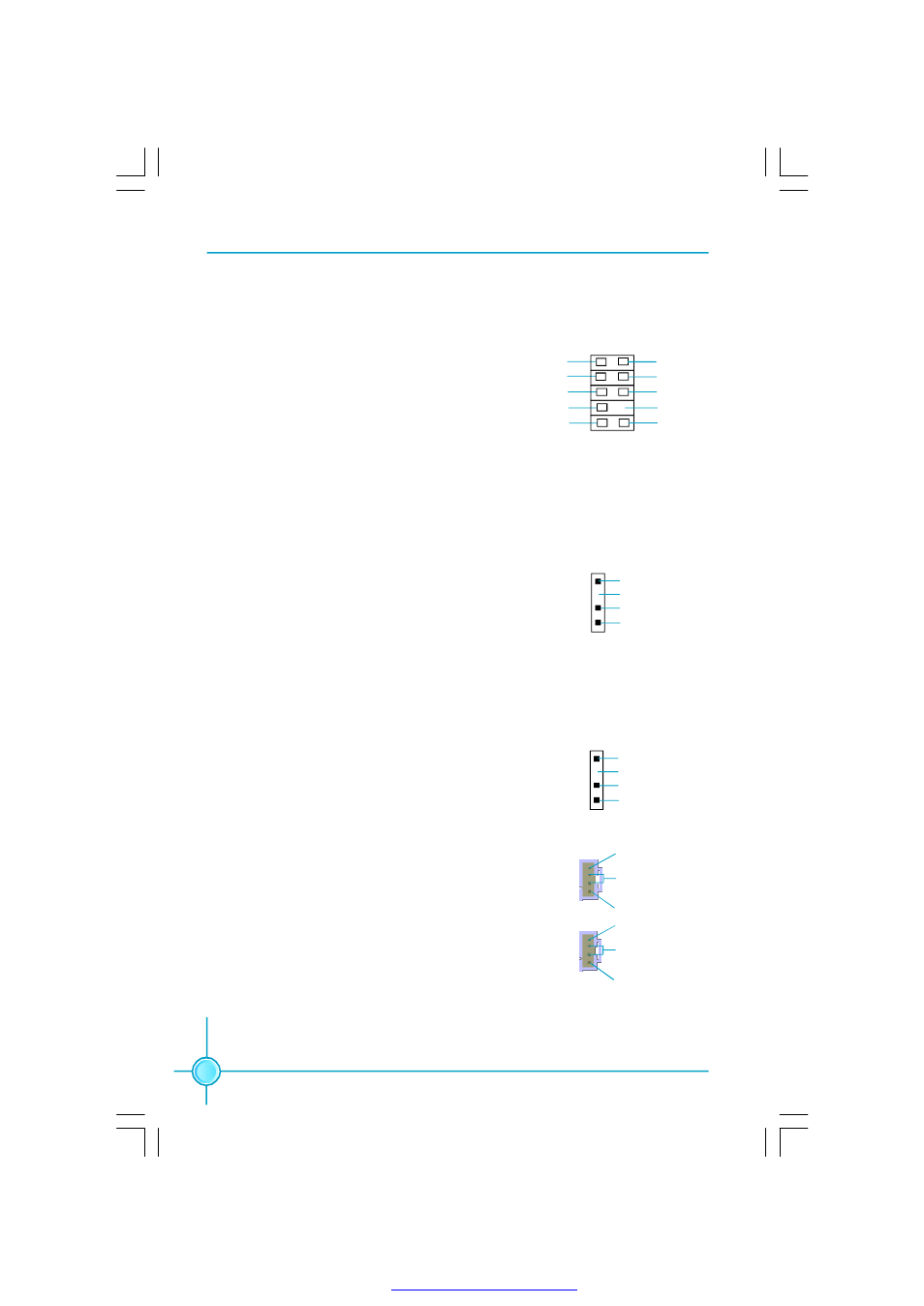

Audio Interface: F_AUDIO
The audio interface provides two kinds of audio
output choices: the Front Audio, the Rear Audio.
Their priority is sequenced from high to low (Front
Audio to Rear Audio). If headphones are plugged
into the front panel of the chassis (using the Front
Audio), then the Line-out (Rear Audio) on the rear
panel will not work. If you do not want to use the
Front Audio, pin 5 and 6, pin9 and 10 must be
short, and then the signal will be sent to the rear
audio port.
S/PDIF Out Connector: SPDIF _OUT
The S/PDIF out connector is capable of provid-
ing digital audio to external speakers or com-
pressed AC3 data to an external Dolby digital
decoder.
Note:The empty pin of S/PDIF cable should be
aligned to empty pin of S/PDIF out connector.
SPDIF _OUT
Speaker Connector: SPEAKER
The speaker connector is used to connect
speaker of the chassis.
SPEAKER
1 SPK (Pull high)
SPKJ
Empty
NC
1 +5V
GND
Empty
S PD I F _O UT
F_AUDIO
MIC_IN
MIC_PWR
N A
AUD_OUT_L
AUD_OUT_R
MIC_GND
+5VA
AUD_RET_R
Empty
AUD_RET_L
10 9
2 1
Audio Connectors: CD_IN, AUX_IN
CD_IN, AUX_IN is Sony standard CD audio
connector, it can be connected to a CD-ROM
drive through a CD audio cable.
CD_IN
CD_L
GND
CD_R
1
AUX_IN
AUX_L
GND
AUX_R 1
