Optical Characteristics
(V
CC
=3.135V to 3.465V, Data Rate=155Mb/sec, PRBS=2 23 -1 NRZ, 9/125 μm SMF)
Parameter Symbol Min. Typ. Max. Unit Note
Transmitter
Output Optical Power (Avg.) P
O -15 -8
dBm
Optical Extinction Ratio E.R. 10 dB
Center Wavelength λ
C
1263 1310 1360 nm
Spectral Width (RMS) σ 7.7 nm
Optical Rise/Fall Time t
r
/t
f
2 ns 1
Output Eye
Compliant with Bellcore TR-NWT-000253 and ITU recommendation
G.957
Receiver
Sensitivity (Avg.)
P
IN
-31 dBm 2
Input Optical Wavelength λ 1310 nm
LOS-Deasserted (Avg.) P
A
-31 dBm
LOS-Asserted (Avg.) P
D
-48 dBm
LOS-Hysteresis P
A
-P
D
0.5 dB
Overload P
O
-3 dBm
Notes:
1. These are unfiltered 10%~90% values
2. The sensitivity is provided at a BER of 1×10 -10 or better with an input signal consisting of 155Mb/s,
2 23 -1 PRBS and ER=9dB.

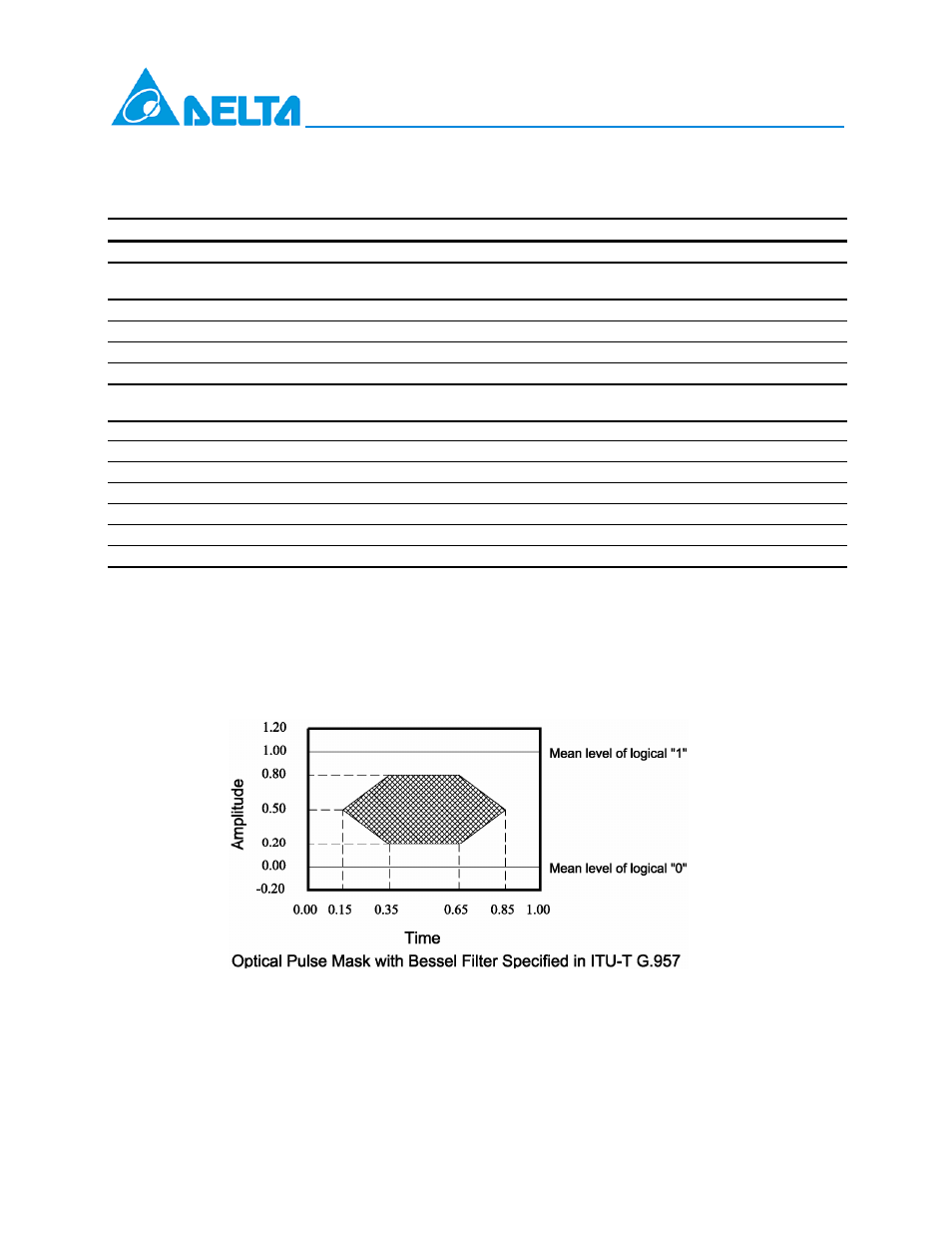

Mask of the eye diagram for the optical transmit signal
