Flowserve CEA Series Limitorque Automax - Manual (Page 25)

25
Limitorque Worcester Controls CEA Series FCD WCENIM2080-00-AQ 12/14
flowserve.com

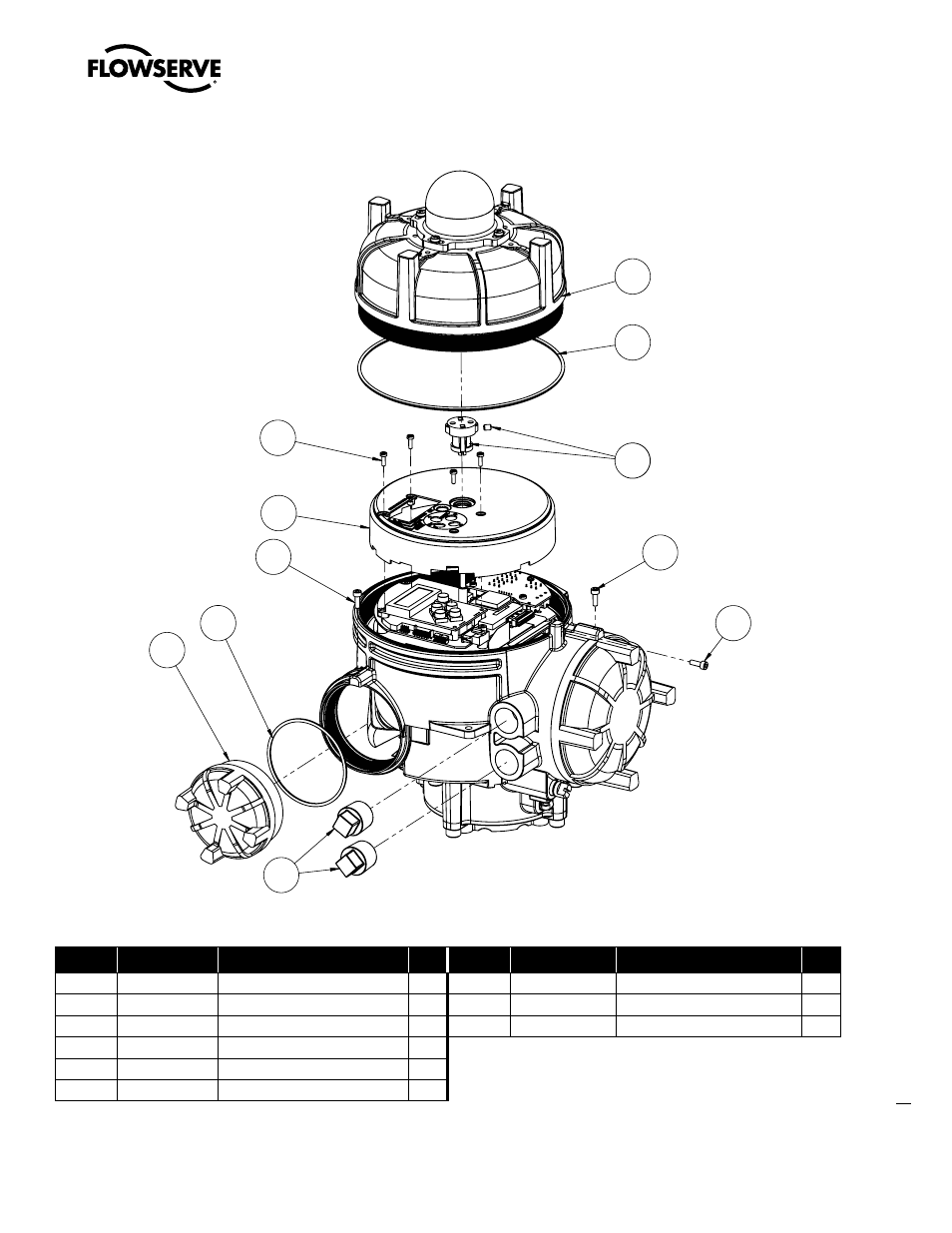

ITEM NO. PART NUMBER DESCRIPTION QTY. ITEM NO. PART NUMBER DESCRIPTION QTY.
15-1 DY102026A EMC Shield, Resin, CEA, 15, 60, 150 1 15-11 EY102004GV Pipe Plug (conduit) 3
15-2 EY102004BH EMI Screws M3x.5X10mm 4 15-13 EY102004M Locking Cover Screws 3
15-3 DY101938A Cover, Controls, CEA, 15, 60, 150 1 19 CY102219A Indicator Assembly Kit 1
15-4 EY102004DE Seal - Control Cover O-ring 1
15-5 DY101936A Cover, Motor, CEA, 15, 60, 150 1
15-6 EY102004DC Seal - Motor Cover O-ring 1
15-5
15-6
15-1
15-2
19
15-4
15-3
15-13
15-11
15-13
15-13
15-11
19
8. Parts List
