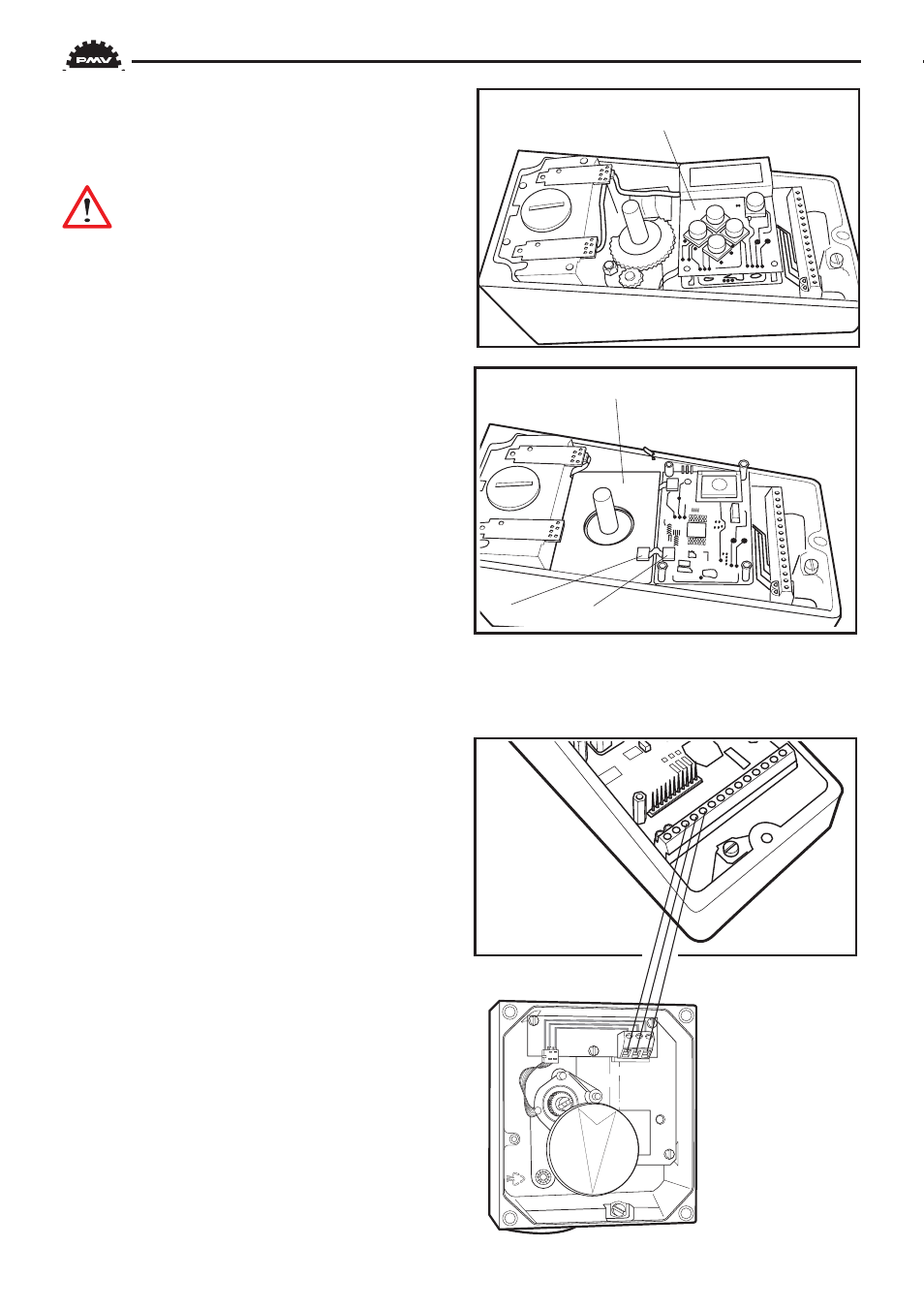

Converting for remote control
Disconnect or switch off the electric
power supply before starting any
work.
• Remove cover and inner cover, see page
37.
• Lift off the display pcb, D.
• Disconnect and secure the pot cable.
• Install transmitter board D3-AS38T , F.
• Install the enclosured wire between G and
O on the transmiter board.
• Connect the wiring between terminals 3, 4,
5 in the D3 unit and 3, 4, 5 in the remote
unit.
Use a shielded wire and ground it in the D3
unit only.
Avoid longer distance than 5 m between D3
unit and remote unit.
F
G
D
O
34
5
3 4 5
