DRAWINGS AND PARTS LISTS

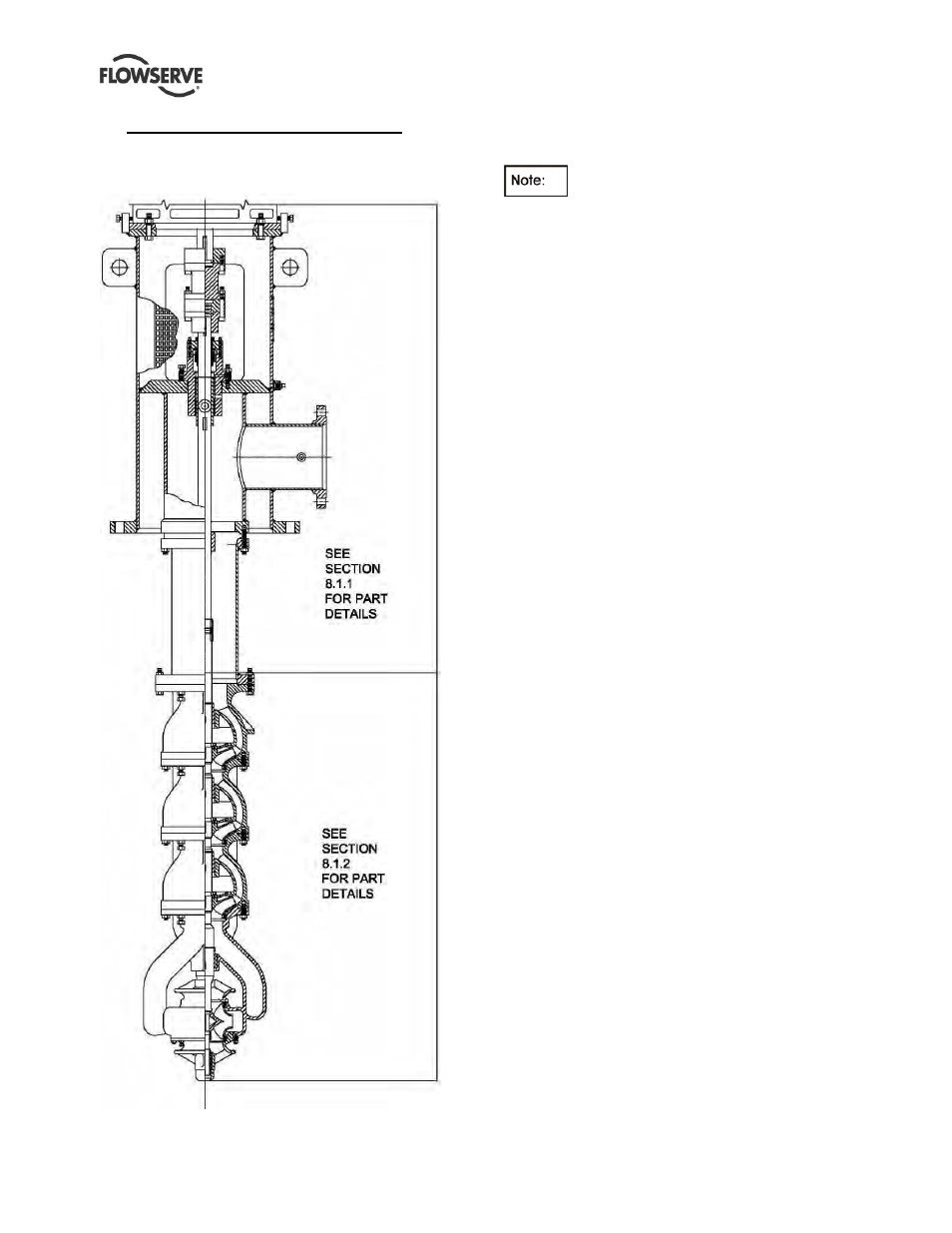

8.1 Cross section: Product lubricated
APKD
Typical wet pit pump
See sections 8.1.1 and 8.1.2 for parts details
All the sectional drawings provided in this
section are typical representations of the most
common pump types and are provided for the
purposes of basic understanding of the equipment.
The details shown may not reflect the specifics of
the pump that has been purchased. Order-specific
cross sectional drawings and parts list can be
purchased from Flowserve separately. Contact
Flowserve for ordering and pricing information on
such drawings and documentation
.
