Mechanical drawing – Delta Electronics S24SA User Manual
Page 12
DS_S24SA1R812_05092006
Pin No.
Name
Function
1
+Vout
Positive output voltage
2
-Vout
Negative output voltage
6
Trim
Output voltage trim
8 ON/OFF
ON/OFF
logic
11
-Vin
Negative input voltage
12
+Vin
Positive input voltage
Optional Pin
Name
Function
4
+Sense (Option)
Positive sense pin
5
-Sense (Option)
Negative sense pin
12

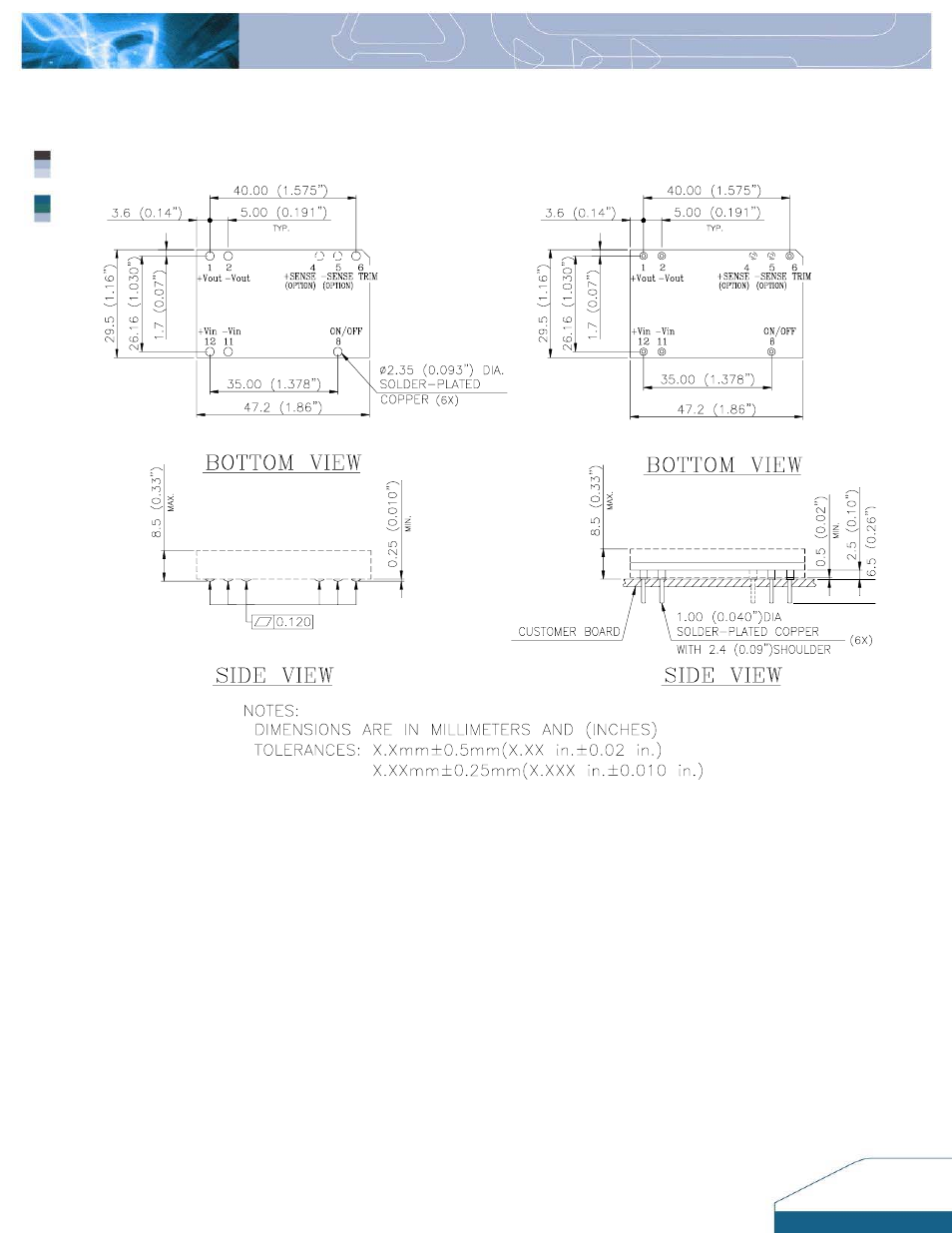

MECHANICAL DRAWING
Surface-mount module
Through-hole module
