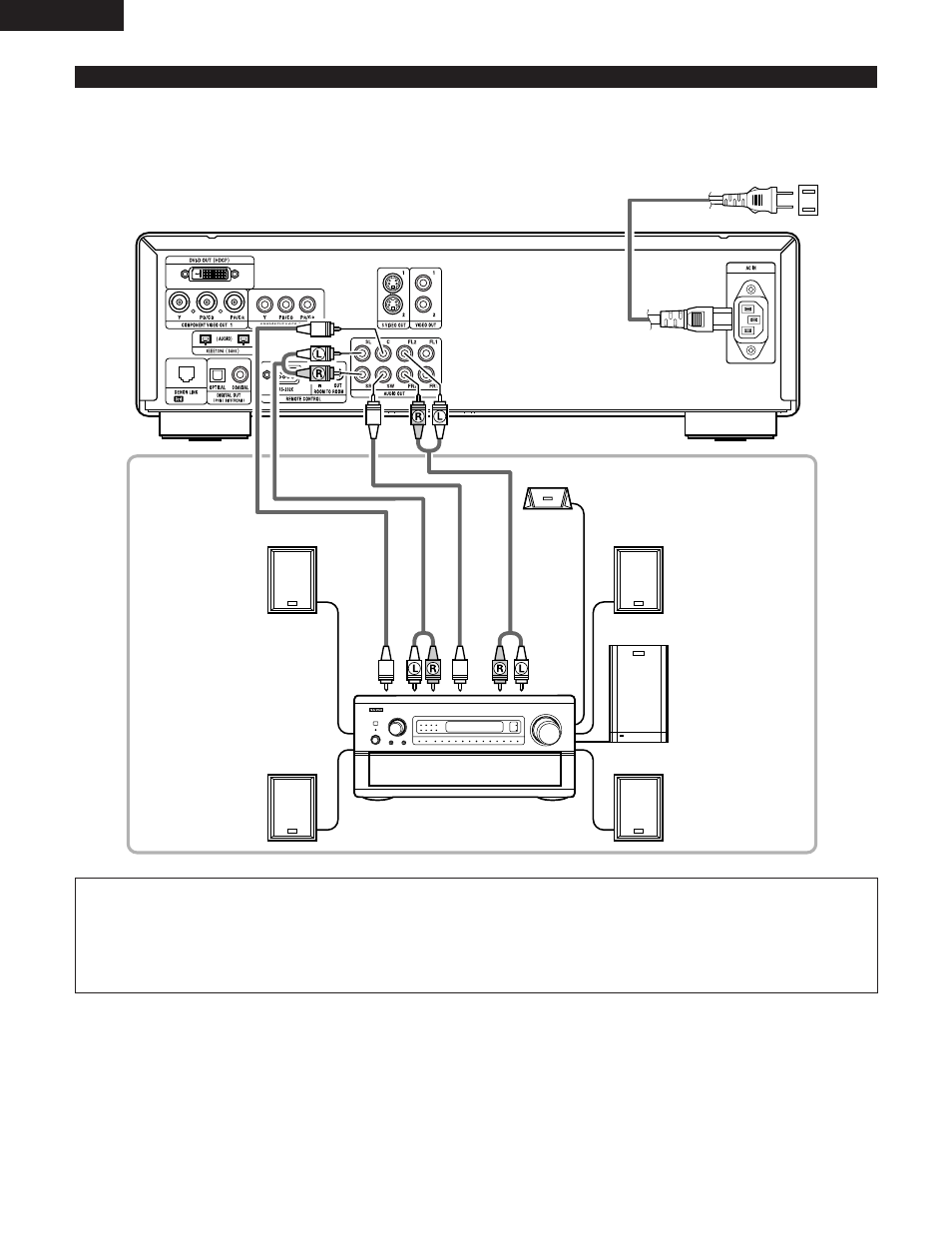

(4) Connecting a basic 5.1-channel surround system
Analog 5.1-channel audio signals can be output from the DVD-5900.
The multichannel audio signals recorded in packed PCM and the multichannnel Super audio CDs can be played when an AV amplifier
equipped with analog 5.1-channel audio inputs is connected.
DVD-5900
Front speaker (left)
Surround speaker (left)
Center speaker
AV amplifier with 5.1-channel input terminals
Front speaker (right)
Subwoofer
Surround speaker (right)
To power outlet
CENTER SURROUND SUBWOOFER FRONT
NOTES:
• For multi-channel connections, set “AUDIO CHANNEL” under “AUDIO SETUP” at “SETUP” to “MULTI CHANNEL” and make the
“SPEAKER CONFIGURATION”, “CHANNEL LEVEL” and “DELAY TIME” settings. (See pages 33 ~ 35.)
• With the DVD-5900, we recommend turning the digital output off and only outputting analog signals in order to keep interference from
the digital output circuitry to the minimum and allow you to enjoy high bit, high sampling frequency, high quality multi-channel sound.
