4 CONNECTIONS
• Read the manuals of all the components when making
connections.
• Keep the power supply cord unplugged until all connections
have been completed.
• If the power is on when connections are made, noise may be
generated and damage the speakers.
• Be sure to connect the left and right channels properly, L (left)
to L, R (right) to R.
• Plug the power supply cord securely into the power outlet.
Incomplete connection may result in noise.
• Binding the power supply cord together with connection cords
may result in humming or noise.
NOTES:

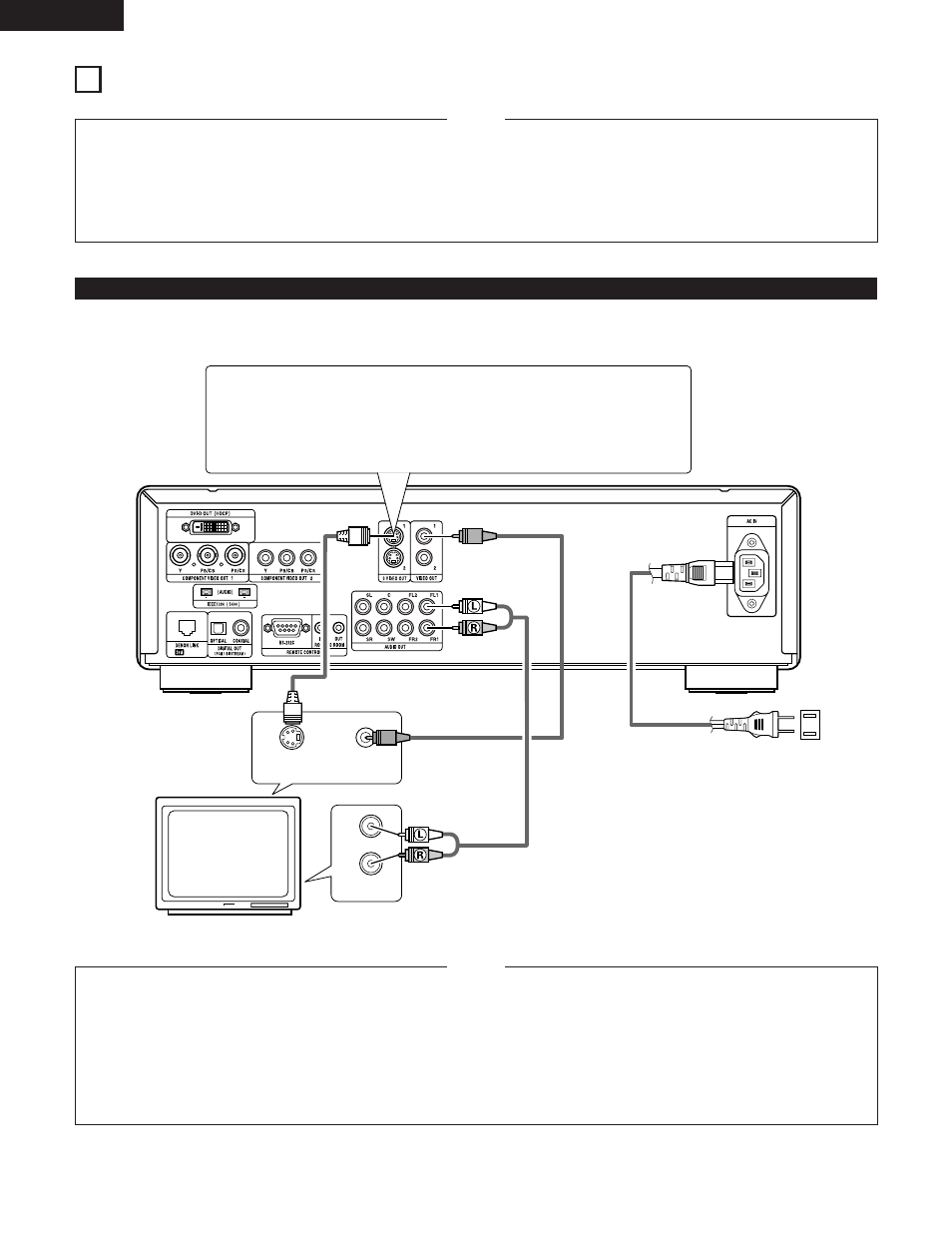

(1) Connecting to a TV
• Use the included audio video cord to connect the TV’s video input connector and audio input connectors to the DVD-5900’s VIDEO OUT or
S-VIDEO OUT and AUDIO OUT.
DVD-5900
TV
S-Video output connector
The video signals are divided into color (C) and brightness (Y) signals, achieving
a clearer picture.
If the TV is equipped with an S-Video input connector, we recommend connecting
it to the DVD-5900’s S-Video output connector using a commercially available
S-Video connection cord.
To power outlet
• Connect the DVD-5900’s video outputs to the TV either directly
or through an AV amplifier. Do not connect it via a VCR (video
cassette recorder). Some discs contain copy prohibit signals.
If such discs are played via a VCR, the copy prohibit system
may cause disturbance in the picture.
• Set the “TV TYPE” in “VIDEO SETUP” in “SETUP” to comply
with your TV’s video format. When the TV is NTSC formated
set to NTSC. (See page 31.)
• To use with 2-channel audio output, set “2 CHANNEL” in
“AUDIO CHANNEL” in “AUDIO SETUP” in “SETUP” at the
initial settings. (See page 33.)
• Set the “TV ASPECT” in “VIDEO SETUP” in “SETUP” to
comply with your TV’s aspect. (See page 31)
• To use with video out or s-video output, set “INTERLACED”
in “VIDEO OUT” in “VIDEO SETUP” in “SETUP” at the
initial settings. (See page 32.)
