2 Connecting an optical fiber cable (commercially available) to the digital audio input connector (OPTICAL)
NOTE:
• Store the dust cap in a safe place, and be careful not to lose
it.
When not using the terminal, attach the cap to protect the
terminal from dust.
Dust cap
Line up in proper direction
Remove the dust cap, line up the cable in the proper directly, then
insert it securely as far as it goes.
NOTES:
• Harsh noise that could harm your ears or damage the speakers is generated when a DVD recorded in DTS is played while using a
decoder, etc., that is not DTS-compatible.
• When playing copyright-protected linear PCM or packed PCM DVDs, in consideration of copyrights, no digital signals are output for
sources exceeding 48 kHz/16 bits. When playing such sources, either set “LPCM (44.1 kHz/48 kHz)” under “AUDIO SETUP” at
“SETUP” to “ON” (see page 36) or make analog connections. (See page 14.)
• When making digital connections to an AV amplifier that is not compatible with 96 kHz/88.2 kHz signals, set “LPCM (44.1 kHz/48 kHz)”
under “AUDIO SETUP” at “SETUP” to “ON”. (See page 36.)
• With Super audio CDs, digital audio signals cannot be output. Use analog connections. (See page 14, 15.)
PHONES
DIRECT
STEREO
ANALOG
EXT. IN
DOLBY
SURROUND
DTS
SURROUND
WIDE
SCREEN
CINEMA /
MUSIC
6.1 / 7.1
SURROUND
VIDEO
ON / OFF
STATUS
M-ZONE 1
FUNCTION
CONTROL
INPUT
MODE
5CH / 7CH
STEREO
DSP
SIMULATION
TONE
DEFEAT
MODE
SELECT
REC /
M-ZONE 2
SURROUND MODE
INPUT
REC SELECT / M-ZONE
MULTI FUNCTION

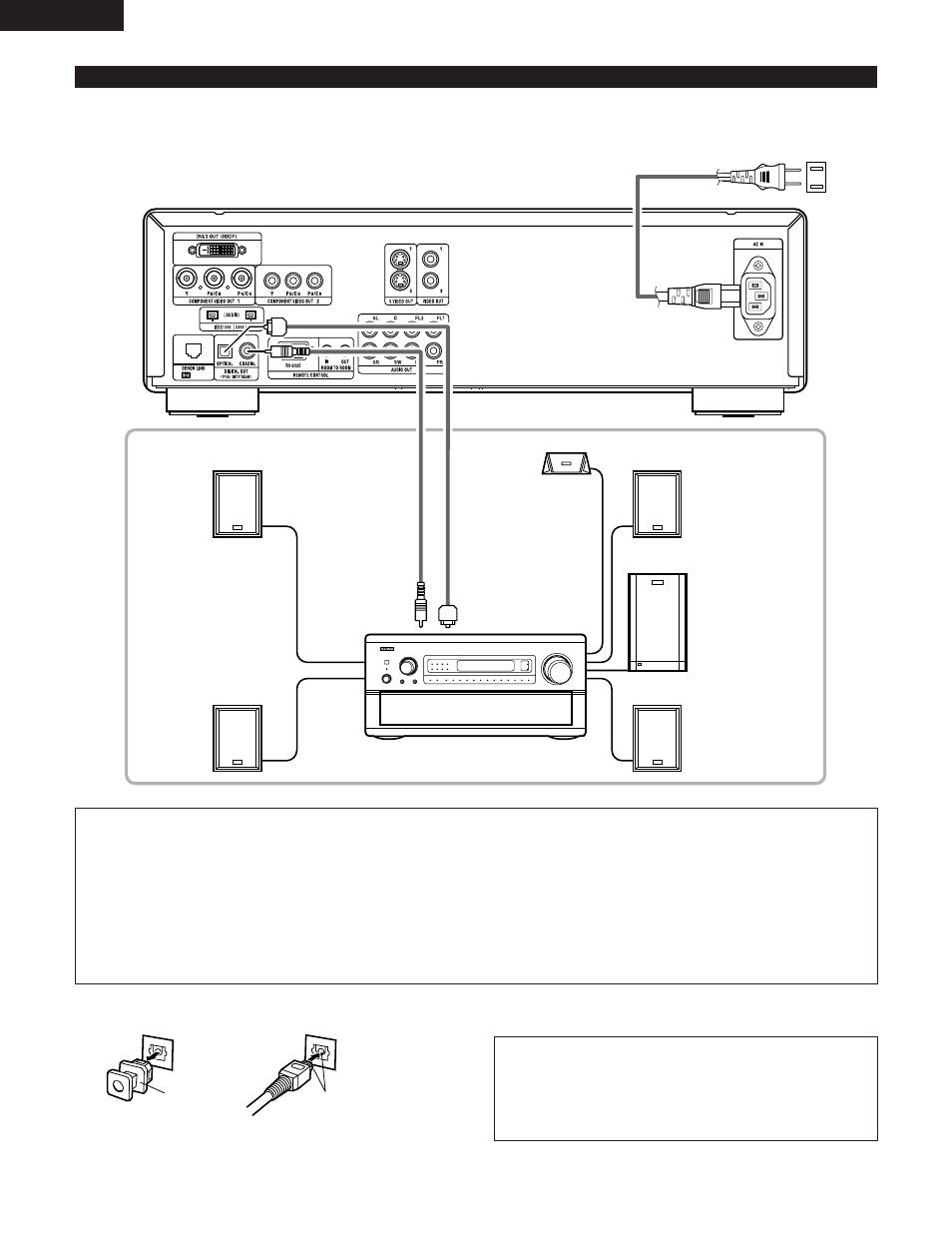

(3) Connecting to a AV amplifier with a built-in decoder
