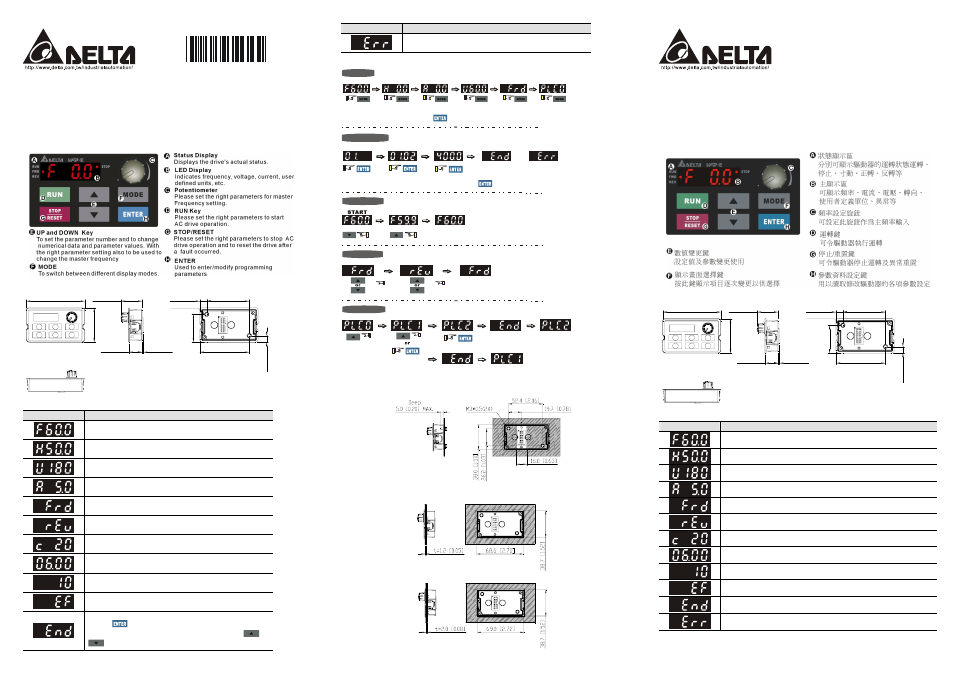

KPE-LE02

Digital Keypad for VFD-E Series

Instruction Sheet

Please thoroughly read this instruction sheet before installation and putting it into use.

The content of this instruction sheet and the driver file may be revised without prior notice. Please consult
our distributors or download the most updated instruction version at
http://www.delta.com.tw/industrialautomation.

X

Description of the Digital Keypad

Y

Dimensions in mm [inch]

71.9 [2.83]

42

.4 [1.

67]

1.5 [0.06]

16.3 [0.64]

52.4 [2.06]

8.6 [0.34]

61.0 [2.40]

34

.3

[1

.35]

8.1

[0

.32

]

25.9 [1.02]

M3*0.5(2X)

Z

Display Messages

Display Message

Descriptions

Displays the AC drive Master Frequency.

Displays the actual output frequency at terminals U/T1, V/T2, and W/T3.

User defined unit (where U = F x Pr.00.05)

Displays the output current at terminals U/T1, V/T2, and W/T3.

Displays the AC motor drive forward run status.

Displays the AC motor drive reverse run status.

The counter value (C).

Displays the selected parameter.

Displays the actual stored value of the selected parameter.

External Fault.

Displays “End” for approximately 1 second if input has been accepted by

pressing

key. After a parameter value has been set, the new value

is automatically stored in memory. To modify an entry, use the

and

keys.

Display Message

Descriptions

Displays “Err”, if the input is invalid.

[

How to Operate the Digital Keypad

To change data

Setting direction

Setting PLC Mode

Setting Mode

Setting parameters

(When operation source is digital keypad)

PLC2 mode active

PLC1 mode active

START

GO START

NOTE: In the selected mode, press

to set the parameters.

Success to

set parameter.

Input data error

or

NOTE:In the parameter setting mode, you can press

to the selected mode.

\

Installation

Method 1. Direct installation (unit: mm[inch])

Method 2. Mounting by the plate thickness (unit: mm[inch])
A. Thickness=1.2mm[0.05 inches]

B. Thickness=2.0mm[0.08 inches]

KPE-LE02

VFD-E

系列之數位操作器

說明書

請詳細閱讀下列說明後才使用本產品,以確保使用安全。

由於產品精益求精,當內容規格有所修正時,請洽詢代理商或至台達網站
(http://www.delta.com.tw/industrialautomation )下載最新版本。

X

鍵盤面板外觀

Y

鍵盤面板鍵盤面板尺寸

71.9 [2.83]

42

.4 [1.

67]

1.5 [0.06]

16.3 [0.64]

52.4 [2.06]

8.6 [0.34]

61.0 [2.40]

34

.3

[1

.35]

8.1

[0

.32

]

25.9 [1.02]

M3*0.5(2X)

Z

功能顯示項目說明

顯示項目

說明

顯示驅動器目前的設定頻率

顯示驅動器實際輸出到馬達的頻率

顯示用戶定義之物理量

(U = F x 00-05)

顯示負載電流

正轉命令

反轉命令

顯示計數值

顯示參數項目

顯示參數內容值

外部異常顯示

若由顯示區讀到

End 的訊息(如左圖所示)大約一秒鐘,表示資料已被接受並

自動存入內部存貯器

若設定的資料不被接受或數值超出時即會顯示
