Amulet High Definition IP Television Receiver User’s Guide
Copyright
2010 Entone, Inc. All rights reserved
.
16
CONNECTING THE TV USING HDMI (CABLE NOT PROVIDED) OR COMPONENT
1. Acquire the required cable. Component cable comes packaged with the Amulet. HDMI cable is not
packaged with the Amulet.
Before purchasing the cable, consult your TV owner‘s manual to confirm
that your TV supports the video signal output that you plan to use.
2. Connect the video and audio cables to the Amulet. (HDMI does not require separate audio cable
connection.)
3. Connect the opposite end of the video and audio cables to the matching input in the TV.
4. Plug in your TV and turn on the power using your TV remote control. Use your TV remote control to
select the respective video input that has connected to the Amulet. Consult you
r TV owner‘s manual for
instructions as required.
5. Plug in your Amulet and turn on the power.
6. You should now see the output from the Amulet on your TV screen.

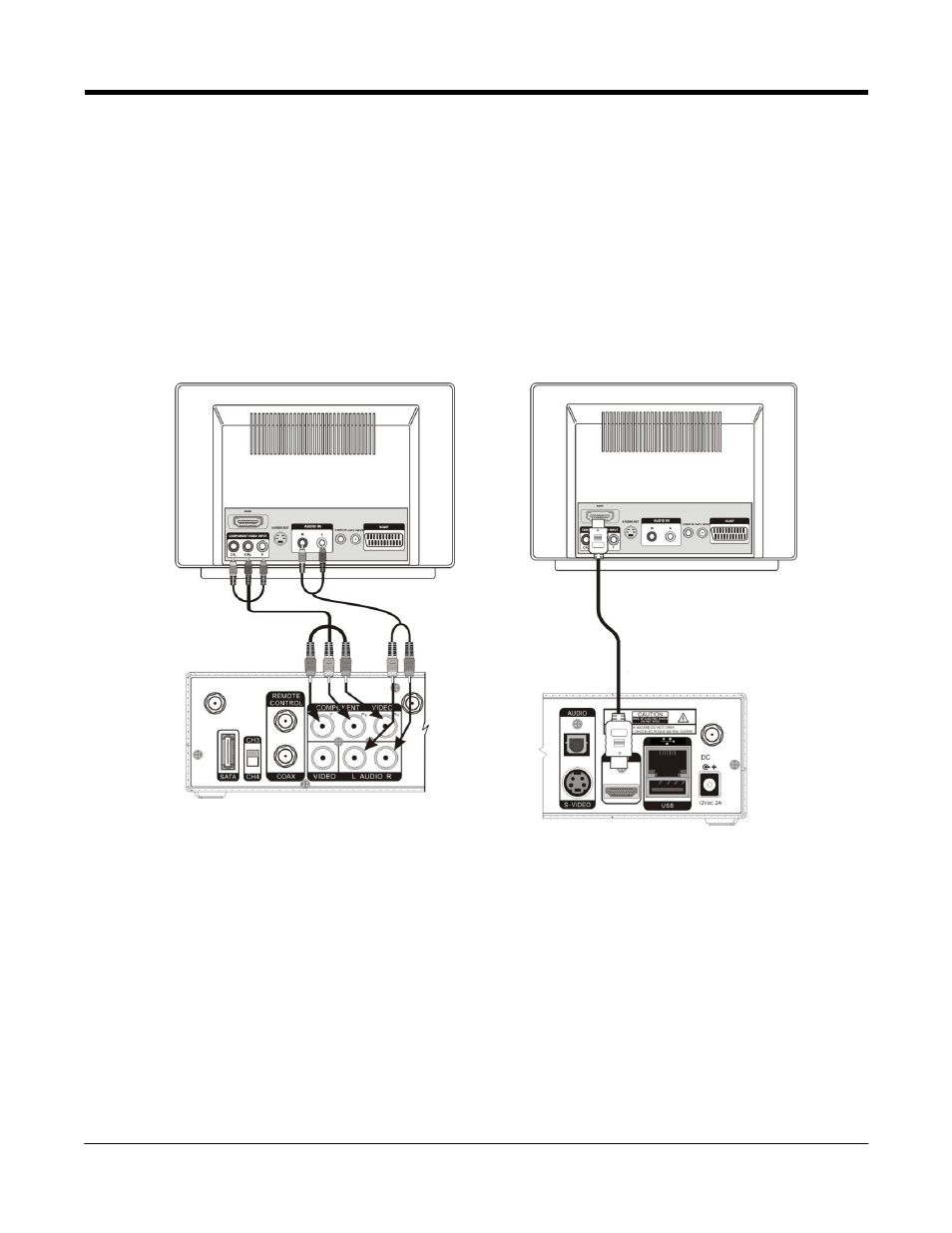

Figure 4-9 Connecting TV using Component and Composite Audio Figure 4-10 Connecting TV using HDMI
NOTE:
When the HDMI connection cannot be verified by your TV, disconnect the HDMI cable and then
connect it again, or turn off the TV and then turn it on again.
Analog DVI is not supported. If your TV supports digital DVI but not HDMI, you can use an HDMI to DVI
convector cable or adaptor to connect the Amulet HDMI to the TV DVI. In this case, you need to
connect the audio cable separately.
Be sure to use an HDMI cable with the HDMI logo.
If your TV does not support multi-channel audio, the Amulet will output PCM audio only.
Please refer to the next section to set the Component and HDMI output resolution.
