Page 8
F18 Series Service and Installation Manual
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
8
Delfield
™
®

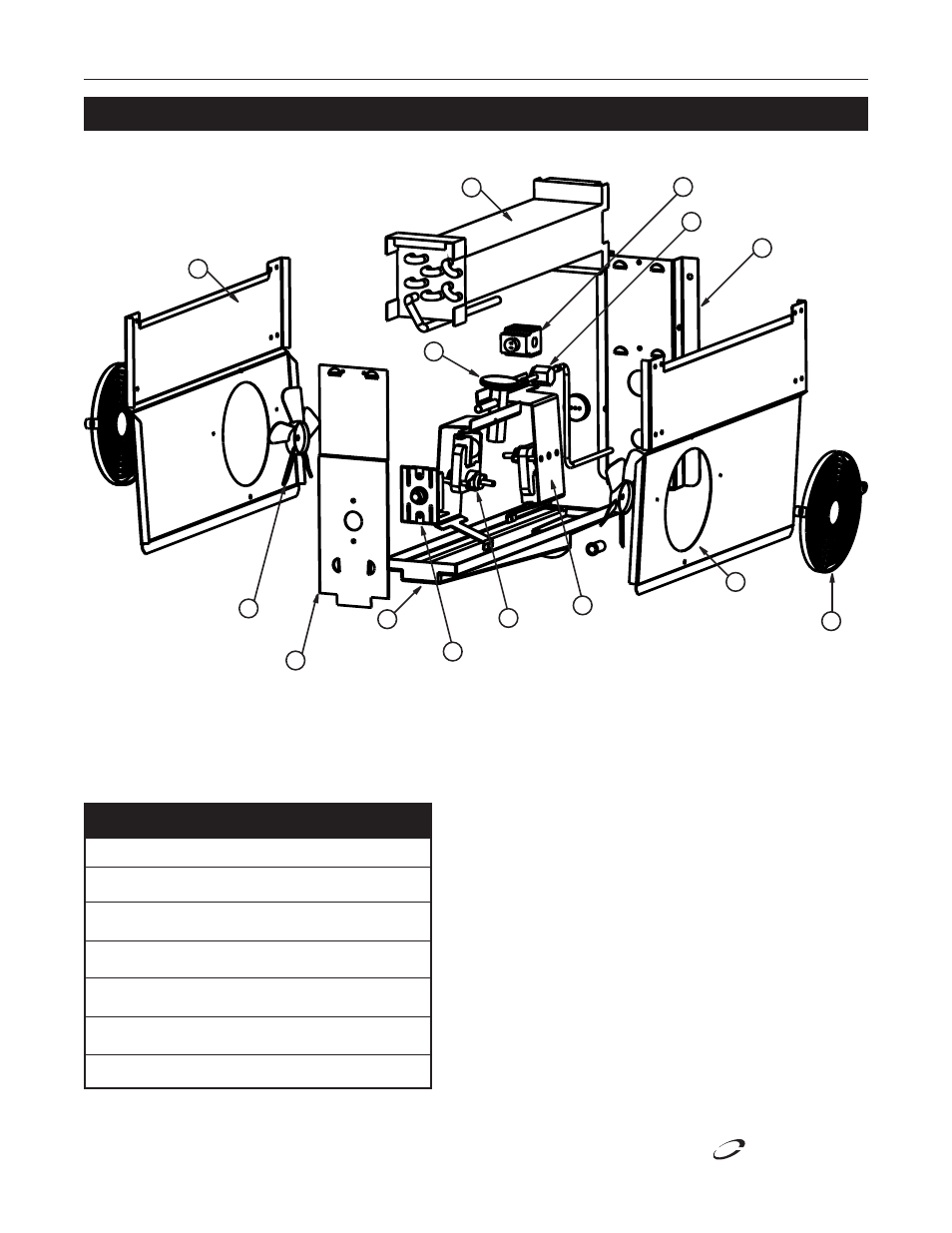

Coil Assembly - refrigerators
DELFIELD
KEY
PART#
DESCRIPTION
1
PMK00036
pan, drip, evap. coil, refg.
2
AMK00012
coil back
3
AMK00011
coil side
4
SMK00285
bracket, mounting, fan, evap, coil
5
3516173
guard, fan, 6.38” dia., lexan
6
3516095
coil, evap.
7
AMK00013
coil front
8
3516172
blade, fan 5.56, CCW, lexan, clear
9
2162691
motor, fan, 115V
10
3516273
valve, expansion, 1/4, hi, R-404A
11
3516103
solenoid coil
12
3516102
solenoid valve
13
2194536
thermostat
XMK00107 EVAPORATOR COIL ASSEMBLY
Coil assembly is standard with above parts, less solenoid coil, solenoid valve
and thermostat.
Unit: F18WC
XMK00108 EVAPORATOR COIL ASSEMBLY
Coil assembly is standard with above parts less the thermostat.
Unit: F18DC91 & 99; F18DR79 & 97; F18RC91 & 99; F18WR79 & 87
XMK00109 EVAPORATOR COIL ASSEMBLY
Coil assembly is standard with above parts less the thermostat.
Unit: all other refrigeration units, except those listed for XMK00107. This
assembly is also used in conjunction with units listed for XMK00108.
5
3
4
9
1
8
3
6
11
12
13
7
2
10
