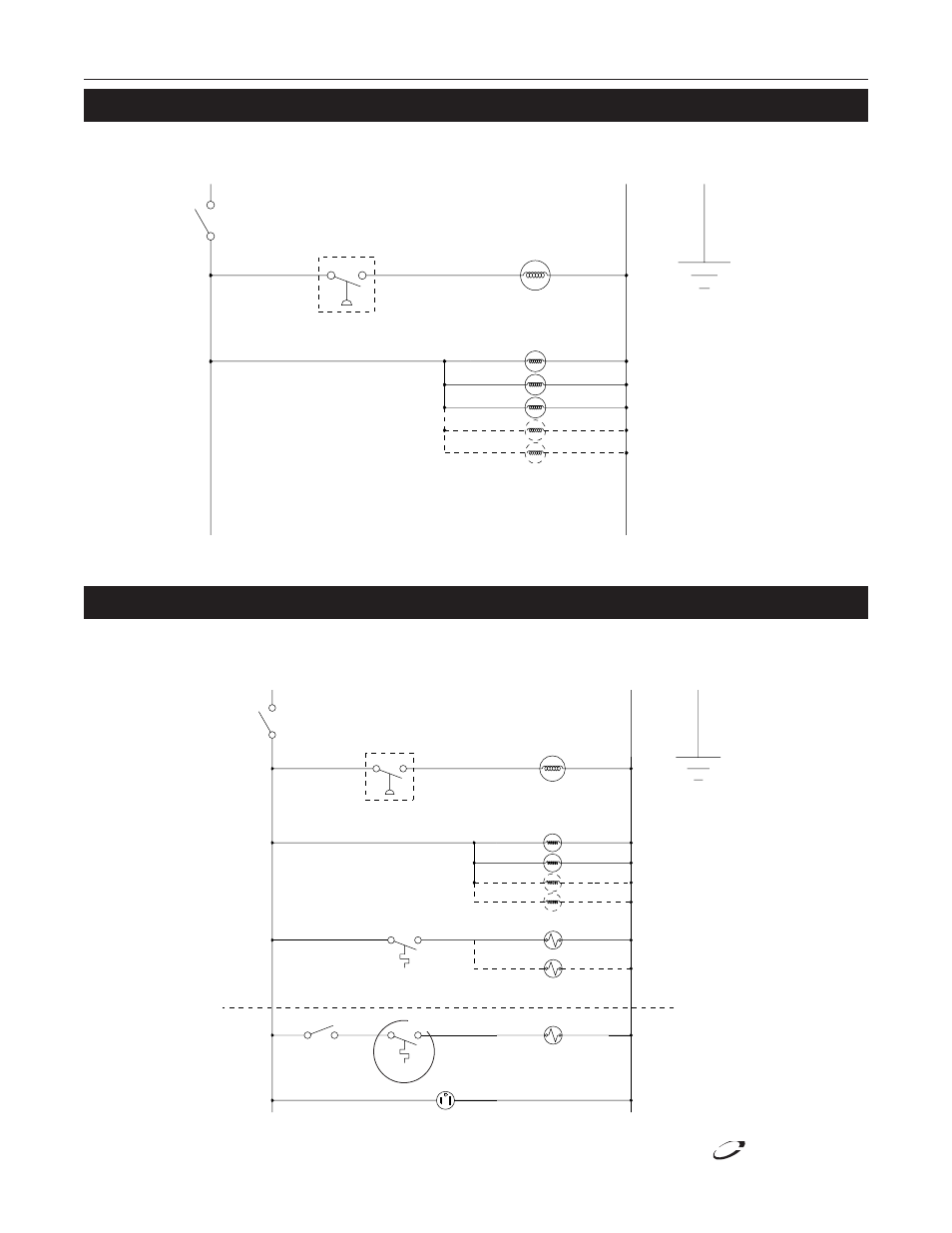

Wiring Diagram:
Refrigerated Base Work Tables
L1
L2
CONDENSING UNIT
ON/OFF SWITCH
ON 115 VOLT MODELS ONLY
L2 IS THE NEUTRAL
POWER CORD
PROVIDED ON
SELF-CONTAINED
MODELS
G
PRESSURE CONTROL
EVAPORATOR FAN(S)
F18WC
Wiring Diagram:
Refrigerated Base & Reduced Rail Tables
L1
L2
CONDENSING UNIT
ON/OFF SWITCH
ON 115 VOLT MODELS ONLY
L2 IS THE NEUTRAL
POWER CORD
PROVIDED ON
SELF-CONTAINED
MODELS
G
PRESSURE CONTROL
T'STAT
SOLENOID VALVE(S)
EVAPORATOR FAN(S)
SWITCH
SOLENOID VALVE
BASE
RAIL
T'STAT
RECEPTACLE FOR OPTIONAL
FAN PACKAGE
F18MC, F18SC, F18BC & F18RC
*NOTE: with LiquiTec
same drawing but
remove receptacle for
optional fan package.
*Not on LiquiTec
Only on LiquiTec
