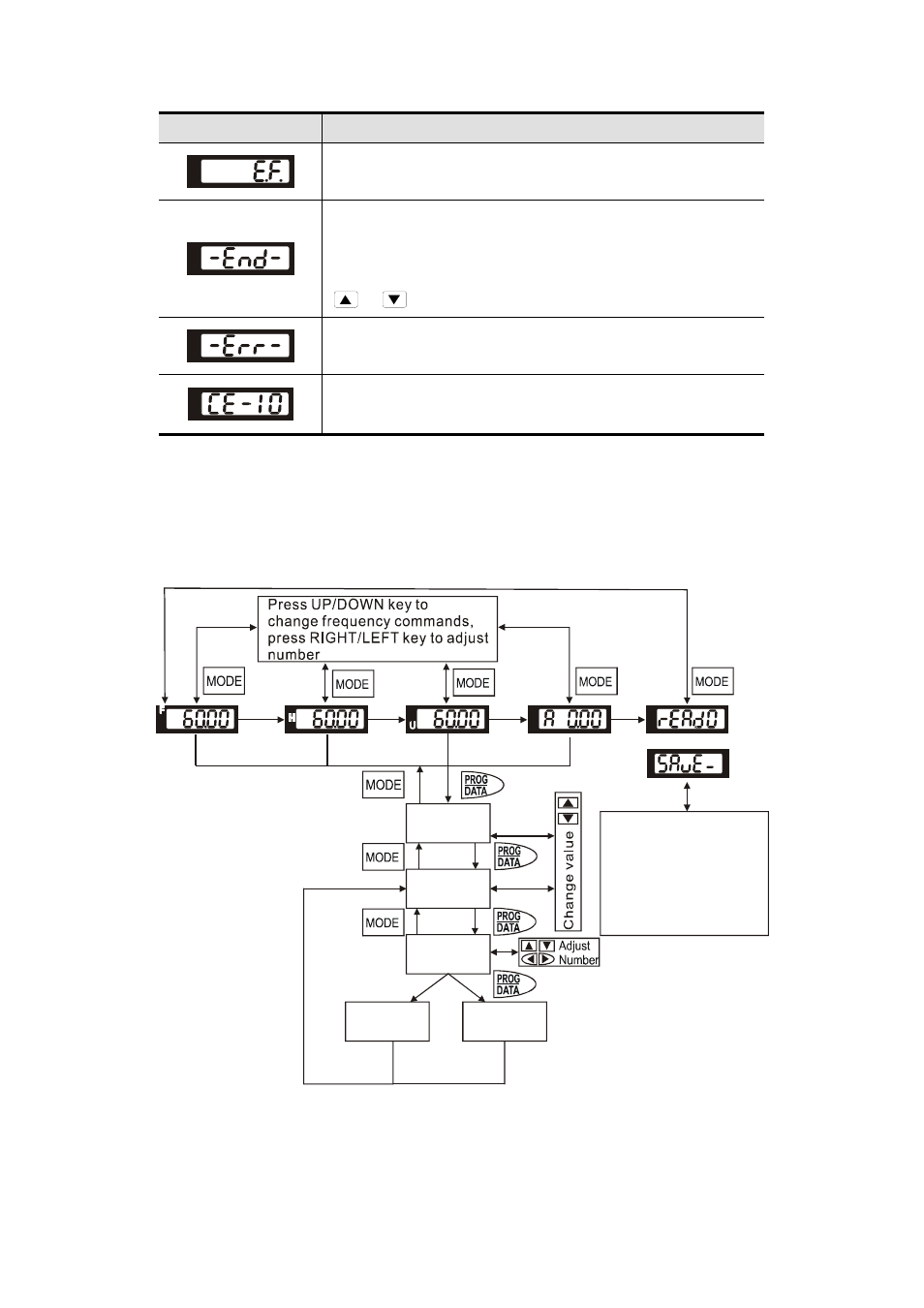

Display Message Descriptions
External Fault
“End” displays for approximately 1 second if the entered input data have been
accepted. After a parameter value has been set, the new value is automatically
stored in memory. To modify an entry, use the
or keys.
“Err” displays if the input is invalid.
Communication Error. Please check the AC motor drive user manual (Chapter
5, Group 9 Communication Parameter) for more details.
Z
Operation Flow Chart
XX
XX-XX
XXXXX
-END-
VFD-PU06 Operation Flow Chart
Program
Error
-ERR-
Or
Program
Successful
Press UP key to select
SAVE or READ.
Press PROG/DATA for
about 2 seconds or until
it is flashing, then save
parameters
or read parameters
.
from PU06 to
AC drive
from AC drive to PU06
