Ethernet Control Interface Configuration (Continued)

11

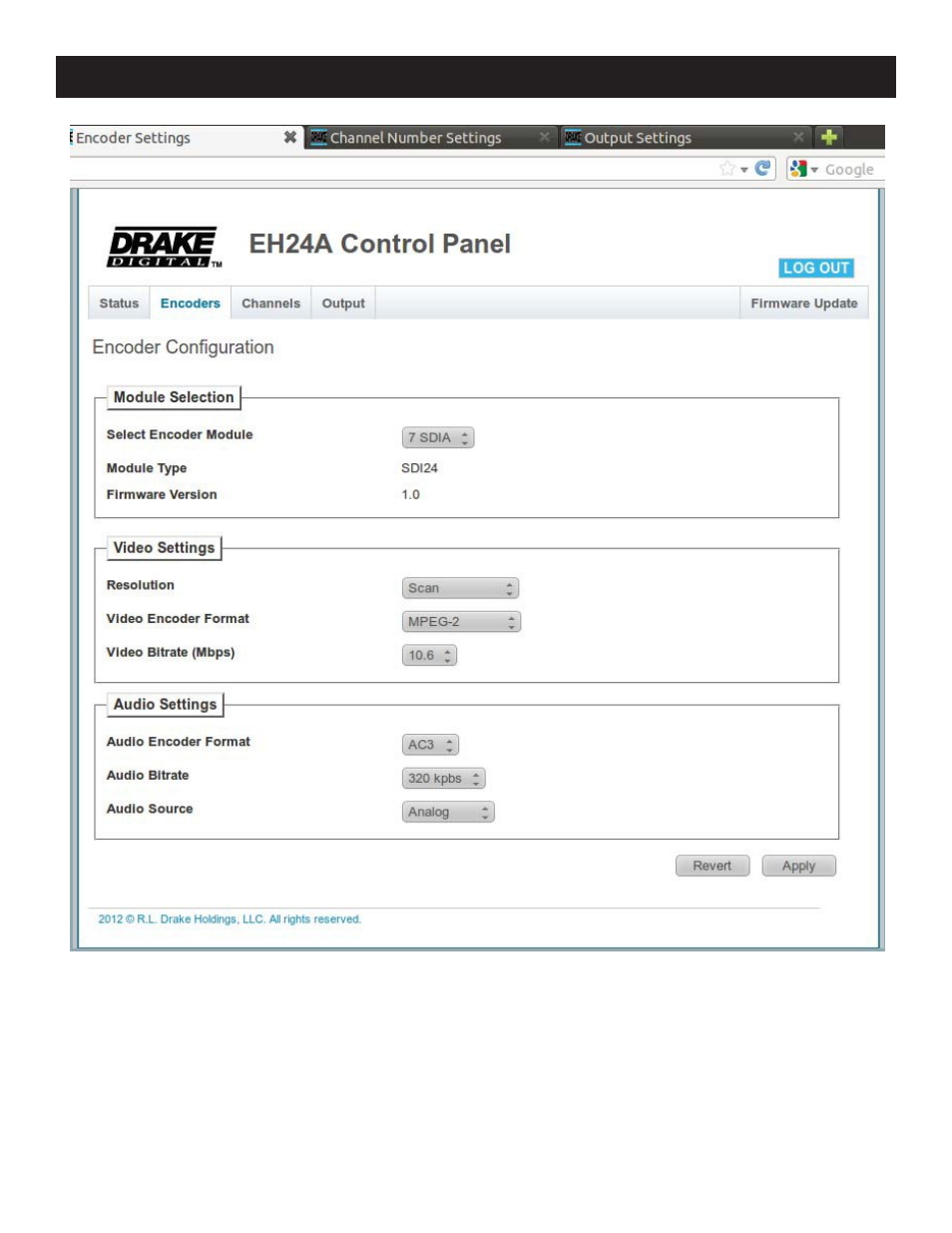

Figure 2: EH24A Encoders Tab

The Encoders tab allows you to set each encoder's individual parameters. Select an encoder module from the drop-down

menu, and the appropriate setting selections will be displayed.
