DNF Controls GC-32 GPIO Controller User Manual
Page 10
Page 10 of 14
CONNECTORS- GPI, GPO
GPIO CONNECTORS:
4 x 37-Pin Female (D37F)
GPI 1 – 16, GPI 17 – 32, GPO 1 – 16, GPO 17 - 32

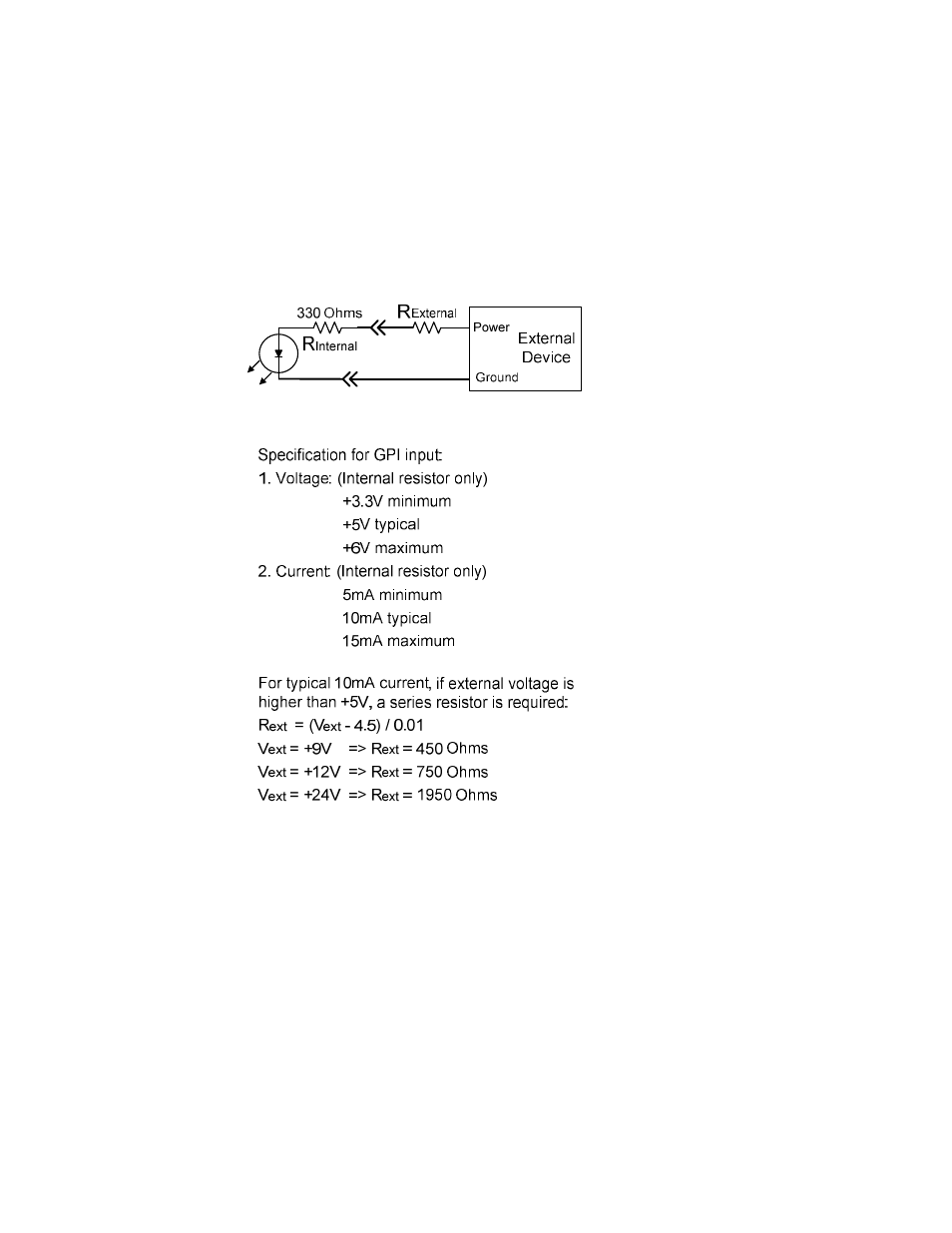

GPI
: Opto Isolated Input.
GPI source must provide power to turn on opto-isolator.
GPO
: Relay Contact Closure Output.
Dry contact closure.
GPO Relay Contacts:
0.5 A @ 125VAC
1.0 A @ 24VDC
1.0 A MAXIMUM CURRENT
