Polar Mount with Power Declination
(1PC Antenna Only)
2” x 2” Sq Tube

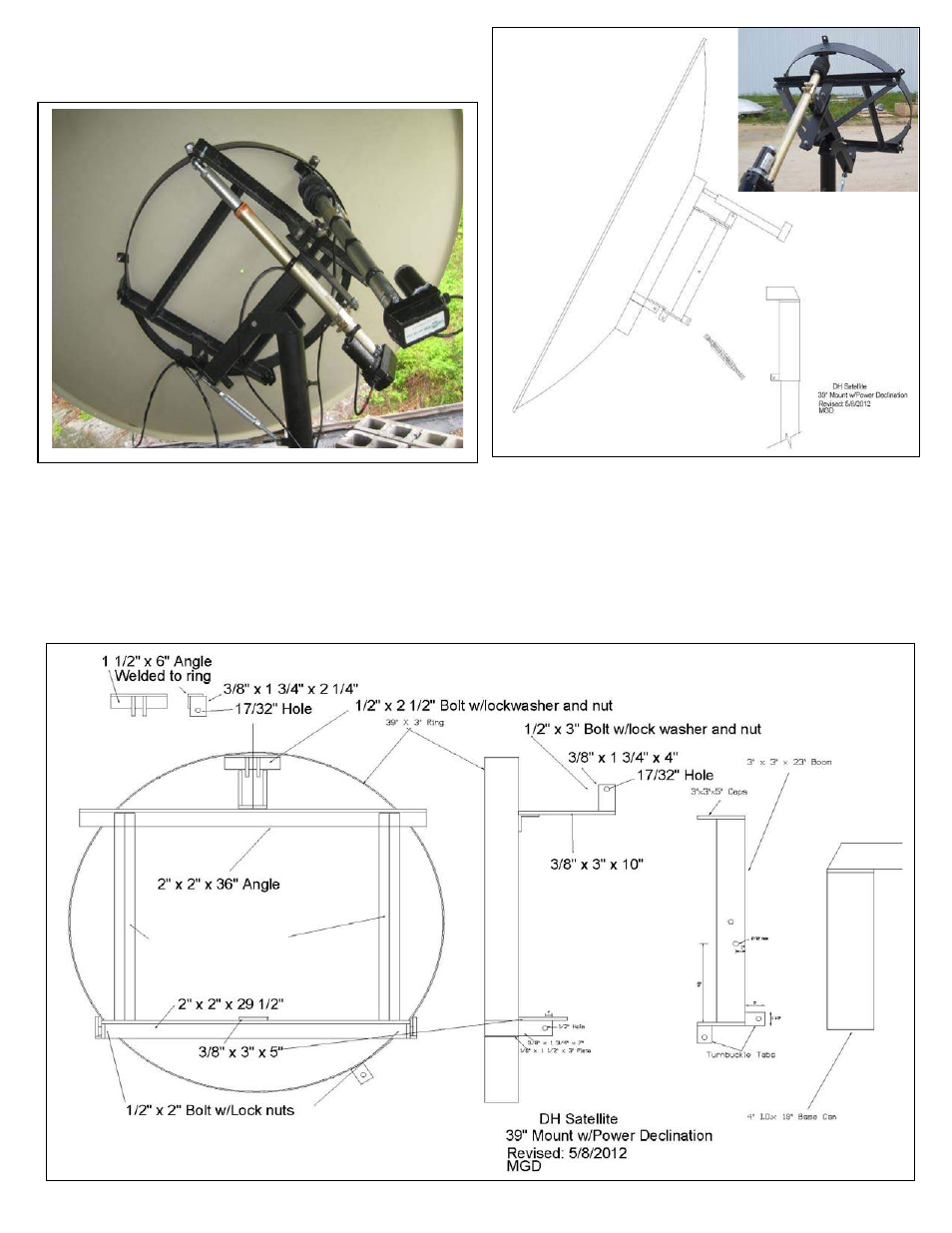

Look at the drawing above. This may not be exactly your system but the working is the same. With the polar mount
you will have one actuator for the Azimuth movement and the other for the Elevation movement. Unless otherwise
ordered, both actuators will come with reed sensor motors. Typically this system is assembled but if yours, for
shipping purposes, is in parts, you can assemble according to the photos below. The ½” Bolts are supplied with the
washers and nuts for assembly.
The following pictures show the assembly of the 39” ring with the power declination and the bolts are
labeled. To set the system up, set the boom to your latitude and move the power declination to the offset angle
for your location. This should be your start position for tracking.
