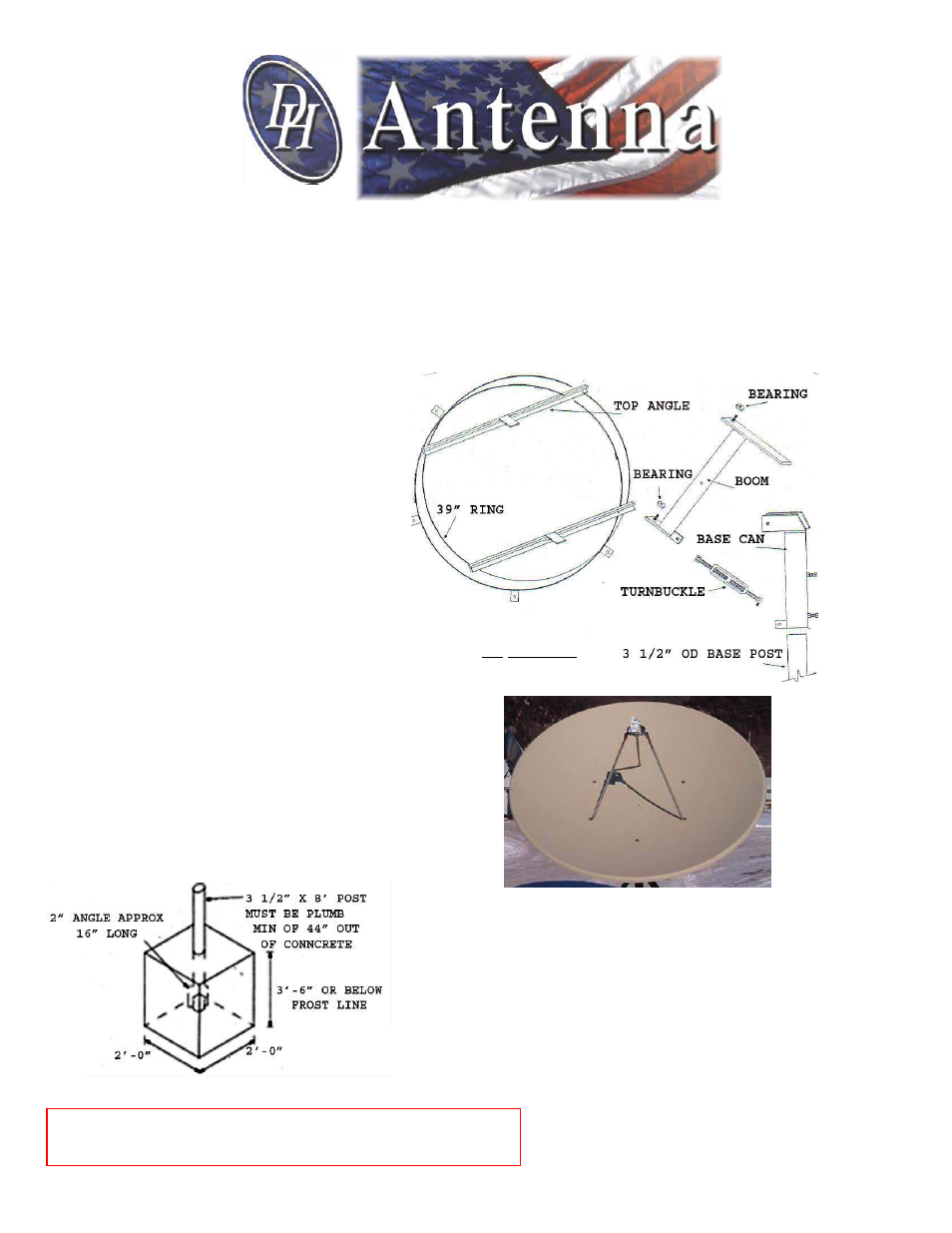

39” POLAR “A” MOUNT
INSTALLATION INSTRUCTIONS
DH antenna is the largest selling antenna in the United States with over 200,000 installations to date. It is
important to follow the instructions carefully to insure the optimum performance of your system. Any minor
variation can significantly affect your picture.
INSTALLATION OF BASE POST
FIG# 2
A hole approximately 18" in diameter and 3 1/2" deep (more
for 10' post) should be dug. With the post in the hole and
perfectly plumb, pour cement so that 44" of the pipe protrudes
above ground. Cement may be poured into the post as well for
more rigidity. Let set overnight. Remember post must be
exactly plumb!
A" MOUNT
39" RING
DH SATELLITE
P.O. BOX 239
PRAIRIE DU CHIEN WI 53821
PH: (608) 326‐8406
FAX: (608) 326‐4233
8 A.M. TO 5 P.M. C.S.T.
Sectional antennas must be handled with care not to
twist or distort sections while handling for installation.
2” x 2” x 36”
2” x 2” x 33”
FIG# 1
PARTS LIST
1- DH Spun Aluminum Antenna
1- DH Mount: 39” Round Frame
Base
Can
Boom
3- Feed Struts for 6 Tab Ring
4- Feed Struts for 8 Block Ring
1- Locking Bar
1- Feedhorn Collar
(C13F or KU3FL 1PC Antenna)
(C14F or KU4FL 4PC Sectional Antenna)
1- Base Post (Optional)
1- Bolt Bag to include all Hardware
(see page 7)
