ATTACHING BACK FRAME TO DISH
Place antenna face down on flat surface and lay round frame on top, approximately centered. Center frame
by measuring four directions from center hole. Bolt thru the six tabs using rubber washers on both sides of
the dish. NOTE; Steel tabs may need to be bent slightly for perfect alignment.
ALSO NOTE: THREE OF THE BOLTS MUST BE
REMOVED TO ALLOW FOR AFFIXING FEED
STRUTS TO DISH
TOP CROSS BAR HAS
ADJUSTABLE DECLINATION
& LONG BEARING PLATE
PREPARING FEED ASSEMBLY
Adjust the scalar ring for the proper wave-guide setting according to the focal length chart on the next
page. Take the open end of the strut and slide it into the feed collar. Align the holes. Insert the ¼” x 1
½” bolts through the collar and strut, fasten with the ¼” nuts. Bolt the feedhorn onto the collar with ¼”
x ¾” bolts, not supplied by DH. Most feed have a 3-bolt pattern on the scalar just for attaching to the
collar.

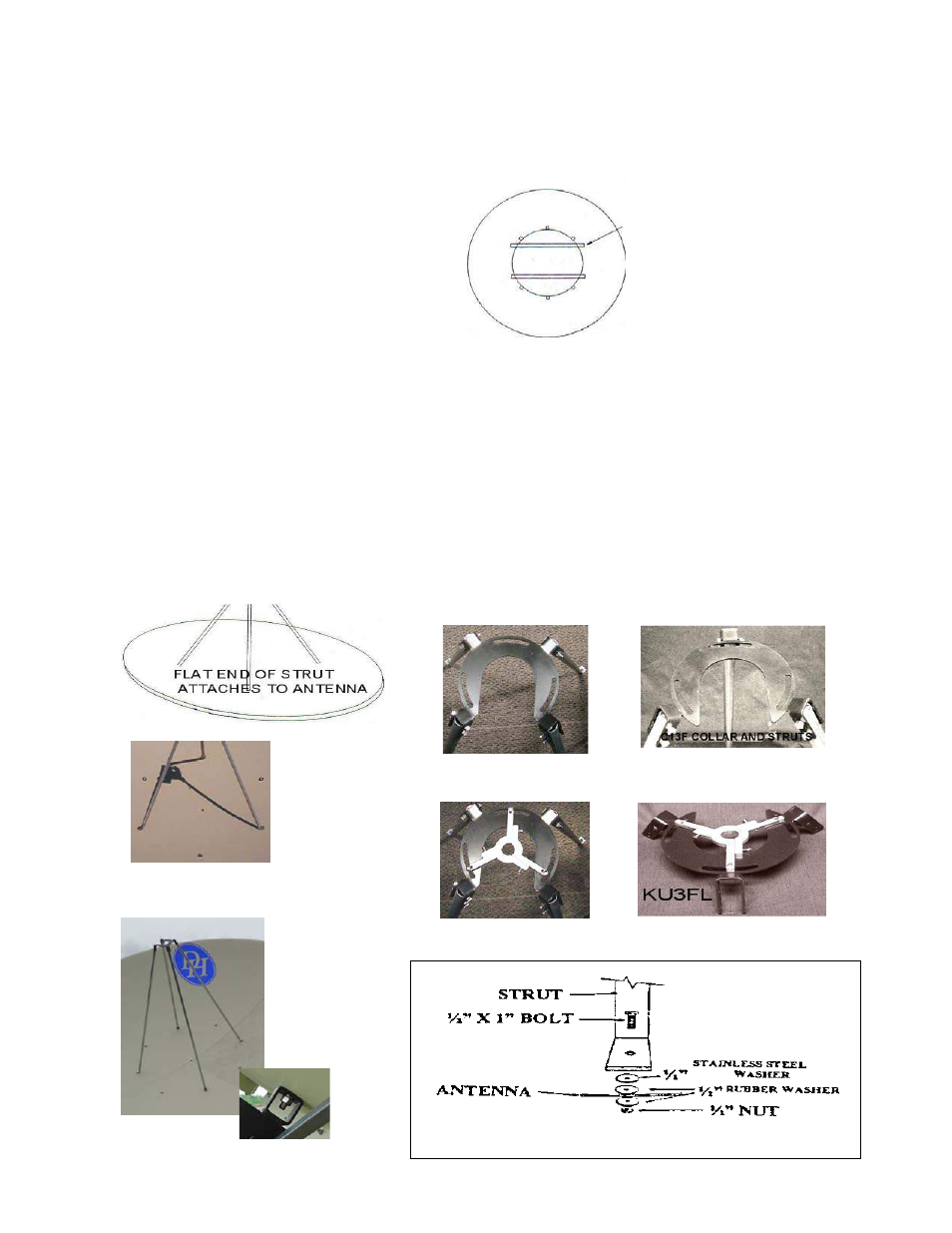

Place the flatten end of the struts onto the antenna and use the bolts supplied (1/2” x 1 ½”) to fasten the
feed to the dish/mount. See diagram below. Use every other hole. Check with a focal finder to be sure
the feedhorn is at the proper focal length and pointed directly at the center of the antenna.
Strut Local on Ring Face of 4PC Sectional
Antenna 8 Block Ring
C14F COLLAR AND STRUTS
KU4FL
Page 3
6 TAB 1PC ANTENNA
Strut Local on Ring Face of 1PC Antenna
6 Tab Ring
