DH Satellite 60 Horizon to Horizon/Powered Dec - Manual (Page 21)

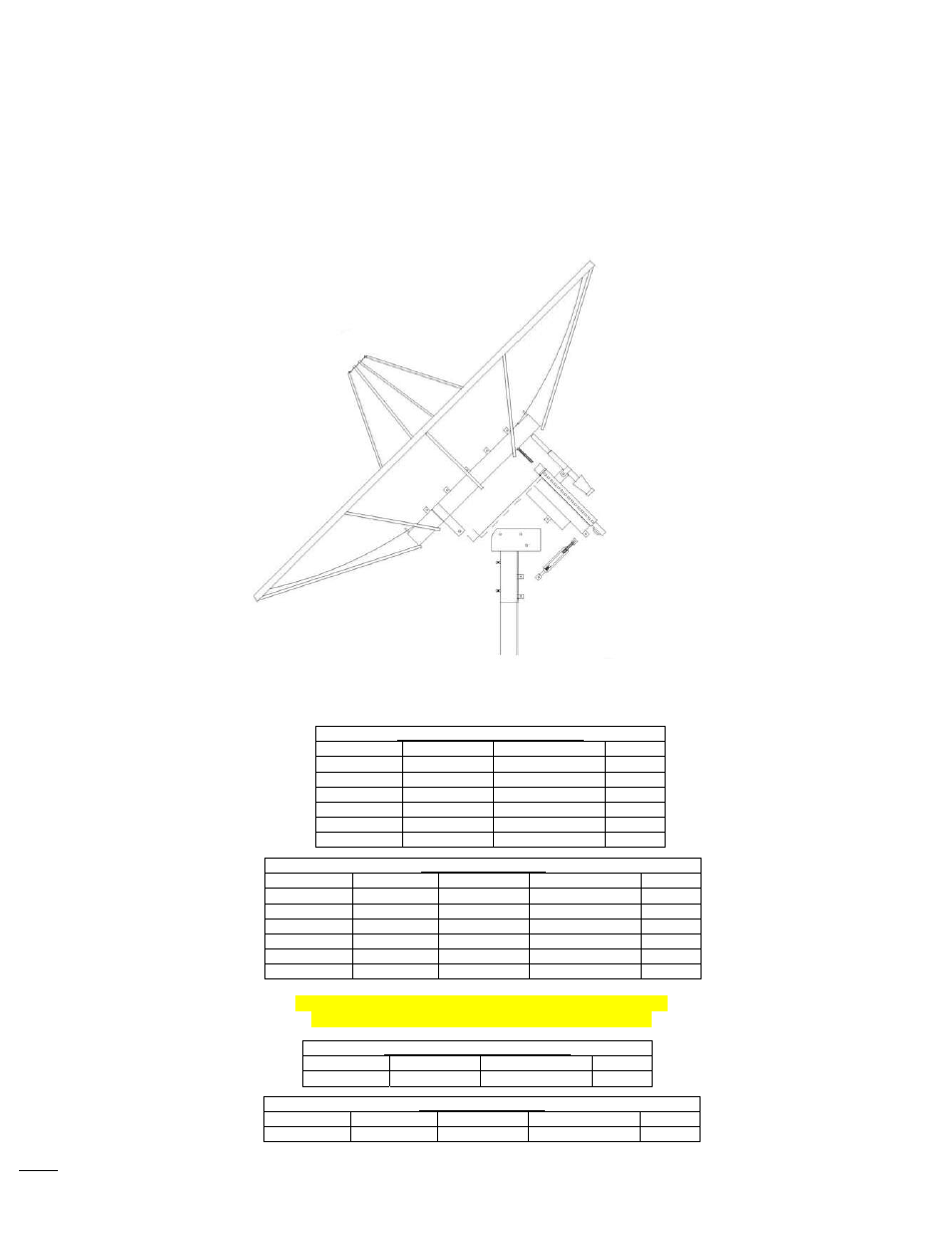

Horizon-to-Horizon Mount
With Power Declination Option ____________________________________
Splice Straps: Sectional
Antenna Size Splice Straps ¼” x ¾” Bolts ¼” Lock Washers ¼” Nuts
3.0M 4 8 8 8
3.7M 4 8 8 8
3.8M 4 8 8 8
4.2M 8 16 16 16
4.5M 8 16 16 16
5.0M 8 16 16 16
Antenna to Ring
(16 Block)
16- ½” x 3” Bolts
16- ½” Flat Washers
32- ½” Rubber Washers
16- ½” Lock Washers
16- ½” Nuts Base Can to Mount
2- ¾” x 7” Bolts
2- ¾” Nuts
2- ¾” Lock Washers
2- ¾” Flat Washers
Turnbuckle
1- Turnbuckle
2- ½” x 1 ½” Bolts
2- ½” Lock Washers
2- ½” Nuts
1- 8” Spade Bolt
NOTE: SECTIONAL ANTENNAS INCLUDE ADDITIONAL HARWARE,
SEE TABLES BELOW
Page 14
C14F
Feed
Ass e m bly
1- Set of 4 Struts
1- C
o llar (C, Ku)
8- 1/4” x 1 1/2” Bolts
8- 1/4” Lock Washers & Nuts
Back Braces
8- Back Braces
8- Brace Clips
8- Bent Tabs
8- ½” x 1 ½” Bolts
24- ½” Nuts
8- ½” Lock Washers
8- 3/8” x 1 ½” Bolts
8- 3/8” Nuts
8- 3/8” Lock Washers
16- ¼” x ¾” Bolts
16- ¼” Nuts
16- ¼” Lock Washers
NOTE:
Stainless steel or DURA-CON® hardware provided.
*DURA-CON® is a corrosion resistant coating.
DURA-CON®: Problem of thread-galling is eliminated.
Feedhorn to Collar & LNB
3-1/4” x 3/4" Bolts
3-1/4" Lock Washers
3-1/4" Nuts
(LNB to Feed)
20-1/4” x 3/4" Bolts
20- 1/4" Nuts
20- 1/4” Lock Washers Heavy Duty Feed Struts
C14F or C24
1- Set of 4 Strut s
1- Colla r (C, Ku )
1 2 - 5/16” Lock Washers & Nuts
4- 2' x 2 ' Angle Bracket s
4- 5/16” x 1 ½” Bolts
8- 5/16” x 2 ¼” Bolts
Back Brace Length
3.0m- 37” Long
3.7m- 45” Long
3.8m- 47” Long
4.2m- 55” Long
4.5m- 62.5” Long
5.0m- 68.5” Long
Ku4FL: 3PC
Add to C14F
3- Section to 3pc collar
3 8-32 x 1” Bolts
3PC Collar to Horseshoe
3 8-32 x ¾” Bolts
3- #8 Fender Washers
3 8-32 Nuts Power Declination
1- ½” x 3 ½” Bolt
1- ½” Nut
1- ½” Lock Washer
1- ¾” x 2 ½” Bolt
1- ¾” Lock Washer
1- ¾” Nut
2- ¾” Washers
If you have upgraded to an 8PC 3.7M sectional antenna please
refer to the tables below for additional hardware needed.
Template Rib Hardware: Sectional
Antenna Size ¼” x ¾” Bolts ¼” Lock Washers ¼” Nuts
3.7M 104 104 104
Splice Straps: Sectional
Antenna Size Splice Straps ¼” x ¾” Bolts ¼” Lock Washers ¼” Nuts
3.7M 8 16 16 16
Template Rib Hardware: Sectional
Antenna Size ¼” x ¾” Bolts ¼” Lock Washers ¼” Nuts
3.0M 44 44 44
3.7M 52 52 52
3.8M 56 56 56
4.2M 120 120 120
4.5M 136 136 136
5.0M 136 136 136
