SFBD-155E2J1RM

DELTA ELECTRONICS, INC.

1 Revision:

S0

12/20/2006

www.deltaww.com

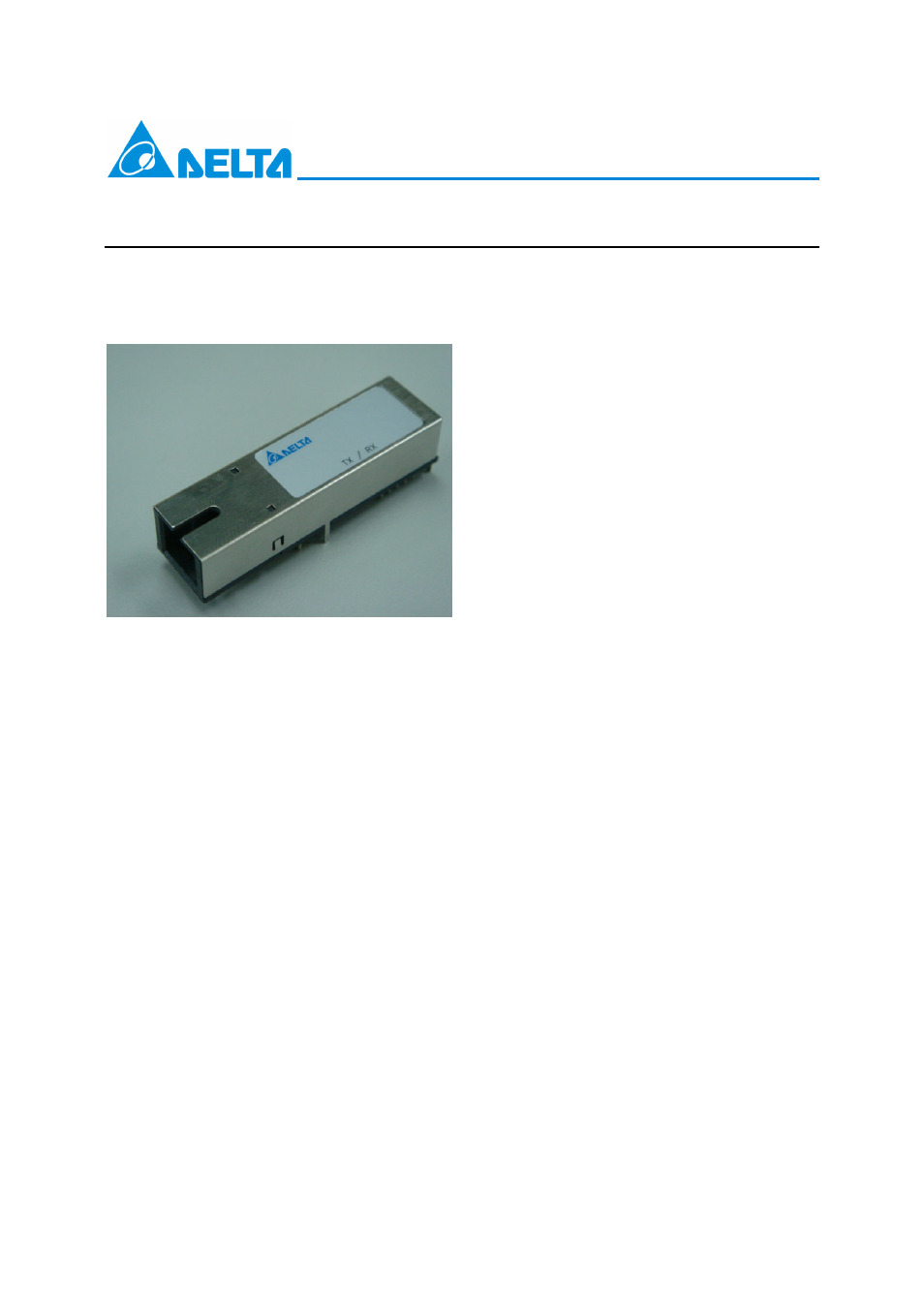

Small Form Factor Bi-Directional Transceiver Module

for Fast Ethernet, ATM, SONET OC-3/SDH STM-1

FEATURES

RoHS compliant

2x5 Pin SFF Package with SC Receptacle

Single Mode Fiber, Bi-Directional
Transmission with 1310nm Transmitter and
1550nm Receiver

Link Distance up to 15km

Single +3.3V power supply and PECL logic
interface

Wave Solderable and Aqueous Washable

Bellcore GR-468 compliant

Laser Class 1 Product which comply with the
requirements of IEC 60825-1 and IEC 60825-2

Description

DELTA’s SFF Bi-Directional transceiver is

designed for point-to-point Bi-Directional Optical
Network transmission. The module consists
multiple quantum well laser, InGaAs PIN,
Preamplifier and WDM filter in a high-integrated
optical sub-assembly, and it receives up to
155Mbps of continuous data at 1550nm, and
transmits 155Mbps of continuous data at 1310nm.

The module is contained in a 2x5 SFF

industry standard package with a SC receptacle
connector, and support LVTTL transmitter disable
input, LVPECL electrical signal Interface and
receiver signal detect output.

Application

TTC TS-1000

ITU-T G.985

IEEE 802.3ah 100BASE-BX/ Fast Ethernet

SONET OC-3/SDH STM-1/ ATM Network

FTTx Broadband Access System

Performance

SFBD-155E2J1RM data link up to 15km in
9/125um single mode fiber.
